| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3363 018 |
| Series: | C091 M16-A |
| Gender: | Female |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 5 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Mating Type: | Screw |
| Mating Cycles: | 1000 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 300 V |
| SKU: | AMET 3363 018 |

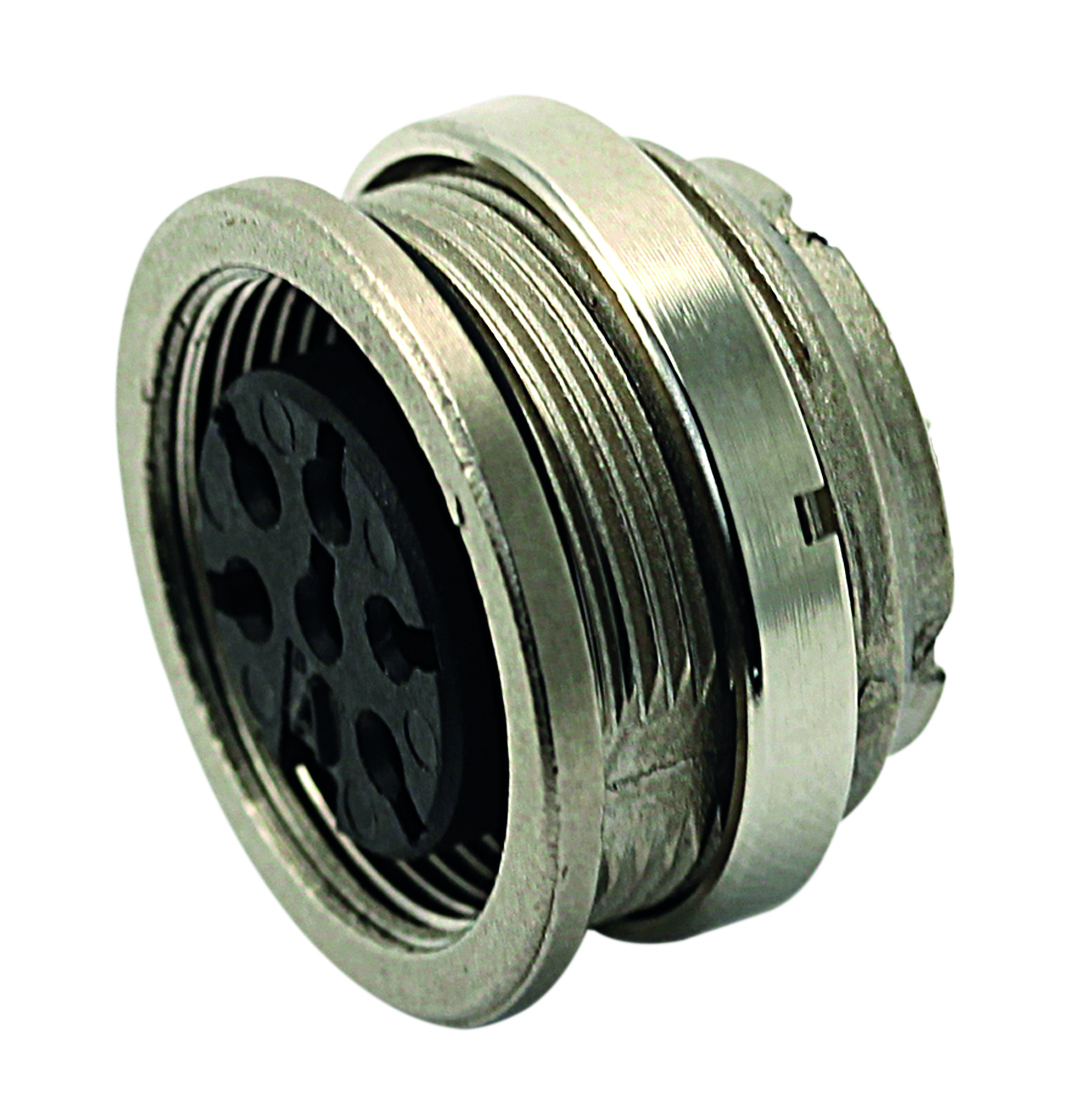

T 3363 018
Specifications
Detailed Description
Introducing the T 3363 018, a high-performance FRONT MOUNTING FEMALE RECEPTACLE from the renowned C091 M16-A series. Designed for rugged environments, this connector features a durable Zinc Die Cast housing ensuring reliable performance. With 5 gold-plated contacts and a maximum operating temperature of 100°C, it guarantees optimal conductivity even in demanding conditions. The IP40 rating offers protection against dust, while the shielded construction enhances signal integrity. Suitable for panel mounting and equipped with a screw mating system, it allows for secure and easy installation. With a 1000-cycle mating lifespan, this connector is built for long-term use. Perfect for applications requiring a current rating of 7A and voltage rating of 300V, it meets the highest standards of quality and performance in the field of Circular DIN Connectors. The T 3363 018 is the ultimate solution for your connectivity needs.
