| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3363 218 |
| Series: | C091 M16-A |
| Gender: | Female |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 5 |
| Mount Type: | Panel Mount, PCB Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Mating Type: | Screw |
| Mount Angle: | Right Angle |
| Mating Cycles: | 1000 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 300 V |
| SKU: | AMET 3363 218 |
T 3363 218
Specifications
Detailed Description

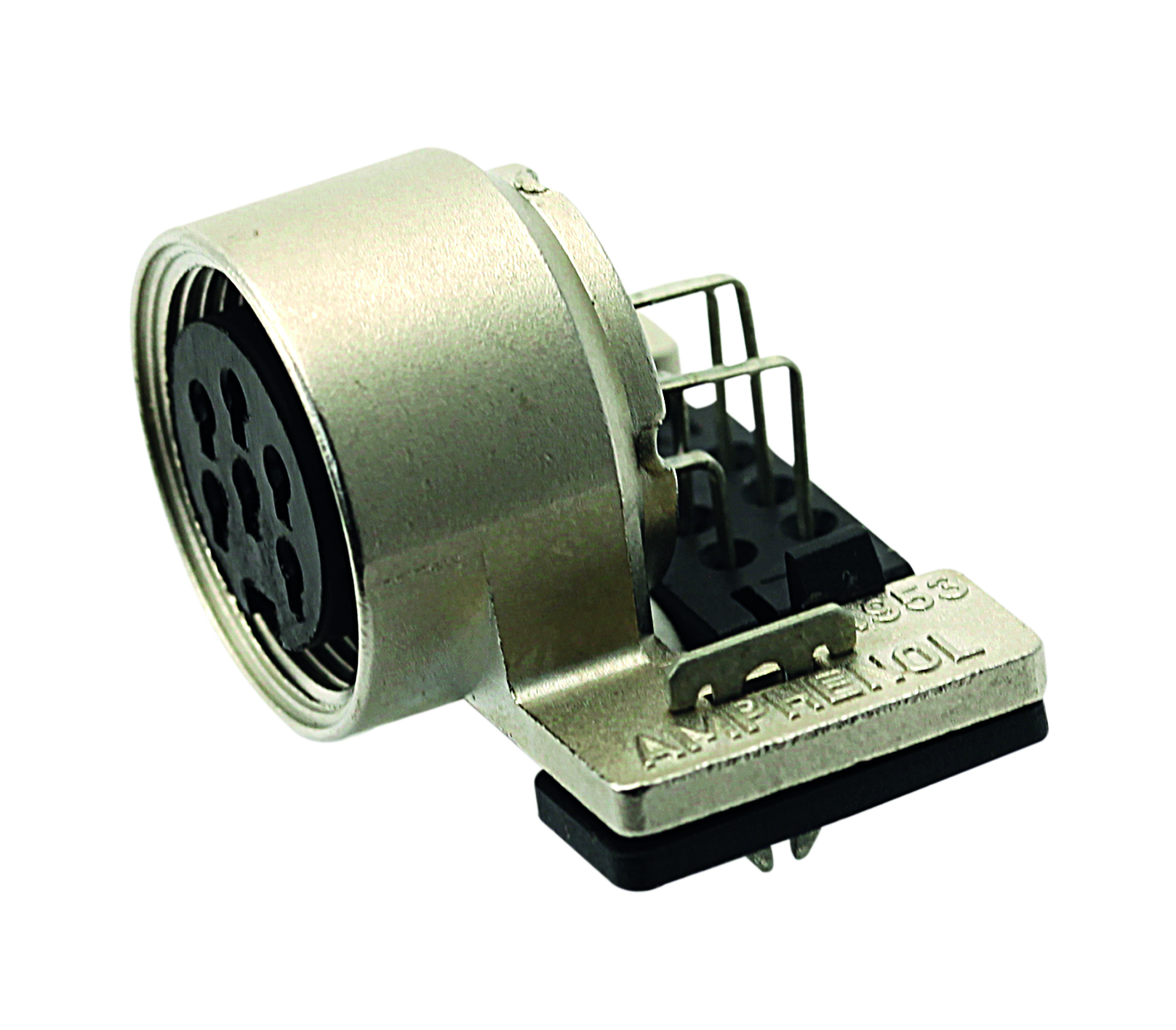

Introducing the T 3363 218, a high-quality PCB Flange Mounting Female Receptacle from the C091 M16-A series. This durable connector features a zinc die-cast housing and gold-plated contacts, ensuring reliable performance in various environments. With five contacts and a current rating of 7A, it is ideal for power and signal transmission. The IP40 rating guarantees protection against dust and debris, while the RoHS compliance reflects our commitment to environmental responsibility. Suitable for panel and PCB mounting with solder termination, it offers versatility in installation. The right-angle mount and shielded design enhance connectivity, making it a perfect choice for industrial applications. With a wide operating temperature range of -40°C to 100°C and a voltage rating of 300V, this connector is designed to meet your connectivity needs with utmost efficiency and durability.
