| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3375 502 |
| Gender: | Female |
| Shielded: | No |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 5 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3375 502 |
T 3375 502
Specifications
Detailed Description

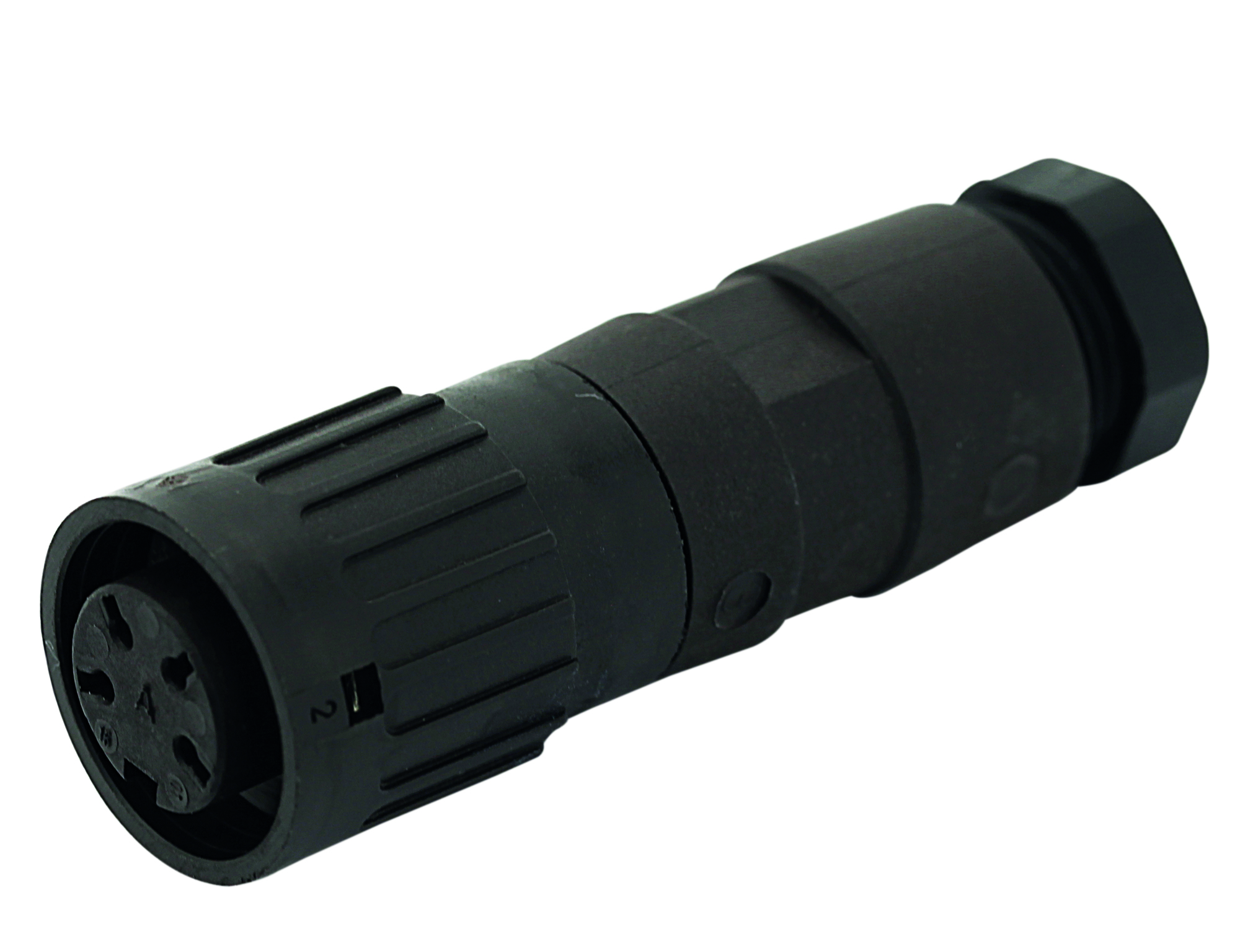

Introducing the T 3375 502 Female Cable Connector WI B, a high-quality connectivity solution designed for reliable performance in demanding environments. Constructed with a durable Die Cast Zinc housing, this connector ensures secure and stable connections. With 5 contacts and a cable mount design, it offers versatility in various applications. The solder termination method and silver contact plating guarantee excellent conductivity. Operating smoothly in temperatures ranging from -40°C to 100°C, it is suitable for both indoor and outdoor use with an IP40 rating. The M16 shell size and bayonet mating type facilitate quick and easy installation. With a straight mount angle, it seamlessly integrates into your setup. Offering a maximum current rating of 7A at 250V/300V, it meets high-performance standards. RoHS compliant and with a 500-cycle mating life, this connector is not only efficient but also environmentally friendly. Perfect for use in Circular DIN Connectors and other industrial applications, the T 3375 502 is a reliable choice for your connectivity needs.
