| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3400 038 |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Gold |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 6 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3400 038 |

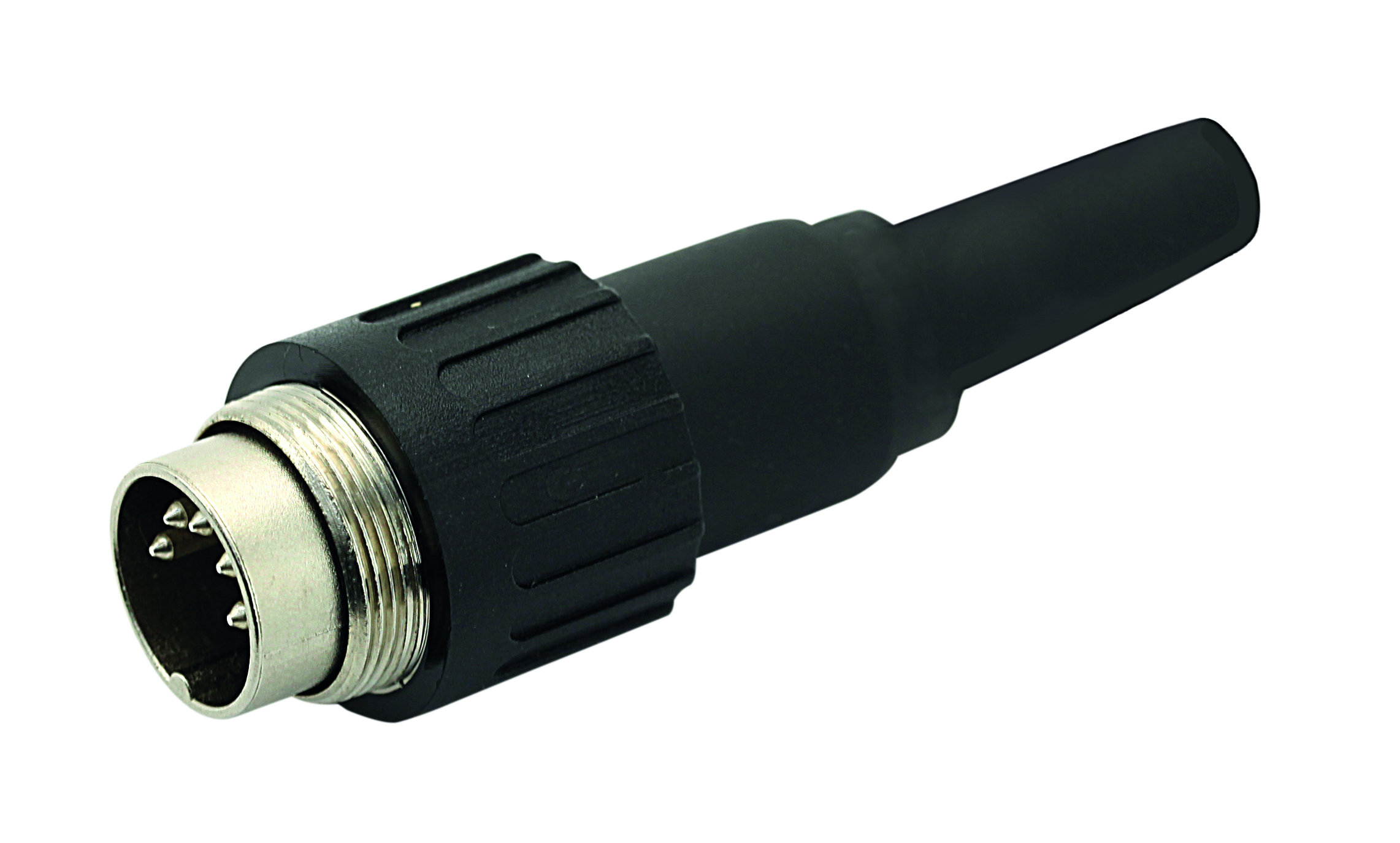

T 3400 038
Specifications
Detailed Description
Introducing the T 3400 038 Male Cable Connector, a high-performance solution for secure and reliable connectivity. Engineered with precision, this connector features a durable Die Cast Zinc housing, ensuring longevity in demanding environments. With 6 gold-plated contacts and a solder termination method, it guarantees efficient signal transmission. Operating flawlessly in temperatures ranging from -40°C to 100°C, and with an IP40 rating for protection against dust, this connector is ideal for a wide range of applications. Its M16 shell size, straight mount angle, and screw mating type offer ease of installation. Designed for longevity, it boasts a mating cycle of 1000 cycles. Shielded for enhanced signal integrity, and compatible with 20 AWG wire, it can handle a current rating of 7A and voltage ratings of up to 250V and 300V. Perfect for use in Circular DIN Connector setups, this product exemplifies quality and performance in the realm of connectivity.
