| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3400 058 |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Right Angle |
| Mating Cycles: | 1000 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Gold |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 6 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3400 058 |

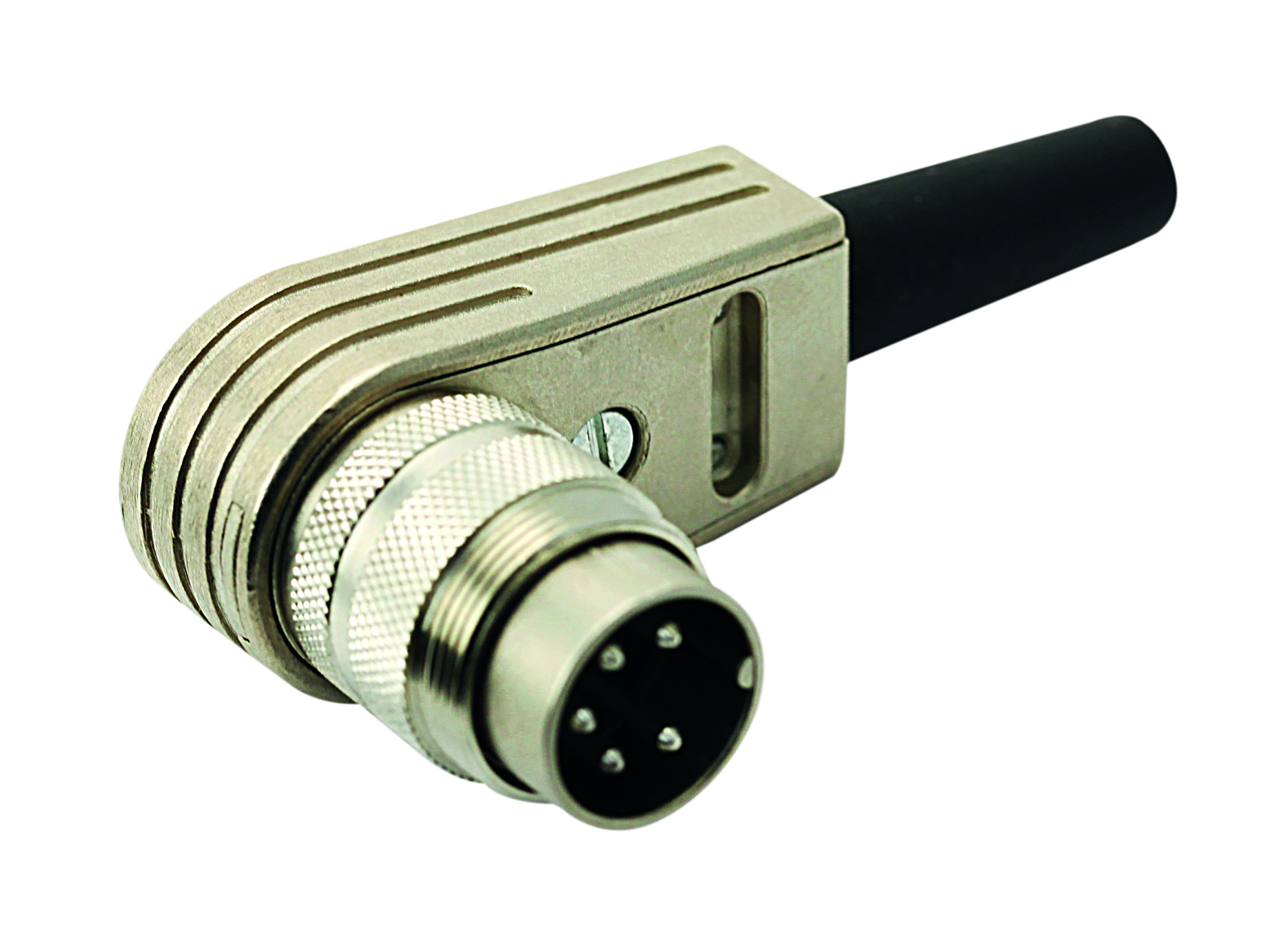

T 3400 058
Specifications
Detailed Description
Introducing the T 3400 058, a rugged and reliable male cable connector designed for demanding industrial applications. Constructed with durable die-cast zinc housing, this connector ensures long-lasting performance even in harsh environments. Featuring six gold-plated contacts and a solder termination method, it guarantees secure and efficient connectivity. With a wide operating temperature range from -40°C to 100°C and an IP40 rating for dust protection, it is suitable for use in various conditions. The M16 shell size, right-angle mount type, and screw mating make installation easy and convenient. Shielded for added protection, this connector accommodates 20 AWG wire and has a current rating of 7A and voltage ratings of 250V and 300V. With a mating cycle of 1000, it offers durability and reliability. Perfect for applications in the aerospace, military, or industrial sectors, the T 3400 058 is a high-performance solution for your connectivity needs.
