| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3403 000 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 300 V |
| Contact Plating: | Silver |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 6 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-A |
| SKU: | AMET 3403 000 |
T 3403 000
Specifications
Detailed Description

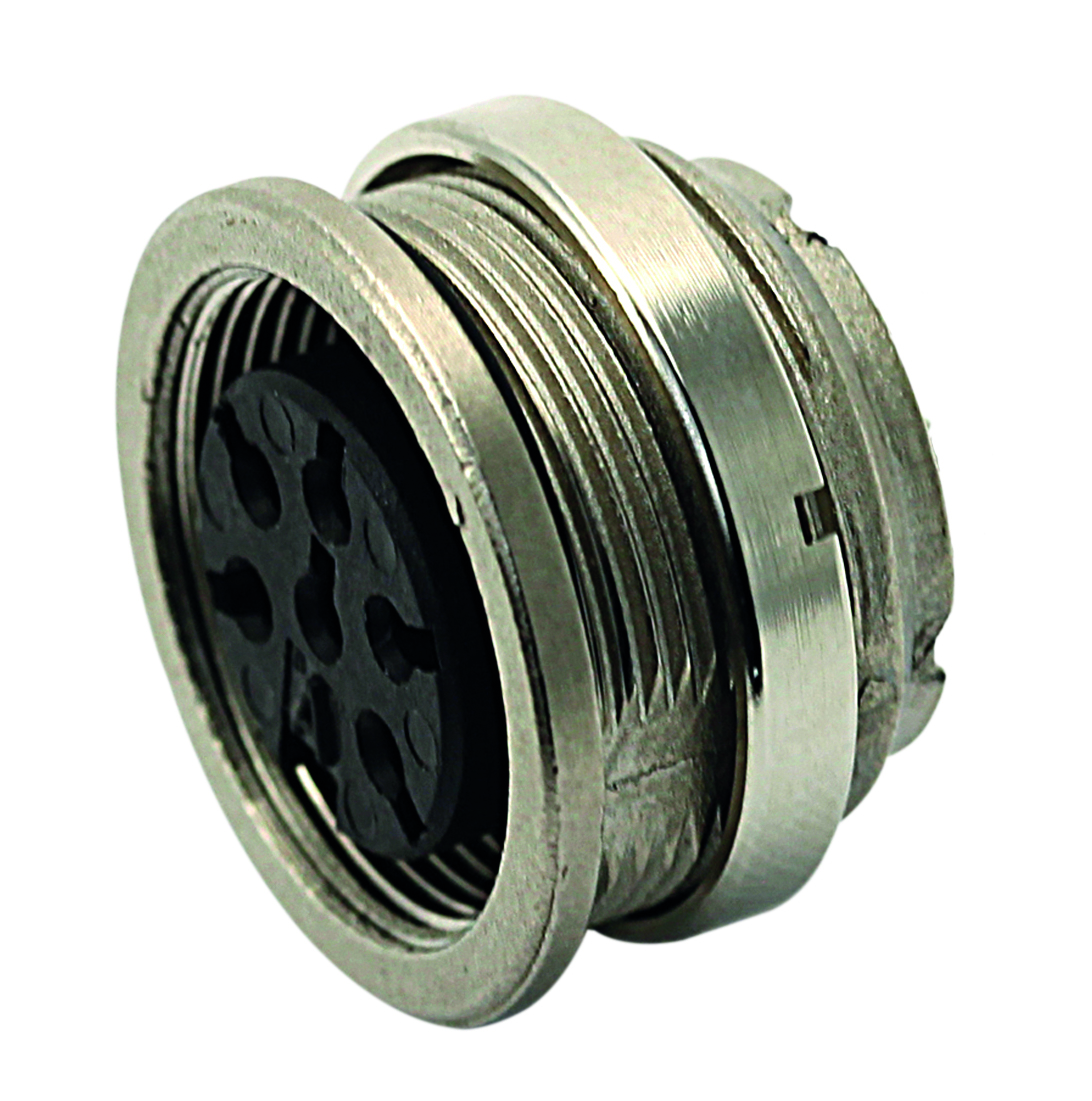

Introducing the T 3403 000, a high-performance FRONT MOUNTING FEMALE RECEPTACLE from the C091 M16-A series. This robust connector, designed for panel mounting, features a durable Zinc Die Cast housing for reliable performance in industrial environments. With 6 silver-plated contacts and a solder termination method, it ensures secure and efficient connectivity. Operating flawlessly in temperatures ranging from -40°C to 100°C, with an IP40 rating for protection against dust and debris. The mating type is screw, offering ease of installation with 500 mating cycles for longevity. Shielded for enhanced signal integrity, compatible with 20 AWG wire, and capable of handling currents up to 7A at 300V. Rest assured of its quality, as it is RoHS compliant. Perfect for applications in Circular DIN Connectors, this product is a dependable choice for your connectivity needs.
