| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3403 150 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 28 - 18 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Screw |
| Current Rating: | 7 A |
| Voltage Rating: | 300 V |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 6 |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-A |
| SKU: | AMET 3403 150 |
T 3403 150
Specifications
Detailed Description

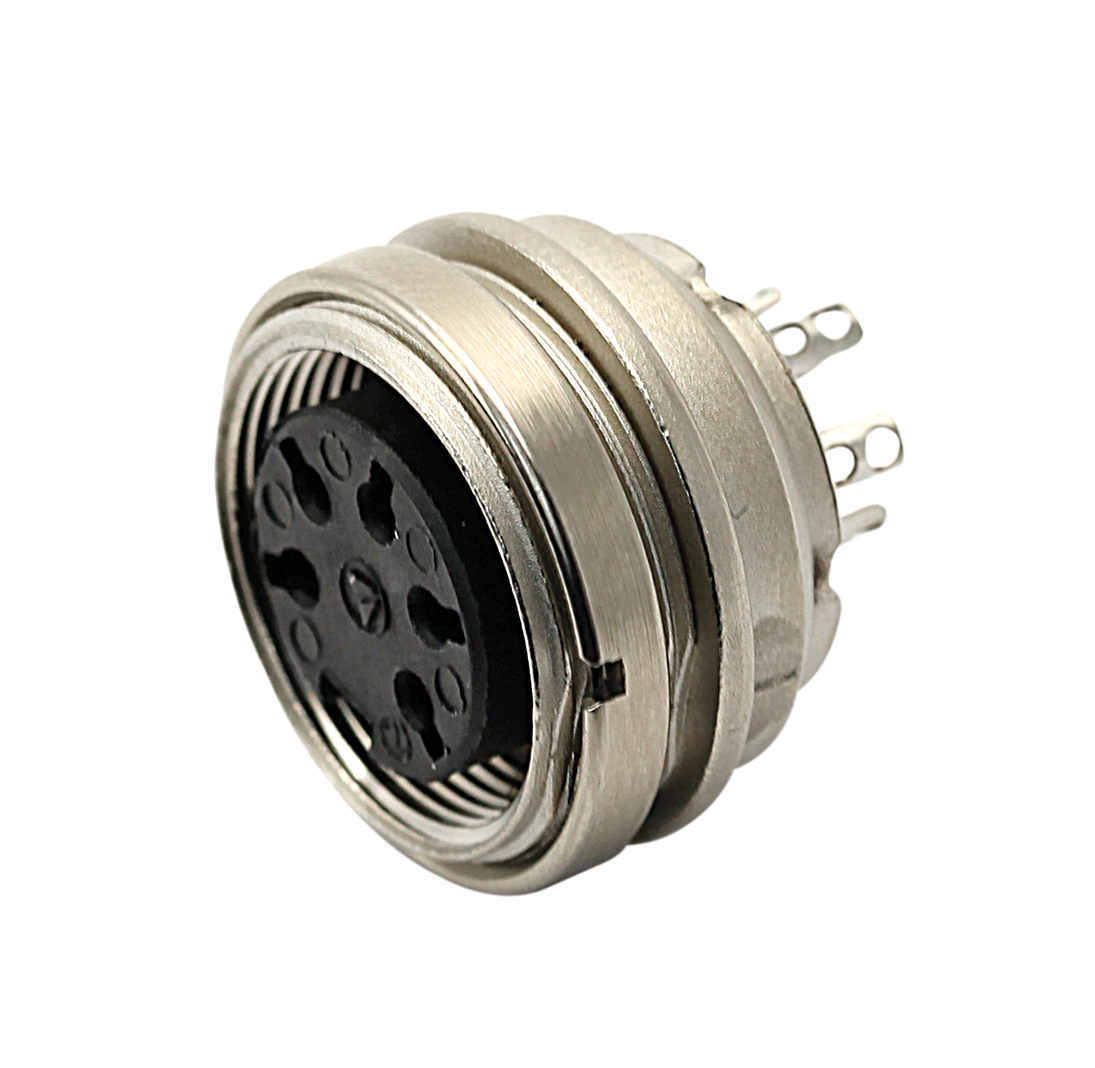

The T 3403 150 Rear Mounting Female Receptacle, part of the C091 M16-A series, is a versatile circular connector designed for efficient panel mounting in various applications. Constructed with a durable Zinc Die Cast housing, this connector ensures reliable performance even in harsh environments. With six contacts and a crimp termination method, it allows for secure and efficient connectivity. Rated for a wide temperature range from -40°C to 100°C and boasting an IP40 ingress protection rating, it offers durability and resilience. Featuring a screw mating type and shielded design, it ensures stable connections with effective EMI/RFI protection. Suitable for wire sizes ranging from 28 to 18 AWG, with a current rating of 7A and voltage rating of 300V, this connector is ideal for demanding industrial and commercial applications where robust and high-quality connectivity is essential.
