| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3424 502 |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 6 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Shielded: | No |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| SKU: | AMET 3424 502 |

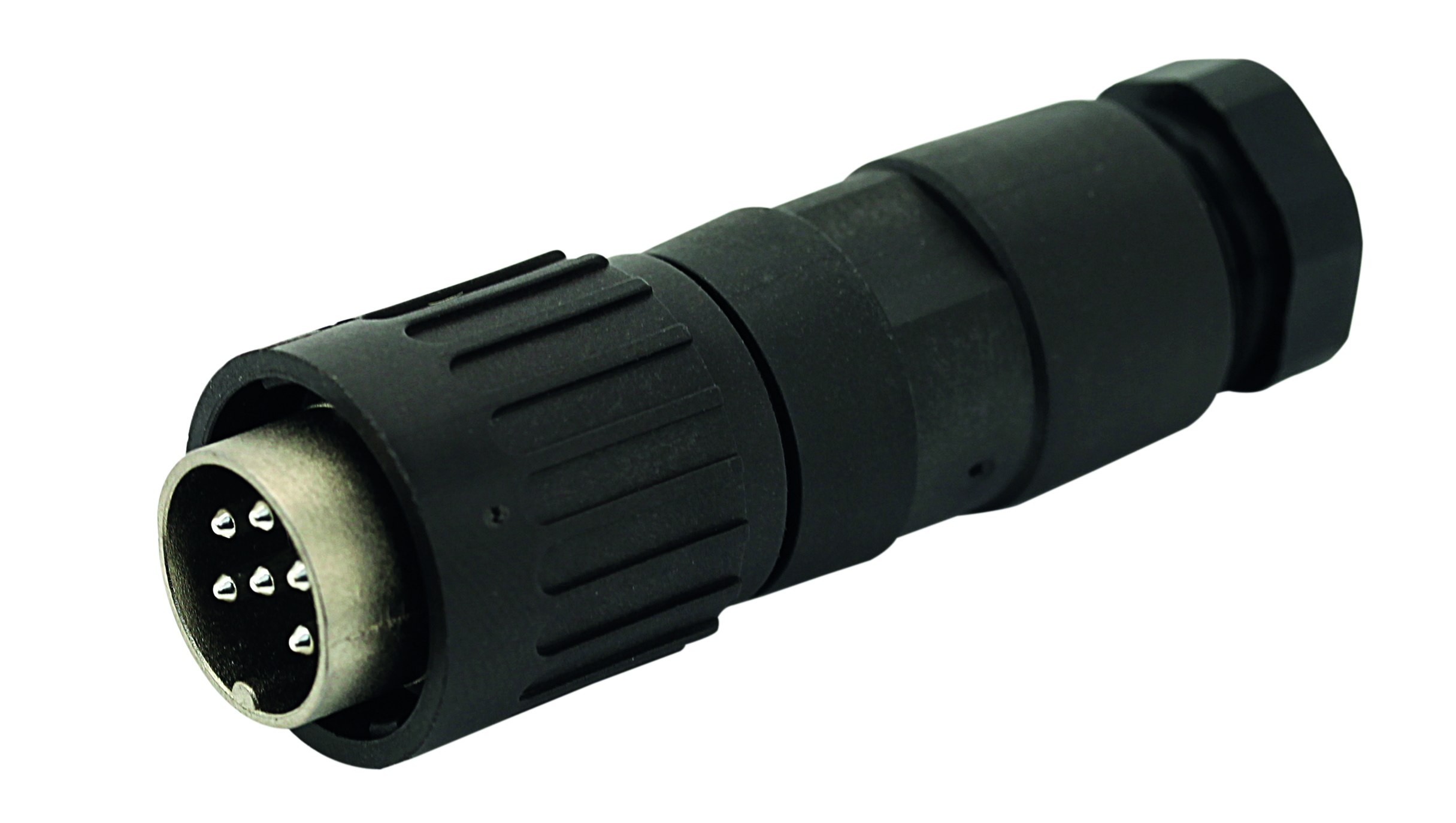

T 3424 502
Specifications
Detailed Description
Introducing the T 3424 502, a rugged male cable connector designed for reliable signal transmission in demanding environments. Constructed from high-quality die-cast zinc, this connector features 6 contacts for secure connections. With a cable mount and solder termination method, installation is quick and easy. The silver contact plating ensures excellent conductivity, while its wide operating temperature range of -40°C to 100°C guarantees performance in extreme conditions. Rated IP40 for dust protection, this M16 shell size connector is ideal for industrial applications. Its bayonet mating type and straight mount angle facilitate efficient assembly. With a durability of up to 500 mating cycles, this connector is built to last. Suitable for 20 AWG wire, it has a current rating of 7A and voltage ratings of 250V and 300V. Whether you're in the aerospace, automotive, or telecommunications industry, the T 3424 502 is the perfect solution for your connectivity needs.
