| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3424 504 |
| Gender: | Male |
| Shielded: | No |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 6 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3424 504 |
T 3424 504
Specifications
Detailed Description

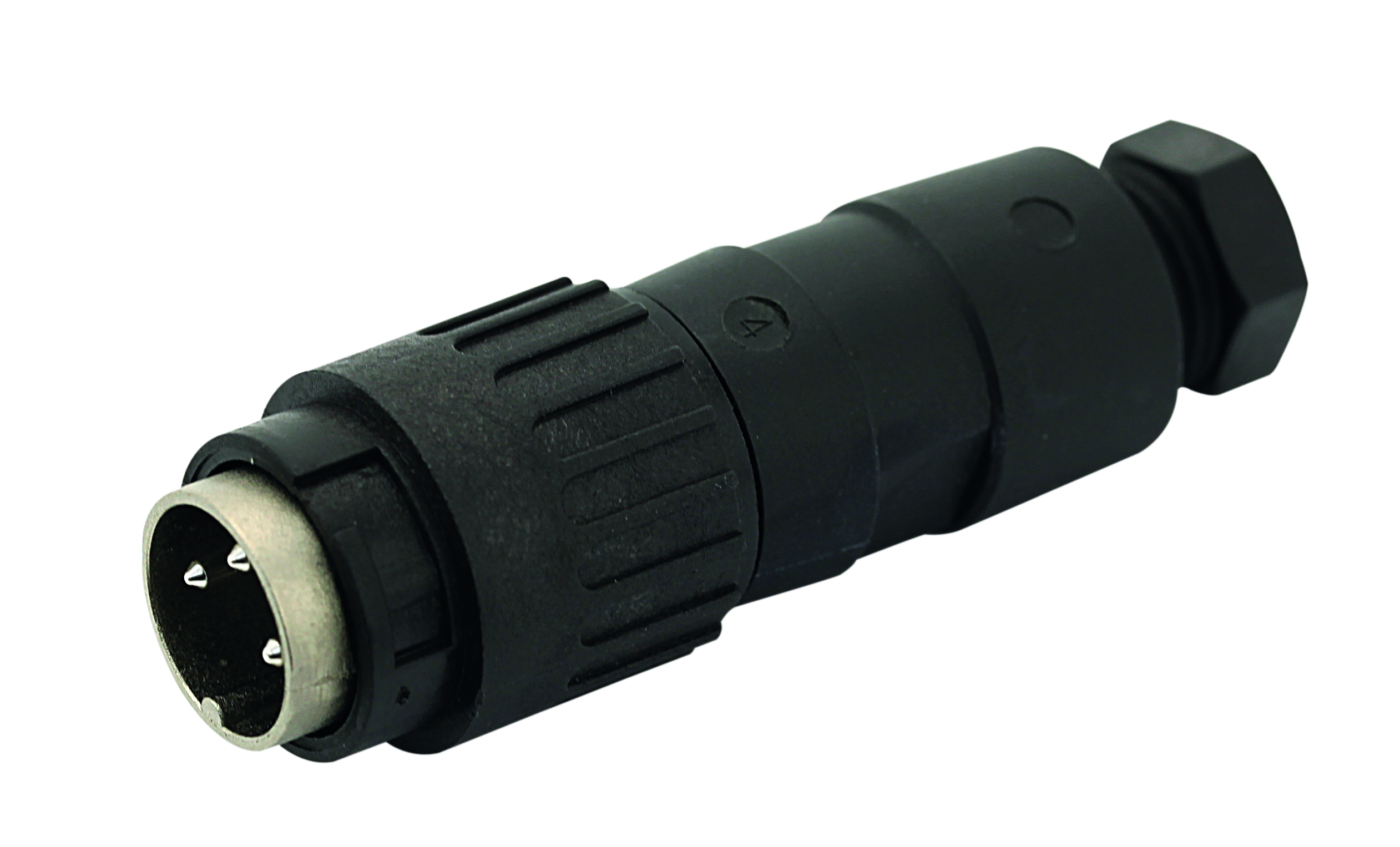

Introducing the T 3424 504 Male Cable Connector, a reliable and durable solution for your connectivity needs. Constructed with high-quality Die Cast Zinc housing, this connector ensures long-lasting performance in various environments. Featuring six contacts and a cable mount design with solder termination, it offers secure and efficient connectivity. The silver contact plating guarantees excellent conductivity, while the wide operating temperature range from -40°C to 100°C ensures suitability for diverse applications. With an IP40 rating, M16 shell size, and bayonet mating type, it provides easy and convenient installation. Rated for 7A current and 250V/300V voltage, this connector is suitable for a wide range of power and signal transmission tasks. Whether for industrial, commercial, or personal use, the T 3424 504 is the perfect choice for high-quality circular DIN connectors.
