| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3424 518 |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 6 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Shielded: | No |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| SKU: | AMET 3424 518 |

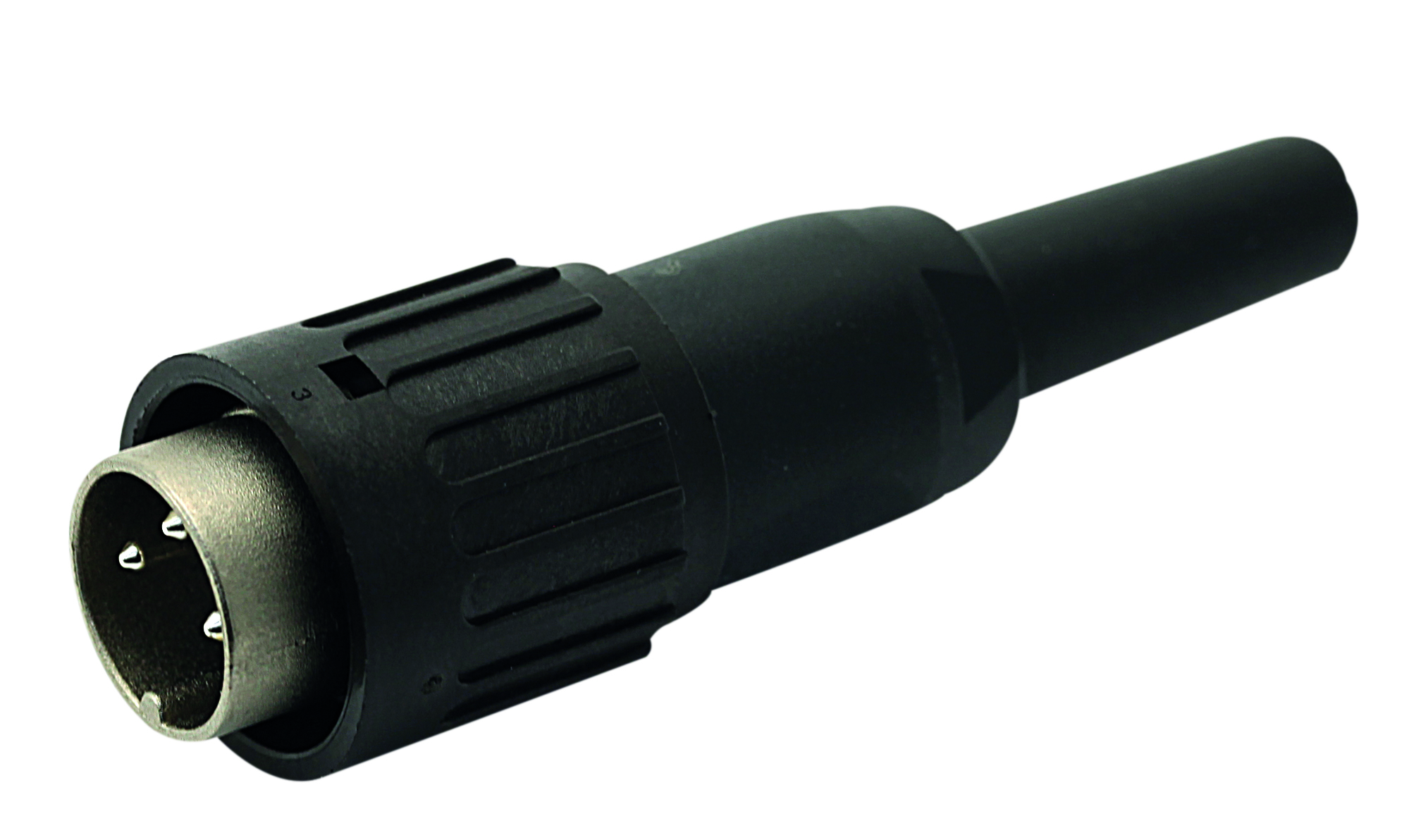

T 3424 518
Specifications
Detailed Description
Introducing the T 3424 518 Male Cable Connector, engineered for reliable connectivity in demanding environments. Constructed with robust Die Cast Zinc housing and featuring 6 gold-plated contacts, this connector ensures secure and low-resistance signal transmission. With a solder termination method and a cable mount design, installation is quick and efficient. Operating seamlessly in temperatures ranging from -40°C to 100°C, and with a voltage rating of 250V, this connector is suitable for a wide range of applications. The IP40 rated shell provides protection against dust and debris. Designed for M16 shell size and bayonet mating, it offers easy and secure connections. With a straight mount angle and a durability of 1000 mating cycles, this connector is built to last. Perfect for use in Circular DIN Connectors, the T 3424 518 is a high-performance solution for your connectivity needs.
