| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3425 502 |
| Gender: | Female |
| Shielded: | No |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 6 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3425 502 |

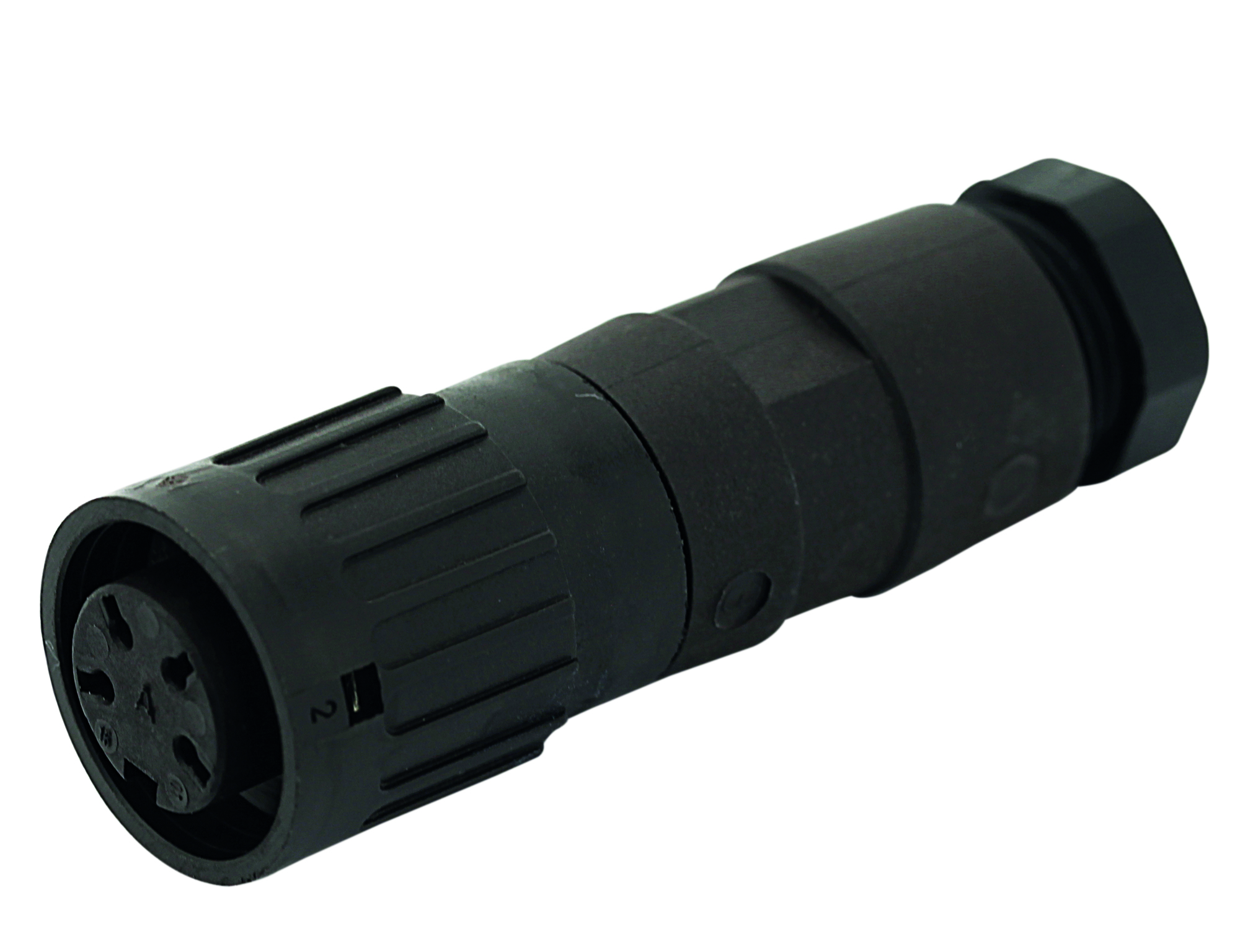

T 3425 502
Specifications
Detailed Description
Introducing the T 3425 502 Female Cable Connector, a high-quality solution for seamless connectivity. Crafted with precision using Die Cast Zinc housing material, this connector ensures durability and performance. With six contacts and a cable mount design, it offers easy installation in various applications. The solder termination method and silver contact plating guarantee reliable conductivity. Operating efficiently in temperatures ranging from -40°C to 100°C, this connector is built to withstand diverse environments. Its IP40 rating provides protection against dust, while the M16 shell size and bayonet mating type offer secure connections. With a straight mount angle and 500 mating cycles, it delivers long-lasting functionality. Suitable for 20 AWG wire size, it boasts a current rating of 7A and voltage ratings of 250V and 300V. Ideal for Circular DIN connectors, this product is a must-have for your connectivity needs. (Character count: 158)
