| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3434 502 |
| Gender: | Male |
| Shielded: | No |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 7 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3434 502 |
T 3434 502
Specifications
Detailed Description

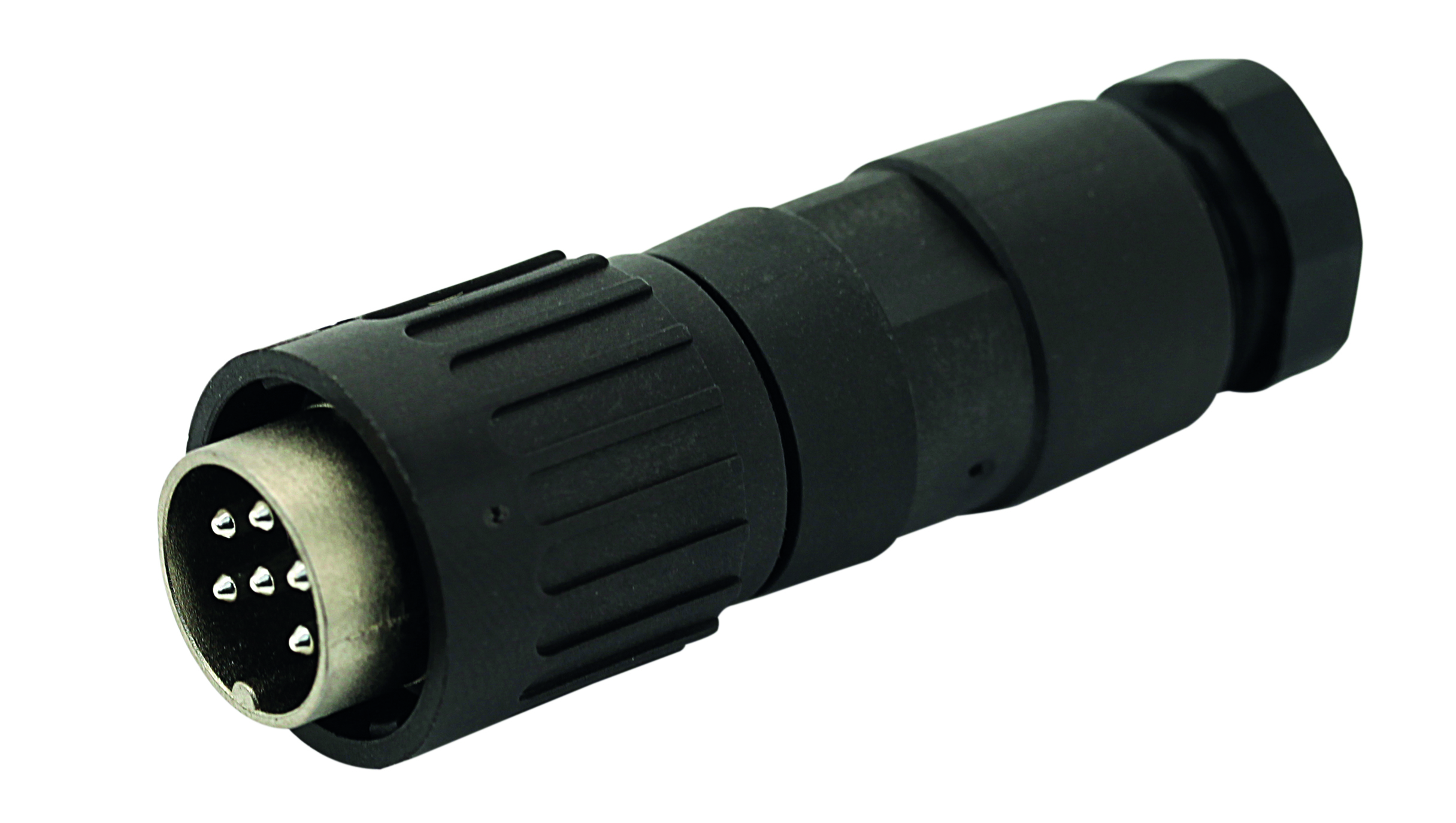

Introducing the MALE CABLE CONNECTOR WITH INTE, T 3434 502, a robust and reliable solution for your connectivity needs. This connector, constructed with high-quality Die Cast Zinc housing material, ensures durability in various operating environments. With seven contacts, it offers ample connectivity options. The Cable Mount design and Solder termination method make installation a breeze. Featuring Silver contact plating, it guarantees excellent conductivity. Operating seamlessly in temperatures ranging from -40°C to 100°C and boasting an IP40 rating, it's suitable for demanding applications. The M16 shell size, Bayonet mating type, and Straight mount angle provide ease of use. With a 500-cycle mating lifespan, it offers long-term performance. While unshielded, it accommodates 20 AWG wire size and supports a current rating of 7A and voltage rating of 250V/300V. Perfect for Circular DIN Connectors and other connectivity needs, the MALE CABLE CONNECTOR WITH INTE, T 3434 502, is a must-have in your toolkit.
