| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3447 500 |
| Series: | C091 M16-B |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 7 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V |
| SKU: | AMET 3447 500 |
T 3447 500
Specifications
Detailed Description

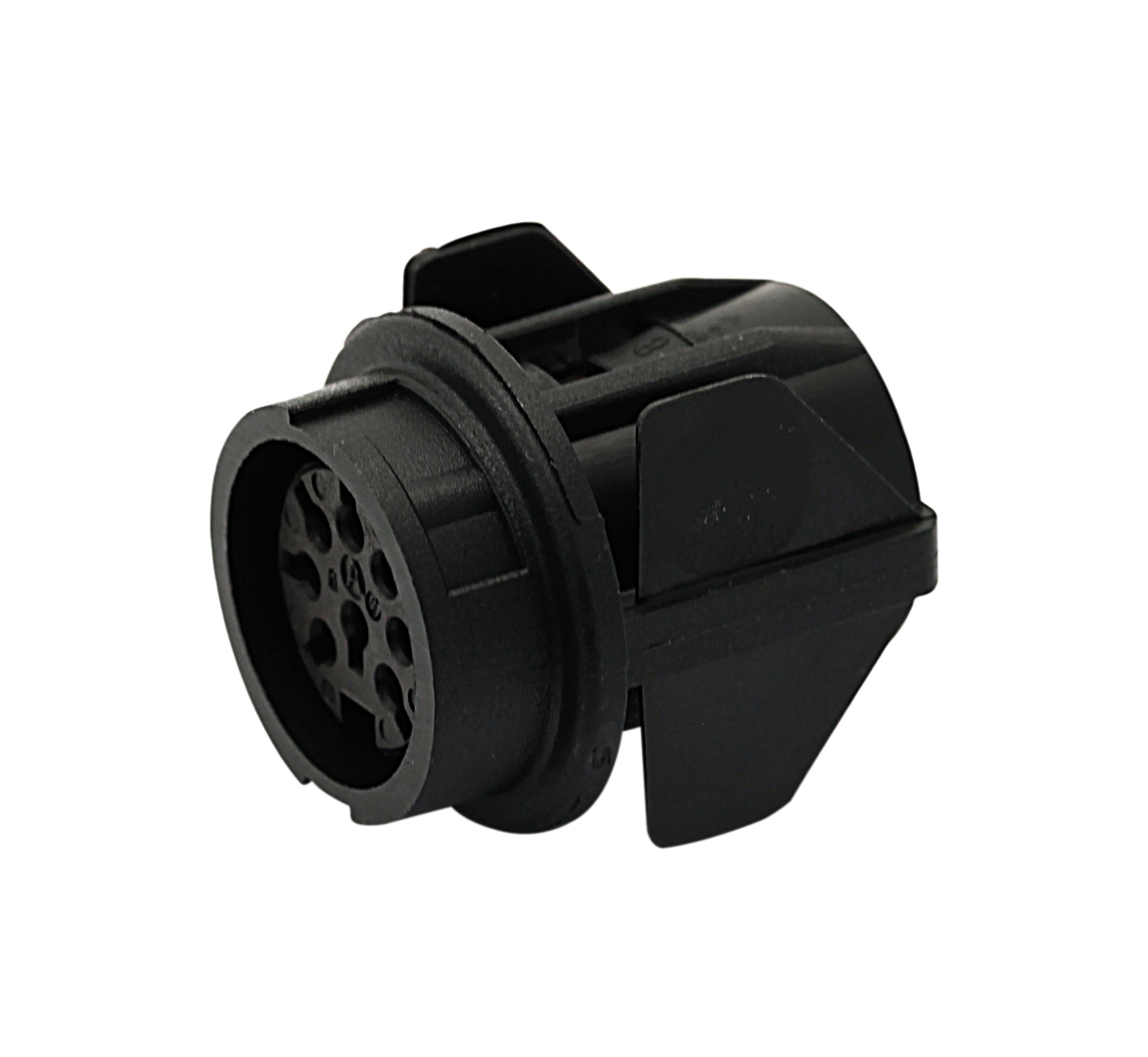

Introducing the T 3447 500, a female Circular DIN Connector designed for high-performance applications. With a straight, full plastic front M housing made of durable die-cast zinc, this connector ensures reliability in various environments. Featuring 7 silver-plated contacts, it guarantees secure and efficient signal transmission. The panel mount and solder termination method offer easy installation. Operating between -40°C to 100°C, with an IP40 rating for dust protection, it is suitable for industrial settings. The bayonet mating type and 500 mating cycles ensure long-term connectivity. With a current rating of 7A and voltage rating of 100V, it meets power transmission needs. Perfect for 20AWG wire, this connector is a vital component in any system requiring robust and high-quality connectivity.
