| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3476 013 |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 7 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| SKU: | AMET 3476 013 |
T 3476 013
Specifications
Detailed Description

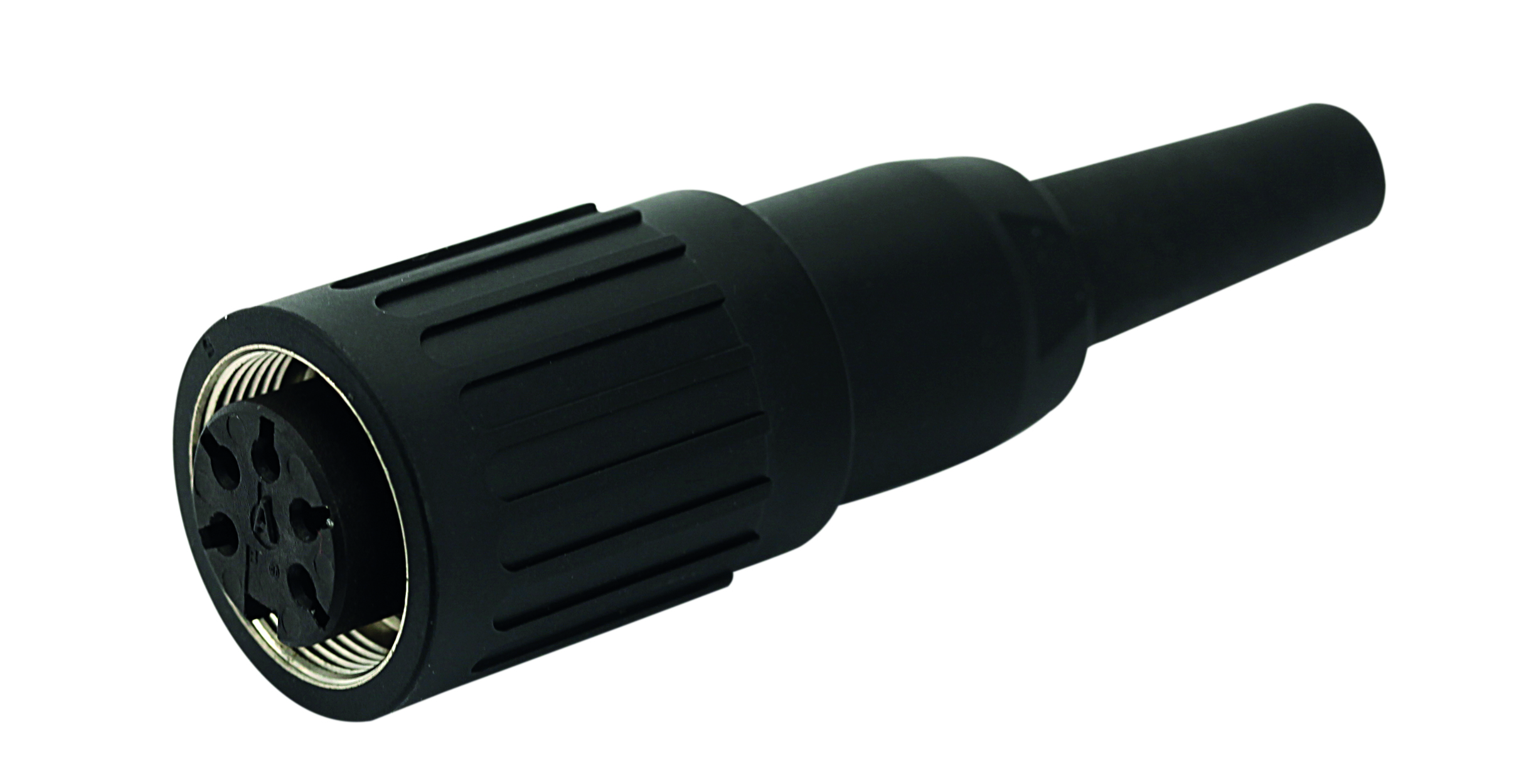

Introducing the T 3476 013 Female Cable Connector, a robust solution for secure and efficient connectivity in industrial environments. Crafted from high-quality Die Cast Zinc, this connector ensures durability and reliable performance. With 7 silver-plated contacts, it offers superior conductivity, ideal for applications requiring a current rating of 7A and voltage ratings of 250V and 300V. The IP40-rated housing provides protection against dust and debris, while its M16 shell size and straight mount angle ensure easy installation. Designed for longevity, this connector boasts a mating cycle of 500, making it a cost-effective choice for your connectivity needs. Whether in aerospace, automotive, or telecommunications, trust the T 3476 013 for seamless and secure connections every time.
