| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3476 018 |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 7 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| SKU: | AMET 3476 018 |
T 3476 018
Specifications
Detailed Description

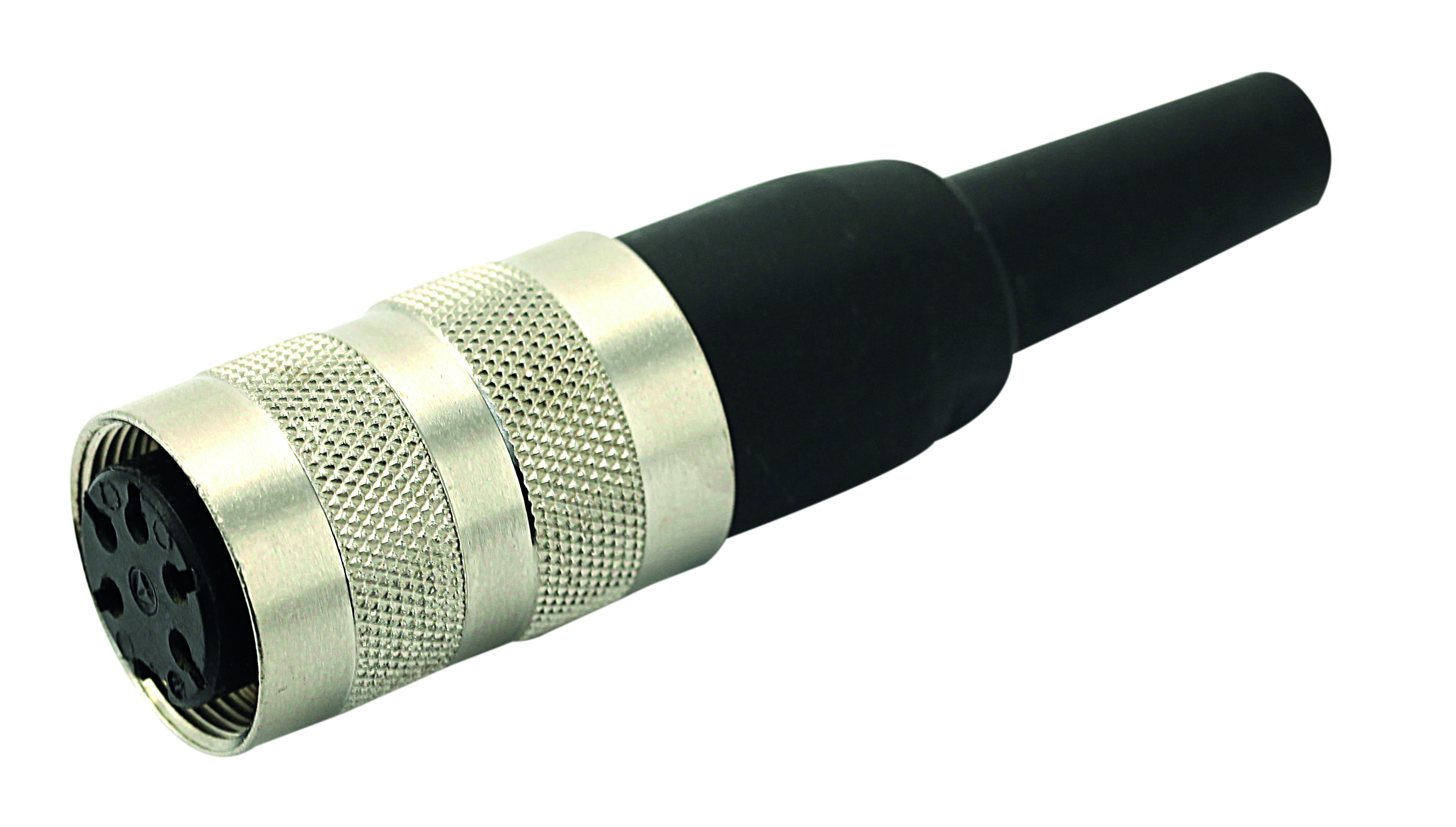

Introducing the C091A Female Circular DIN Connector, SKU T 3476 018, designed for reliable and durable connectivity in demanding environments. Crafted from high-quality Die Cast Zinc, this connector features 7 gold-plated contacts for optimal signal transmission. With a cable mount and solder termination method, it ensures secure attachment. Operating seamlessly in temperatures ranging from -40°C to 100°C and boasting an IP40 rating, it offers robust performance. The M16 shell size, straight mount angle, and shielded construction make it ideal for various applications. With a wire size compatibility of 20 AWG, current rating of 7A, and voltage rating of 250V/300V, it guarantees efficient power delivery. RoHS compliant and capable of 1000 mating cycles, this connector is a dependable solution for industrial and commercial use. Explore the full range of Circular Connectors & Accessories with our T3476018 model.
