| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3477 100 |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 7 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-A |
| SKU: | AMET 3477 100 |

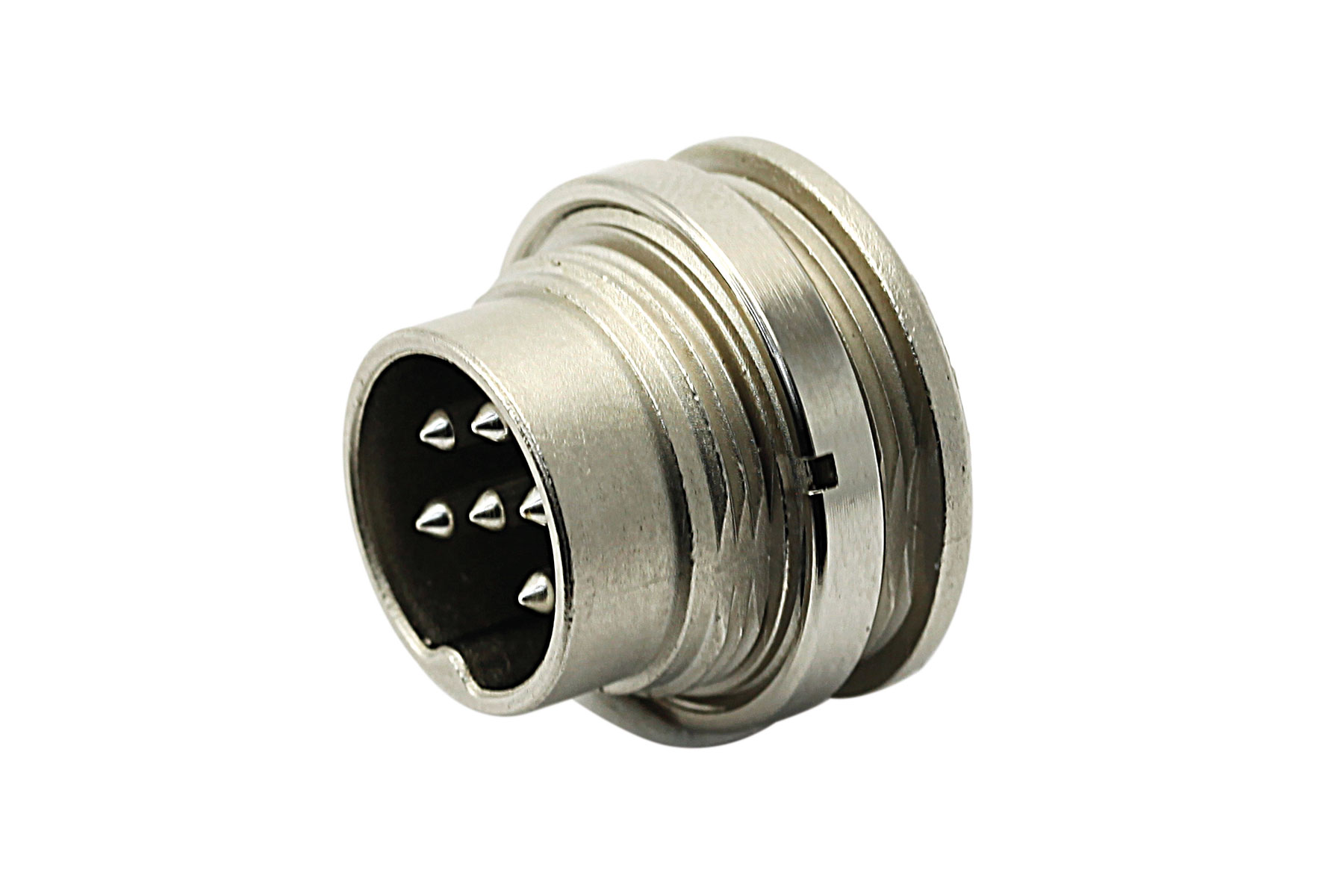

T 3477 100
Specifications
Detailed Description
Introducing the T 3477 100 Rear Mounting Male Receptacle, a crucial component in the C091 M16-A series. This robust connector features a die-cast zinc housing, ensuring durability in various environments. With seven contacts and a panel mount design, it facilitates secure and reliable connections. The solder termination method and silver contact plating guarantee efficient conductivity. Operating between -40°C to 100°C and rated IP40 for protection against solids, this connector is suitable for a wide range of applications. Its screw mating type allows for easy installation, with a lifespan of 500 cycles. Shielded for added safety, it accommodates 20 AWG wire, with a current rating of 7A and voltage rating of 300V. RoHS compliant and meticulously crafted, the T3477100 offers peace of mind in quality and performance.
