| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3478 100 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 300 V |
| Contact Plating: | Silver |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 7 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-A |
| SKU: | AMET 3478 100 |
T 3478 100
Specifications
Detailed Description

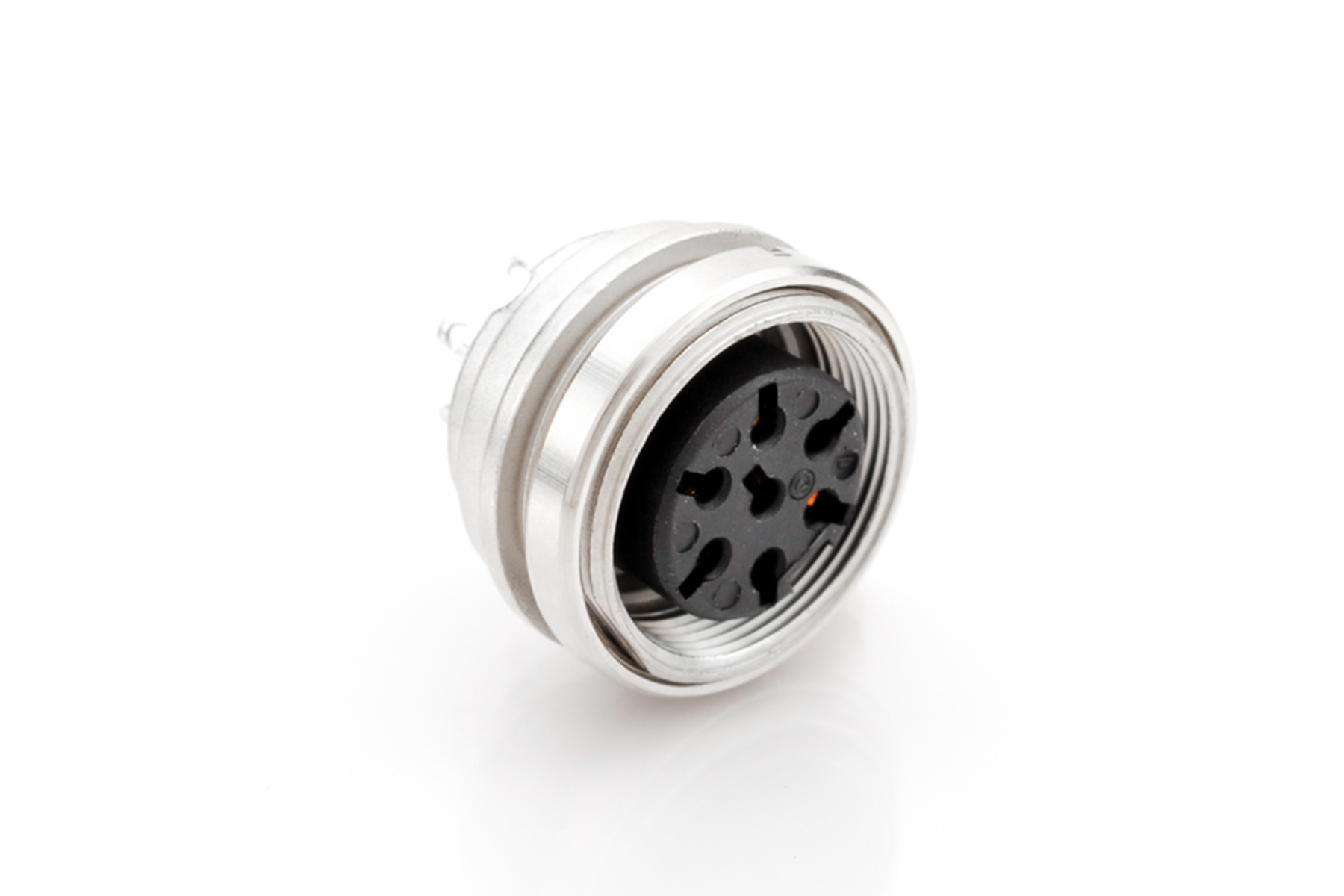

Introducing the C091A Female Connector, part of the rugged C091 M16-A series, designed for reliable connectivity in demanding environments. Crafted from Zinc Die Cast for durability, this panel-mount connector features 7 silver-plated contacts for optimal conductivity. With a wide operating temperature range of -40°C to 100°C and an IP40 rating, it ensures performance in harsh conditions. The screw mating type allows for secure connections, rated for 500 mating cycles. Shielded for added protection, it accommodates 20 AWG wire and offers a current rating of 7A at 300V. RoHS compliant, the C091A is ideal for industrial applications requiring high-quality circular DIN connectors.
