| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3478 300 |
| Series: | C091 M16-A |
| Gender: | Female |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 7 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 300 V |
| SKU: | AMET 3478 300 |

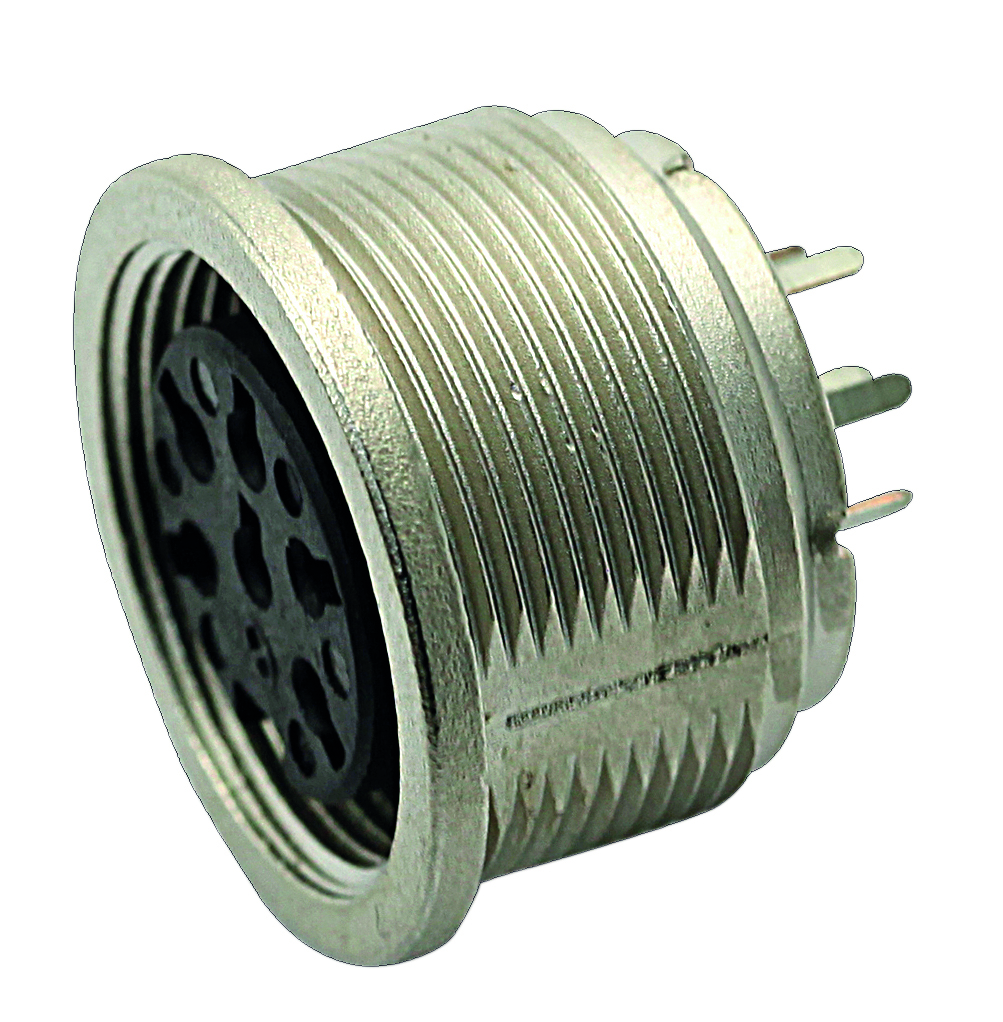

T 3478 300
Specifications
Detailed Description
Introducing the T 3478 300, a rugged and reliable FRONT MOUNTING FEMALE RECEPTAC from the C091 M16-A series. Designed for demanding environments, this connector features a durable Zinc Die Cast housing, ensuring long-lasting performance. With seven contacts and a straight panel mount configuration, it provides secure and stable connections. The termination method of soldering, along with silver contact plating, guarantees efficient conductivity. Rated for temperatures ranging from -40°C to 100°C and boasting an IP40 ingress protection rating, it offers dependable operation even in harsh conditions. The screw mating type and shielded design further enhance its durability. Suitable for 20 AWG wire, it has a current rating of 7A and a voltage rating of 300V, making it ideal for various industrial applications. With a high mating cycle of 500, the T 3478 300 ensures reliable connectivity over extended periods. This connector is a vital component in the Circular DIN Connectors category, meeting the stringent requirements of hi-rel environments. Trust in the acronym T3478300 for robust and efficient connectivity solutions.
