| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3478 400 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 300 V |
| Contact Plating: | Silver |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 7 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-A |
| SKU: | AMET 3478 400 |

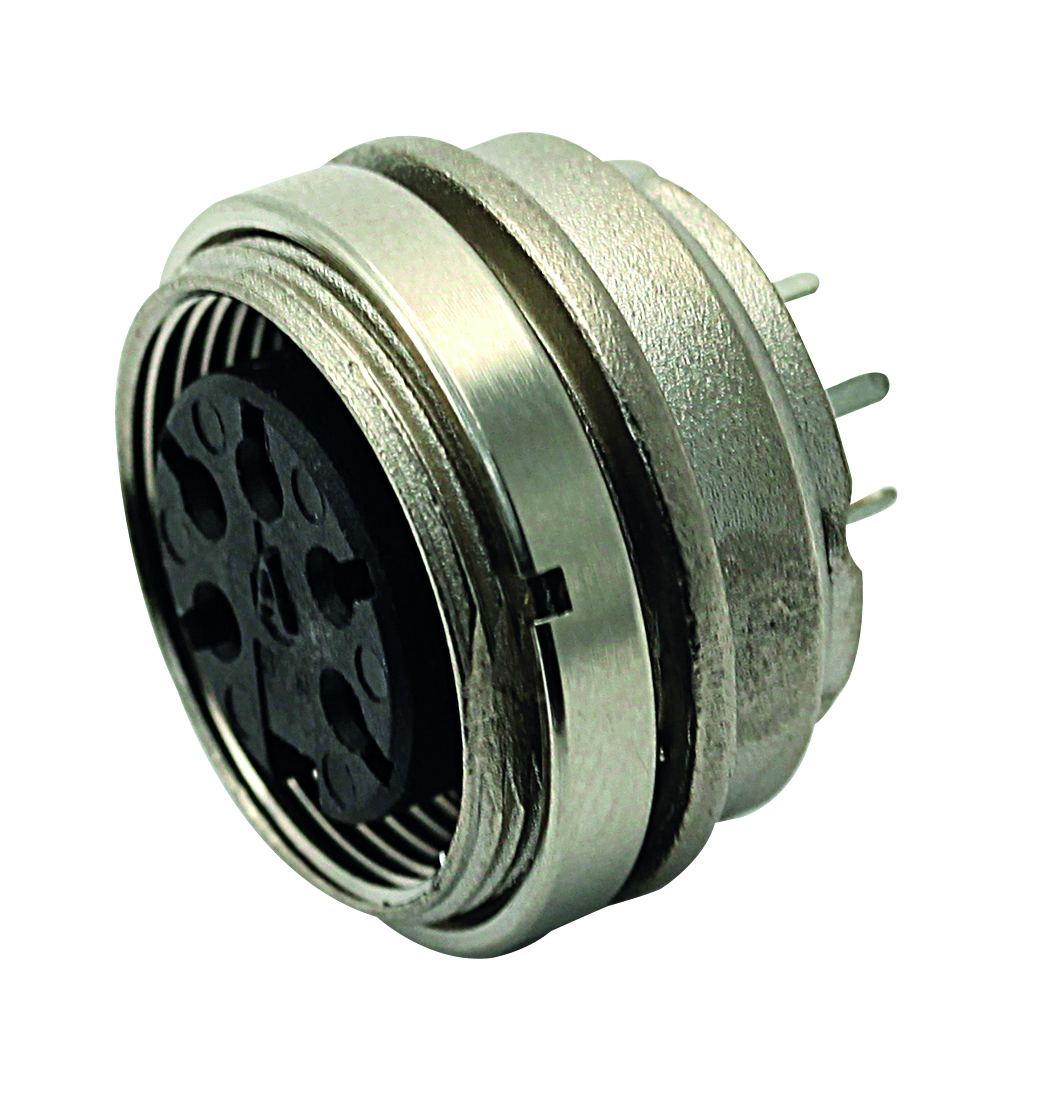

T 3478 400
Specifications
Detailed Description
Introducing the T 3478 400, a Rear Mounting Female Receptacle designed for seamless connectivity in industrial environments. Part of the C091 M16-A series, this connector boasts a durable Zinc Die Cast housing, ensuring longevity and reliability. With 7 contacts and a solder termination method, it guarantees secure electrical connections. Featuring silver contact plating and a wide operating temperature range from -40°C to 100°C, it offers excellent conductivity and performance even in harsh conditions. IP40 rated for protection against dust, and with a straight mount angle, it facilitates easy panel installation. With a 500-cycle mating lifespan, it's built for long-term use. RoHS compliant and suitable for 20 AWG wire with a current rating of 7A and voltage rating of 300V, it meets stringent safety and quality standards. Perfect for Circular DIN connector applications, the T 3478 400 is the ideal choice for demanding industrial connectivity needs.
