| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3505 005 |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 8 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V, 250 V |
| SKU: | AMET 3505 005 |

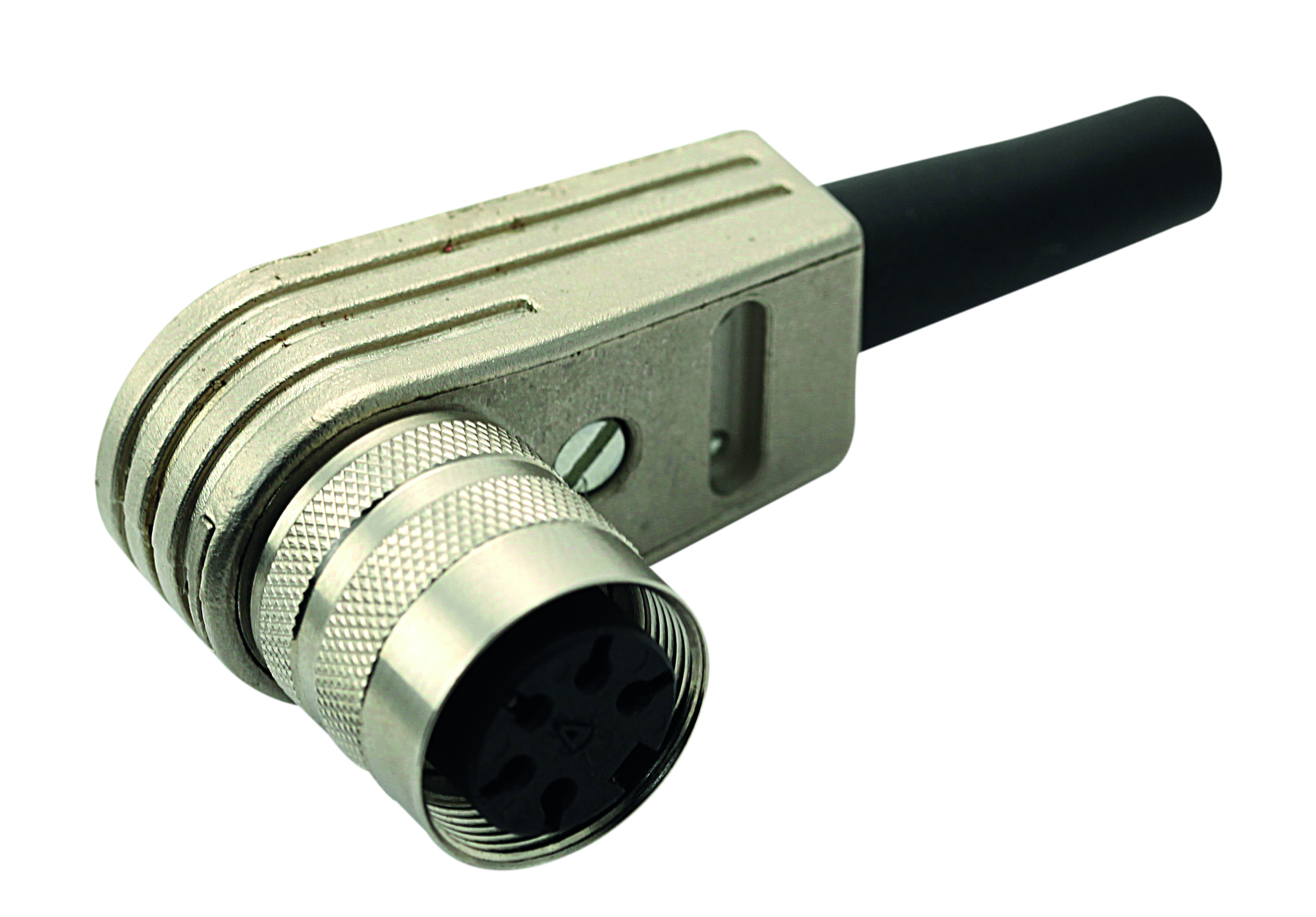

T 3505 005
Specifications
Detailed Description
The T 3505 005 is a high-quality female cable connector designed for reliable and secure connections in industrial environments. With a durable die-cast zinc housing and silver contact plating, this connector ensures optimal conductivity and performance. Featuring 8 contacts, it is suitable for a variety of applications. The cable mount and solder termination method make installation easy and efficient. Operating in temperatures ranging from -40°C to 100°C and with IP40 rating, it is built to withstand harsh conditions. The M16 shell size, right-angle mount angle, and screw mating type provide versatility in installation. With a current rating of 7A and voltage ratings of 100V and 250V, it is suitable for medium-power applications. RoHS compliance ensures environmental responsibility. Whether for use in machinery, automation, or telecommunications, the T 3505 005 guarantees reliable connectivity.
