| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3506 100 |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V |
| Contact Plating: | Silver |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 8 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-A |
| SKU: | AMET 3506 100 |

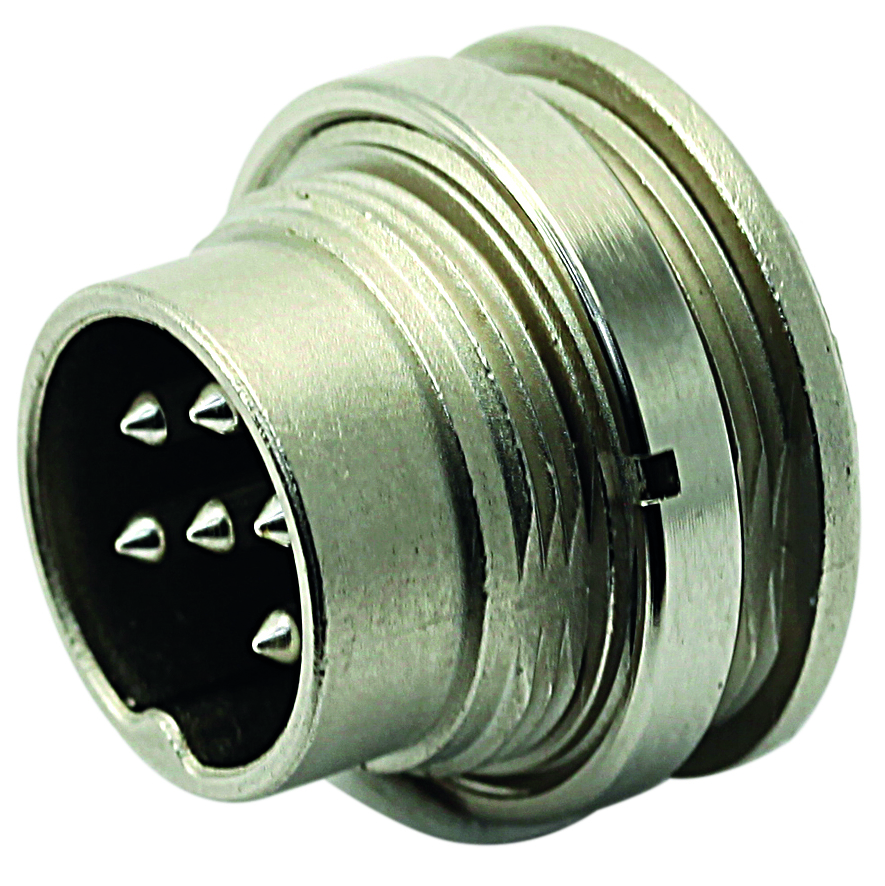

T 3506 100
Specifications
Detailed Description
Introducing the T 3506 100, a high-performance Male Receptacle designed for reliable connectivity in industrial environments. Part of the C091 M16-A series, this rugged connector features a Zinc Die Cast housing for durability. With 8 contacts and a panel mount design, it ensures secure and stable connections. The termination method of solder and silver contact plating guarantee efficient signal transmission. Operating seamlessly in temperatures ranging from -40°C to 100°C, with an IP40 rating for dust protection, this connector is ideal for harsh conditions. The mating type of screw allows for easy installation, while its shielded design enhances signal integrity. Suitable for 20 AWG wire, with a current rating of 7A and voltage rating of 100V, it meets high-performance standards. RoHS compliant, and with 500 mating cycles, this connector offers longevity and environmental responsibility. Trust the T 3506 100 for your circular DIN connector needs.
