| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3507 018 |
| Series: | C091 M16-A |
| Gender: | Female |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 8 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Mating Type: | Screw |
| Mating Cycles: | 1000 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V |
| SKU: | AMET 3507 018 |
T 3507 018
Specifications
Detailed Description

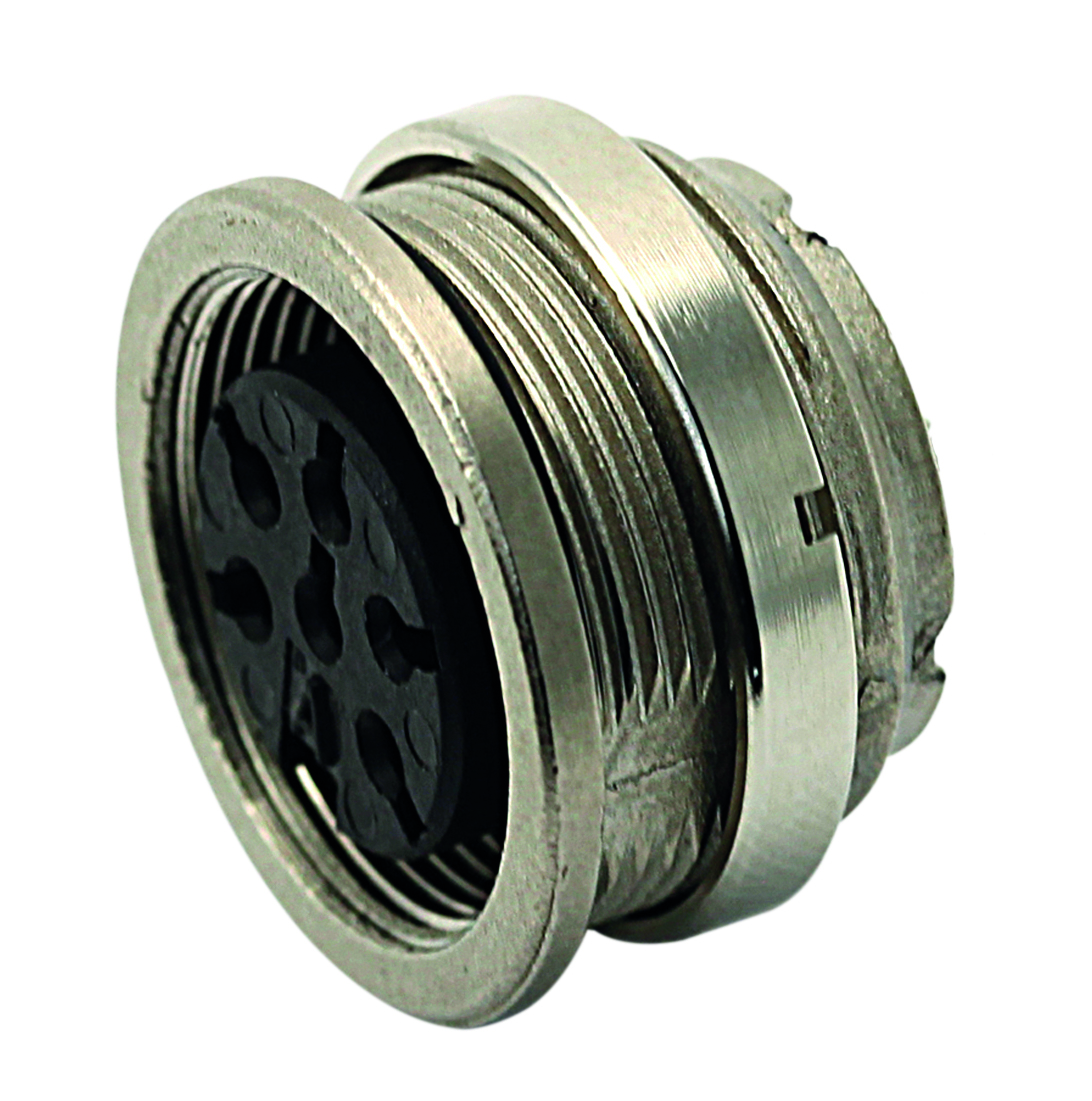

Introducing the T 3507 018 Female Receptacle, a vital component in the C091 M16-A series. This panel-mount connector features a durable zinc die-cast housing, ensuring reliable performance in various applications. With eight gold-plated contacts, it guarantees high conductivity and signal integrity. Operating seamlessly in temperatures ranging from -40°C to 100°C and IP40 rated for protection against dust, this connector is ideal for harsh environments. Its solder termination method and screw mating type facilitate easy installation. With a current rating of 7A and voltage rating of 100V, it meets stringent performance requirements. RoHS compliant and suitable for use with 20 AWG wire, the T3507018 is the perfect choice for your circular DIN connector needs.
