| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3524 501 |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 8 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Shielded: | No |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V, 250 V |
| SKU: | AMET 3524 501 |
T 3524 501
Specifications
Detailed Description

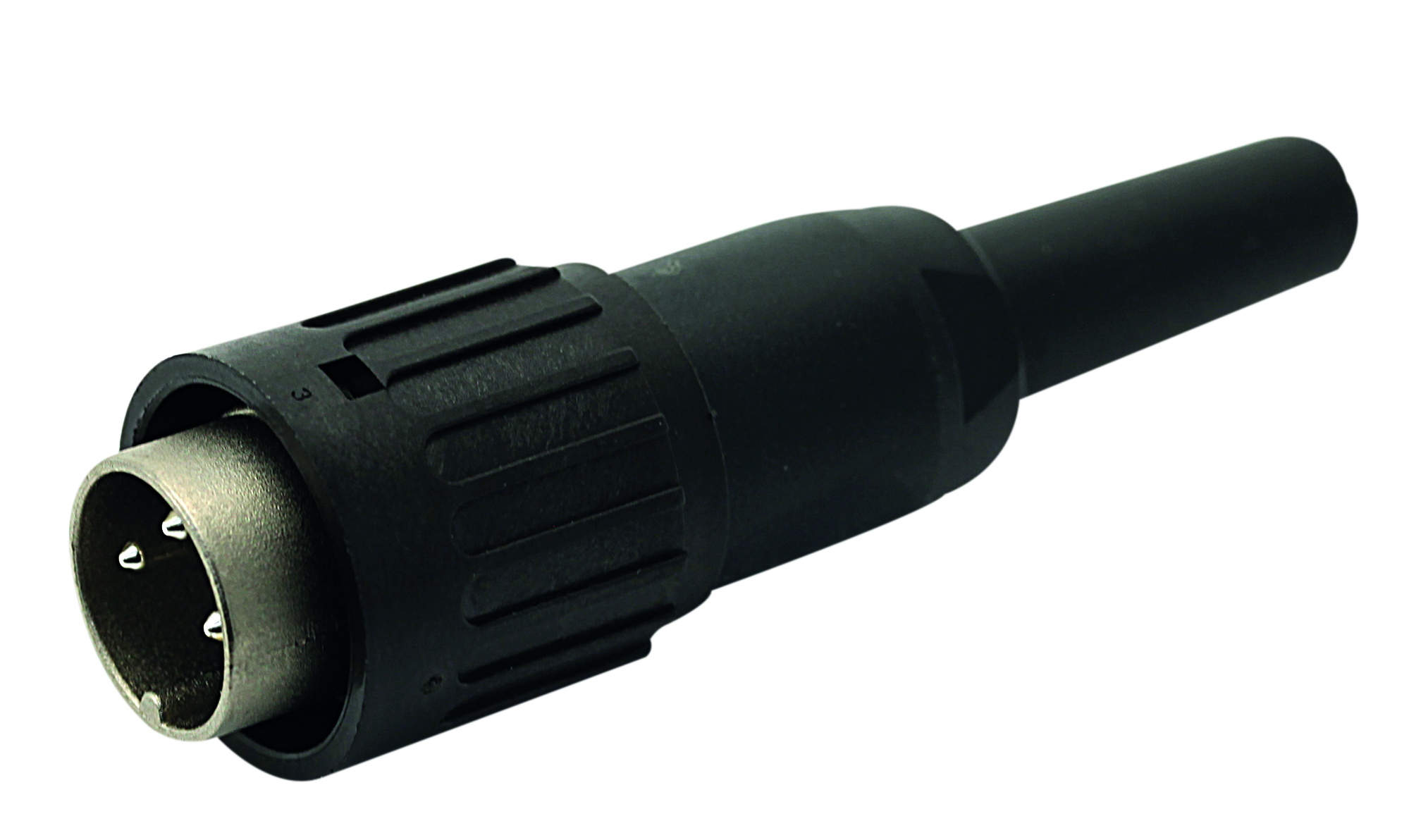

Introducing the T 3524 501 Male Cable Connector, a robust solution for seamless signal transmission. Constructed with durable Die Cast Zinc housing, this connector ensures reliable performance in various environments. Featuring 8 silver-plated contacts and a solder termination method, it guarantees high conductivity and longevity. With a wide operating temperature range from -40°C to 100°C and IP40 rating, it is suitable for use in demanding industrial applications. The M16 shell size, bayonet mating type, and straight mount angle offer easy installation and secure connections. RoHS compliant and capable of handling 7A at 100V or 250V, this connector is both environmentally friendly and high-performing. Perfect for 20 AWG wires, it is ideal for professionals in the field of Circular DIN Connectors, ensuring efficient and durable connectivity with a lifespan of 500 mating cycles. Elevate your connectivity with the T 3524 501.
