| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3528 501 |
| Color: | Black |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 8 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Shielded: | No |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V, 250 V |
| SKU: | AMET 3528 501 |

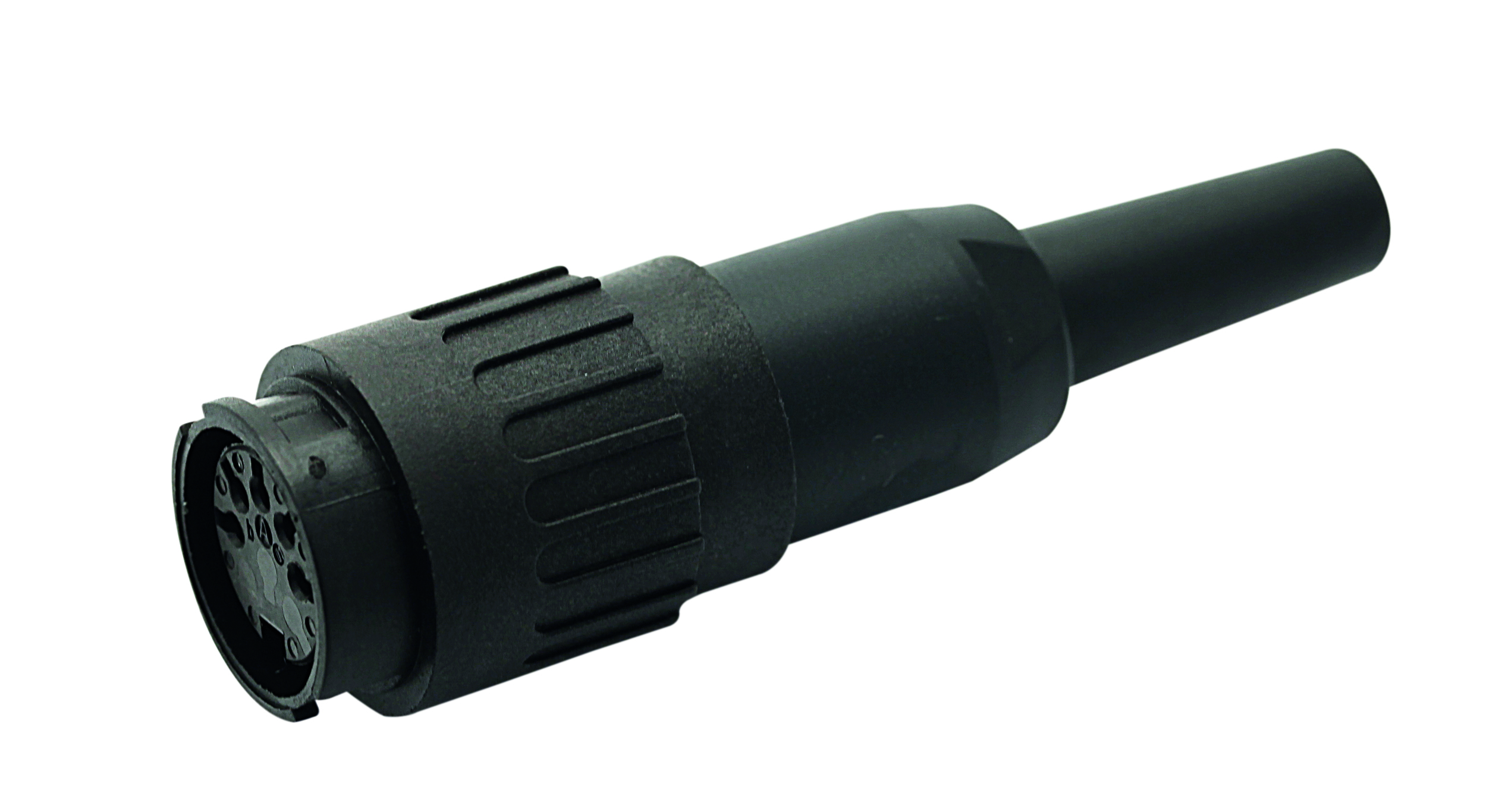

T 3528 501
Specifications
Detailed Description
Introducing the T 3528 501 Female Cable Connector with BL, designed for seamless connectivity in demanding environments. With a sleek Black housing crafted from robust Die Cast Zinc, this connector ensures durability and reliable performance. Featuring 8 contacts, it allows for efficient data transmission. The Cable Mount design and Straight mount angle facilitate easy installation. Utilizing a solder termination method and Silver contact plating, it guarantees secure connections with a maximum operating temperature of 100°C and a minimum of -40°C, making it suitable for a wide range of applications. With IP40 rating, it offers protection against dust and debris. Compliant with RoHS standards, this connector is environmentally friendly and safe. Perfect for Circular DIN Connectors applications, the T 3528 501 is a high-quality solution for your connectivity needs.
