| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3635 551 |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 12 |
| Mount Type: | Cable Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Shielded: | Yes |
| Wire Size: | 28 - 24 AWG |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V, 60 V |
| SKU: | AMET 3635 551 |

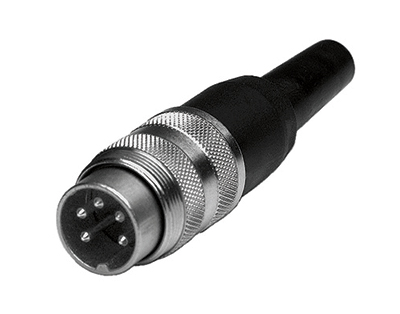

T 3635 551
Specifications
Detailed Description
Introducing the T 3635 551 Male Cable Connector, a robust and reliable solution for your connectivity needs. This connector, featuring a durable Die Cast Zinc housing, is designed to withstand harsh environments with an operating temperature range of -40°C to 100°C and an IP40 rating for protection against dust. With 12 contacts and a shell size of M16, it offers secure and efficient connections. The termination method of crimping ensures a strong bond, while the straight mount angle and screw mating type make installation a breeze. Shielded for added signal integrity, it accommodates wire sizes ranging from 28 to 24 AWG, with a current rating of 3A and voltage ratings of 150V and 60V. Perfect for applications in Circular DIN Connectors and beyond, the T 3635 551 is the epitome of quality and performance in the realm of male cable connectors.
