| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3636 001 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 24 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V, 60 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 12 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3636 001 |
T 3636 001
Specifications
Detailed Description

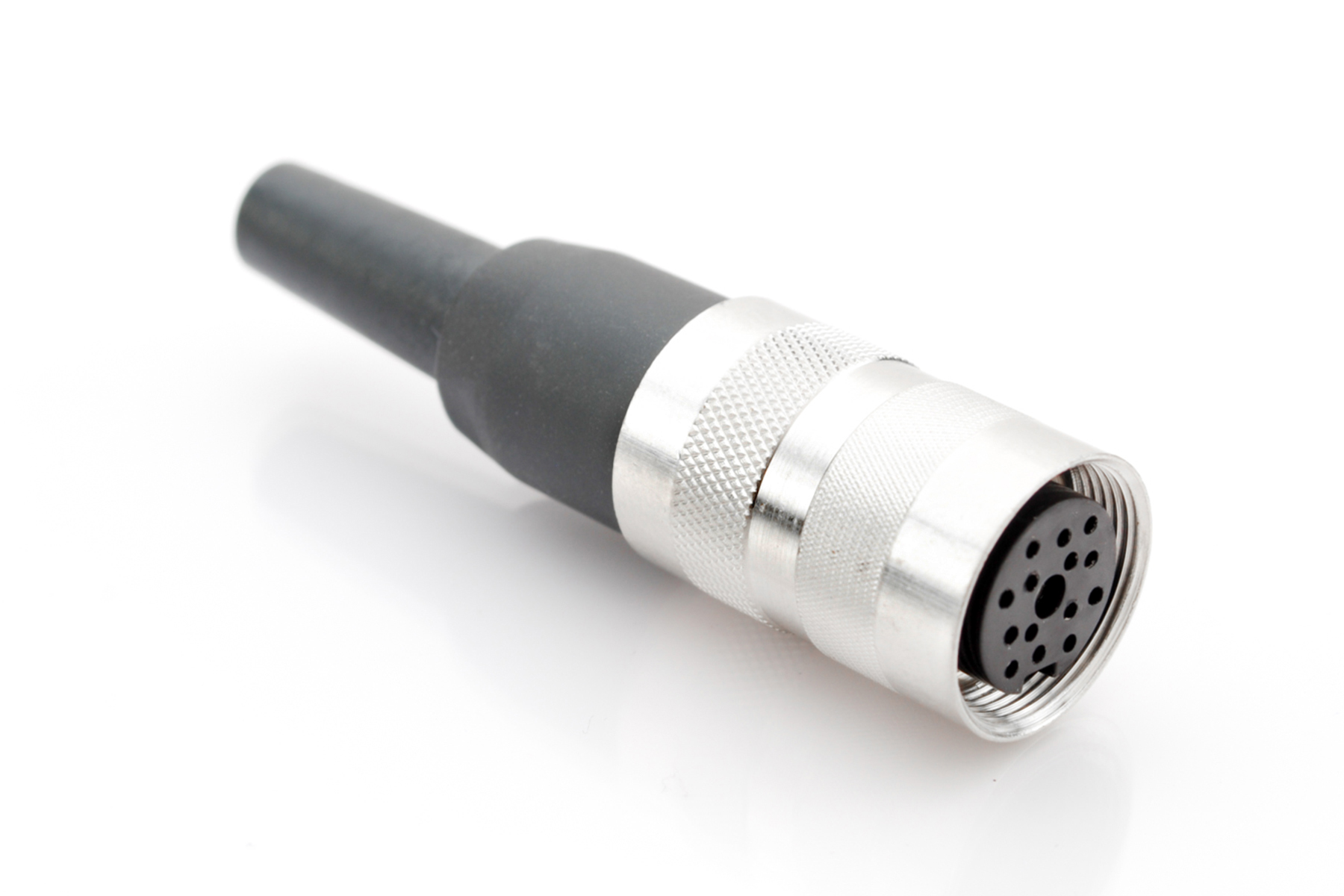

The T 3636 001 Circular DIN Connector, designated as C091A, is a durable and high-performance connector tailored for female gender applications. Constructed with robust Die Cast Zinc housing material, it ensures long-lasting reliability in various environments. With 12 contacts and a cable mount design featuring solder termination method, it offers secure and efficient connectivity. The silver contact plating guarantees excellent conductivity, while the IP40 rating provides protection against dust. Operating between -40°C to 100°C, it's suitable for a wide range of temperature conditions. Featuring a straight mount angle and M16 shell size, it's easy to install and compatible with standard screw mating. With a 500-cycle mating lifespan, it's ideal for frequent connection requirements. Shielded for enhanced signal integrity, it accommodates 24 AWG wire size and offers a current rating of 3A at 150V or 60V. RoHS compliant and meticulously crafted, the T3636001 connector is a dependable solution in the Circular Connectors & Accessories category.
