| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3636 002 |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 12 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Shielded: | Yes |
| Wire Size: | 24 AWG |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V, 60 V |
| SKU: | AMET 3636 002 |

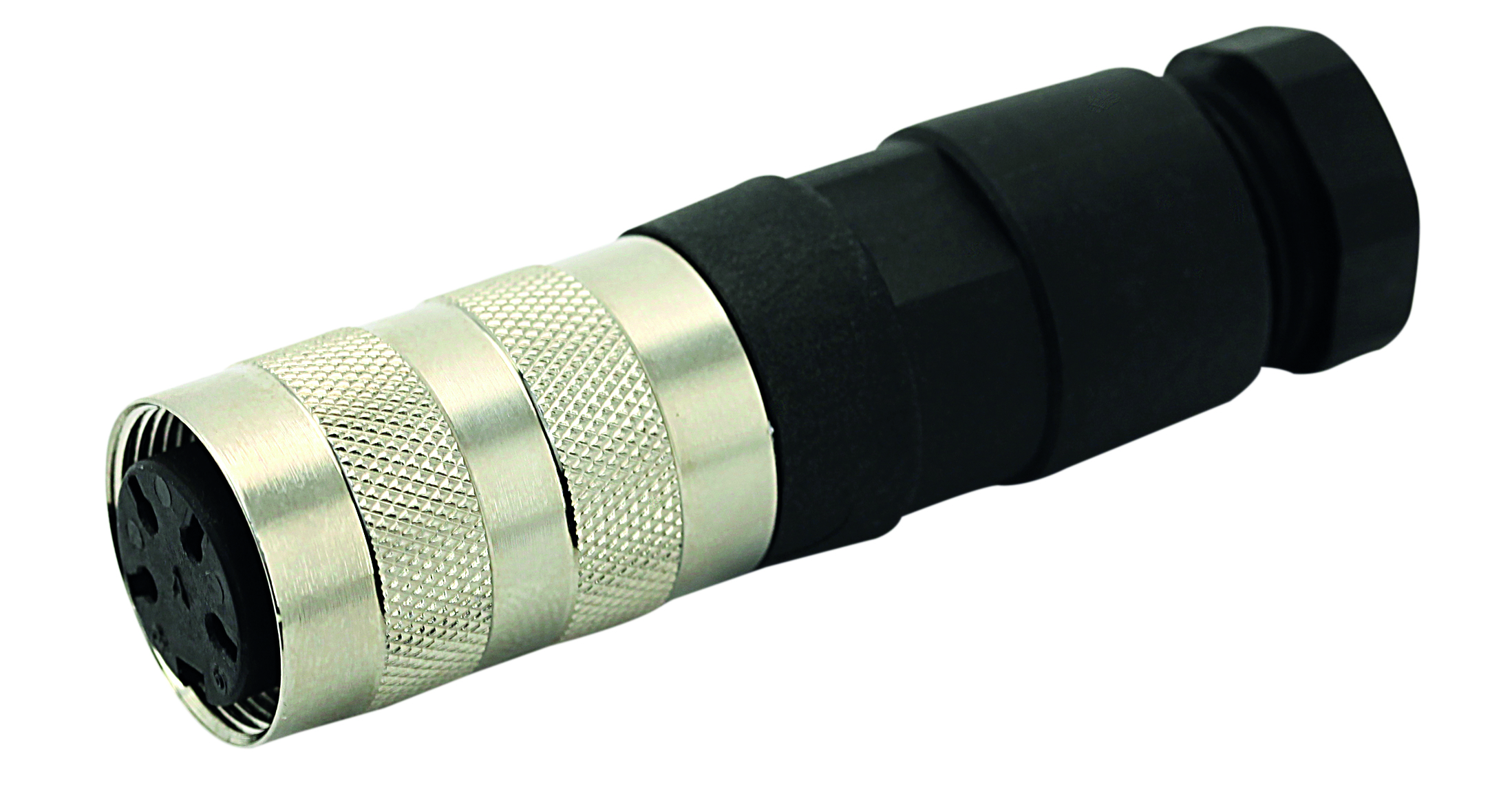

T 3636 002
Specifications
Detailed Description
Introducing the T 3636 002 Female Cable Connector 12, a high-quality essential for seamless connectivity in industrial applications. Crafted with precision from durable Die Cast Zinc, this connector ensures reliable performance even in demanding environments. Featuring 12 gold-plated contacts and a solder termination method, it guarantees efficient signal transmission. With a wide operating temperature range from -40°C to 100°C and IP40 rating, it offers robust protection against harsh conditions. The M16 shell size, straight mount angle, and screw mating type make installation a breeze. Rated for 3A at 150V (60V), this connector is suitable for various power and signal applications. RoHS compliant and designed for 1000 mating cycles, it prioritizes both performance and environmental responsibility. Trust the T 3636 002 for secure and efficient connectivity in your projects.
