| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3637 001 |
| Series: | C091 M16-A |
| Gender: | Male |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 12 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 24 AWG |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V |
| SKU: | AMET 3637 001 |

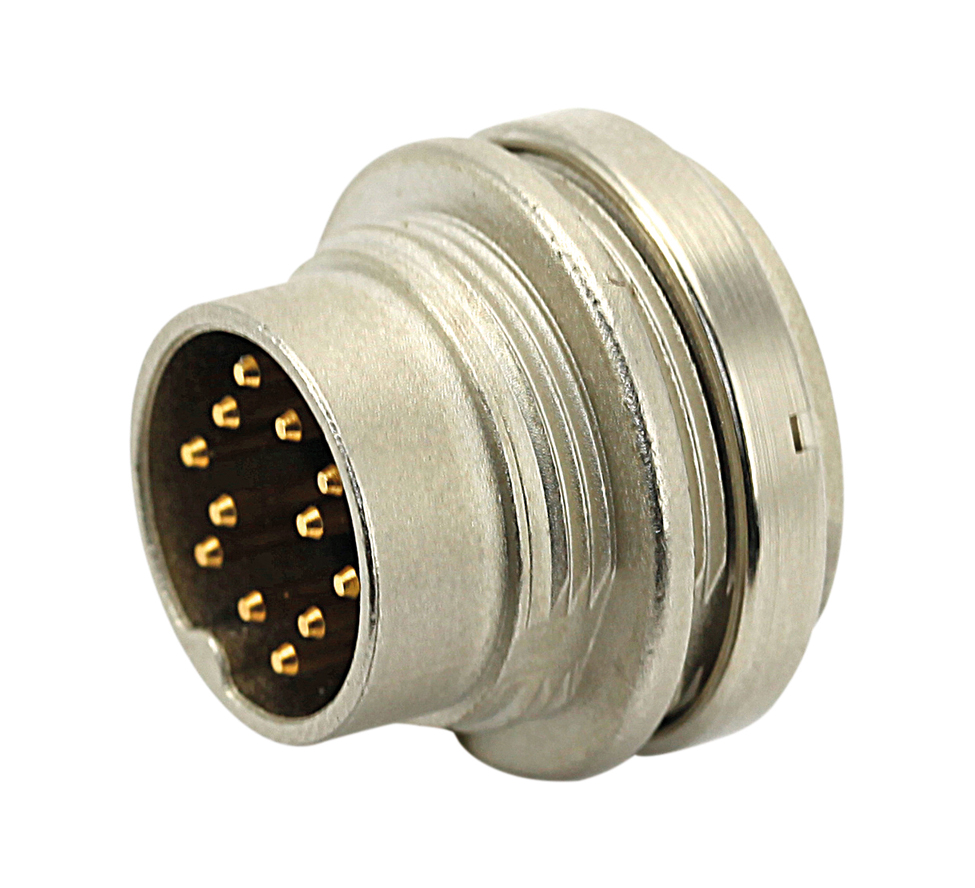

T 3637 001
Specifications
Detailed Description
Introducing the T 3637 001, a robust and reliable FRONT MOUNTING MALE RECEPTACLE from the C091 M16-A series. Engineered for optimal performance, this connector features a durable Zinc Die Cast housing, making it ideal for demanding environments. With 12 silver-plated contacts, it ensures secure and efficient connections. The panel mount design with solder termination method guarantees easy installation. Operating flawlessly in temperatures ranging from -40°C to 100°C and boasting an IP40 rating, it offers superior protection against environmental factors. Suitable for high-speed data transmission, its shielded construction and screw mating type provide enhanced signal integrity. Rated for 500 mating cycles, this connector is built to last. Accommodating 24 AWG wire, it can handle a current rating of 3A and voltage rating of 150V, making it perfect for a variety of applications in the industrial and commercial sectors. Experience uncompromising quality and performance with the T 3637 001.
