| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3638 304 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 24 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V |
| Contact Plating: | Gold |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 12 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-A |
| SKU: | AMET 3638 304 |
T 3638 304
Specifications
Detailed Description

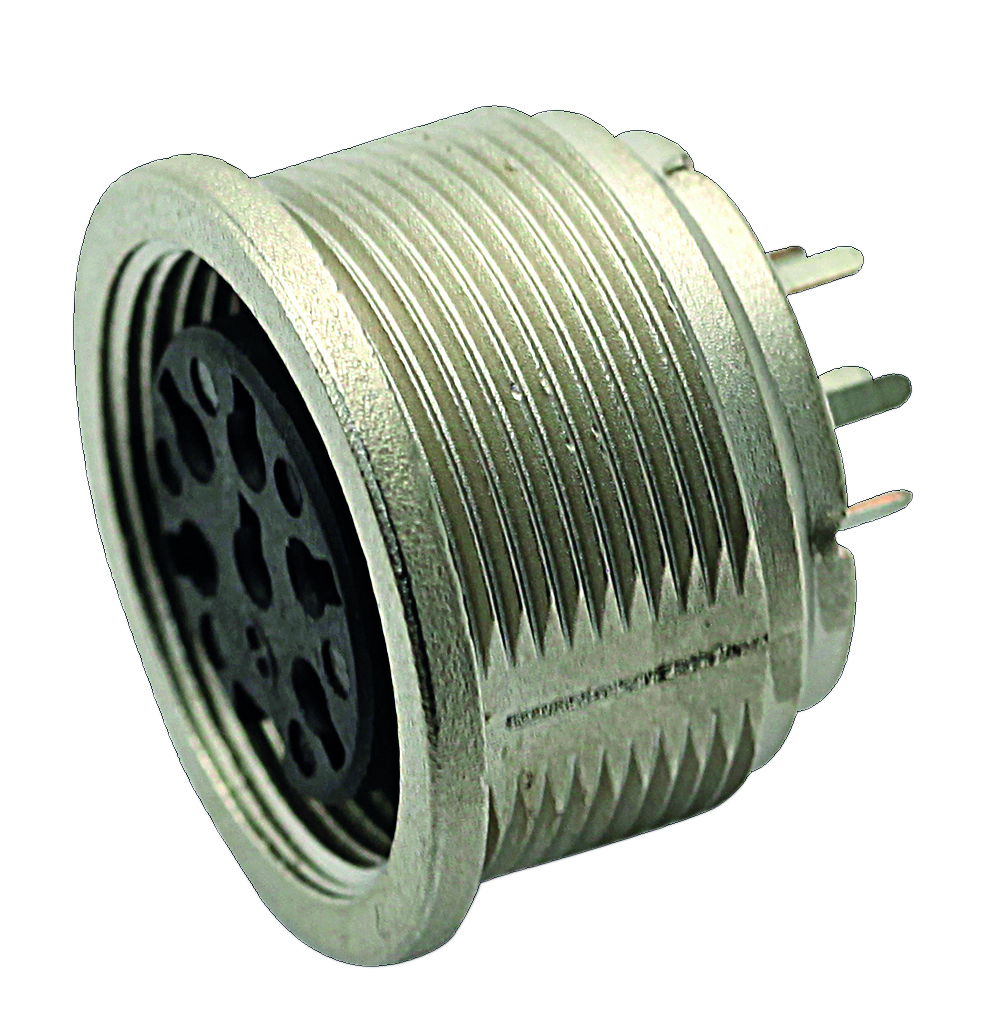

Introducing the T 3638 304, a robust and reliable front-mounting female receptacle from the C091 M16-A series. Crafted with high-quality zinc die-cast housing, this connector ensures durability in demanding environments. With 12 gold-plated contacts, it guarantees excellent conductivity. Designed for panel mounting and featuring a straight mount angle, installation is quick and easy. Meeting IP40 standards for protection against dust, this connector is ideal for industrial applications. Its solder termination method and 24 AWG wire size make it suitable for various connectivity needs. With a current rating of 3A and a voltage rating of 150V, it offers efficient power transmission. Whether in telecommunications, aerospace, or other sectors, the T 3638 304 is the perfect choice for secure and high-performance connections.
