| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3650 058 |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 24 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Right Angle |
| Mating Cycles: | 1000 cycle |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V, 60 V |
| Contact Plating: | Gold |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 14 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3650 058 |

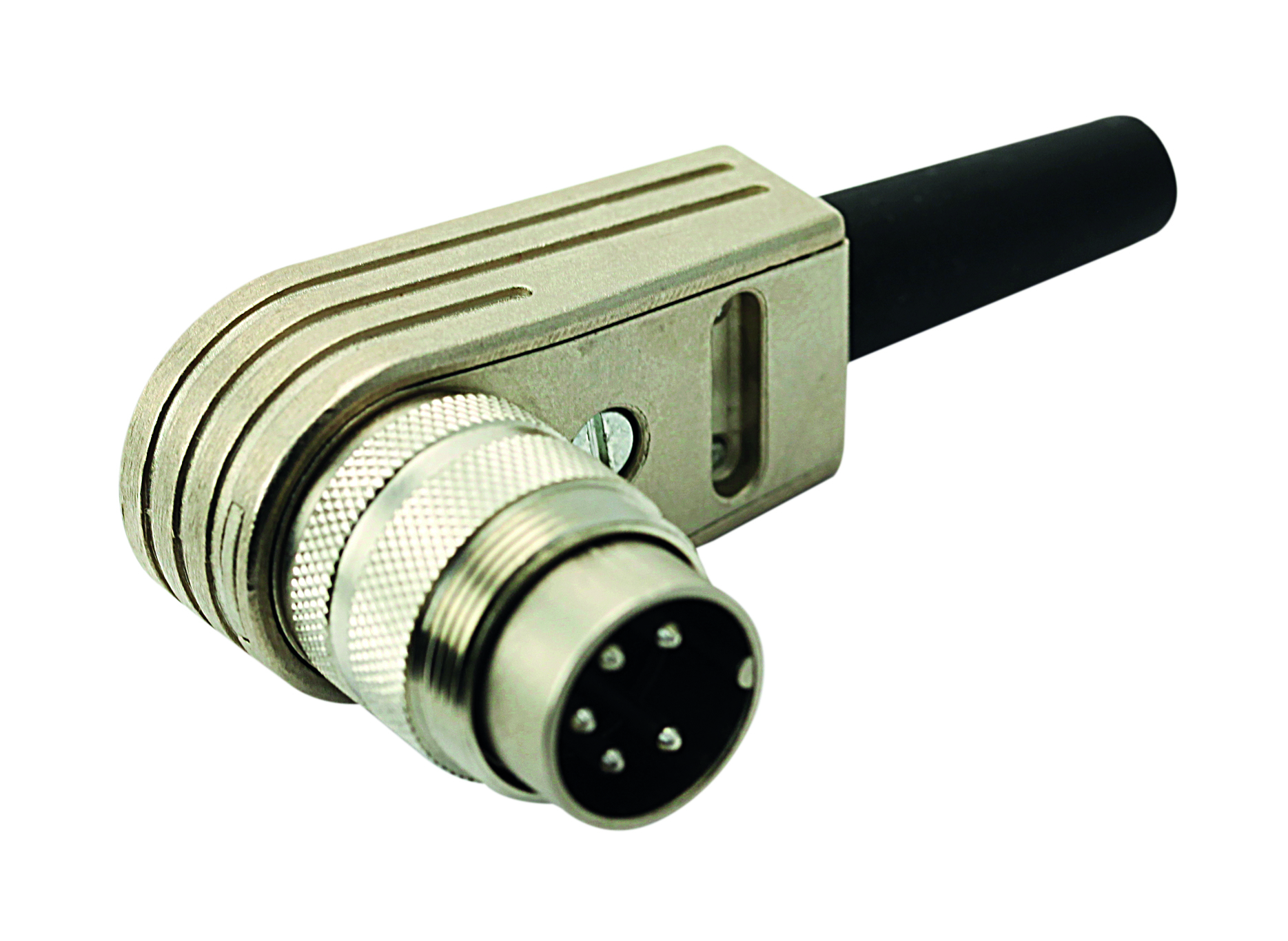

T 3650 058
Specifications
Detailed Description
Introducing the T 3650 058, a high-performance male cable connector designed for robust connectivity in industrial applications. Constructed with durable die-cast zinc housing and featuring 14 gold-plated contacts, this connector ensures reliable signal transmission even in harsh environments. With a cable mount and solder termination method, installation is quick and secure. Rated for temperatures ranging from -40°C to 100°C and boasting an IP40 ingress protection rating, it offers dependable operation in varied conditions. The M16 shell size, right-angle mount angle, and screw mating type provide versatility in setup. Shielded for enhanced signal integrity, this connector accommodates 24 AWG wire, with a current rating of 3A and voltage rating of 150V or 60V. With a mating cycle durability of 1000 cycles, it guarantees long-term performance. In compliance with circular DIN connector standards, this product is ideal for use in aerospace, automotive, and other hi-rel industries. Upgrade your connectivity with the T 3650 058.
