| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3652 000 |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 24 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Screw |
| Mating Cycles: | 1000 cycle |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V |
| Contact Plating: | Gold |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 14 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-A |
| SKU: | AMET 3652 000 |
T 3652 000
Specifications
Detailed Description

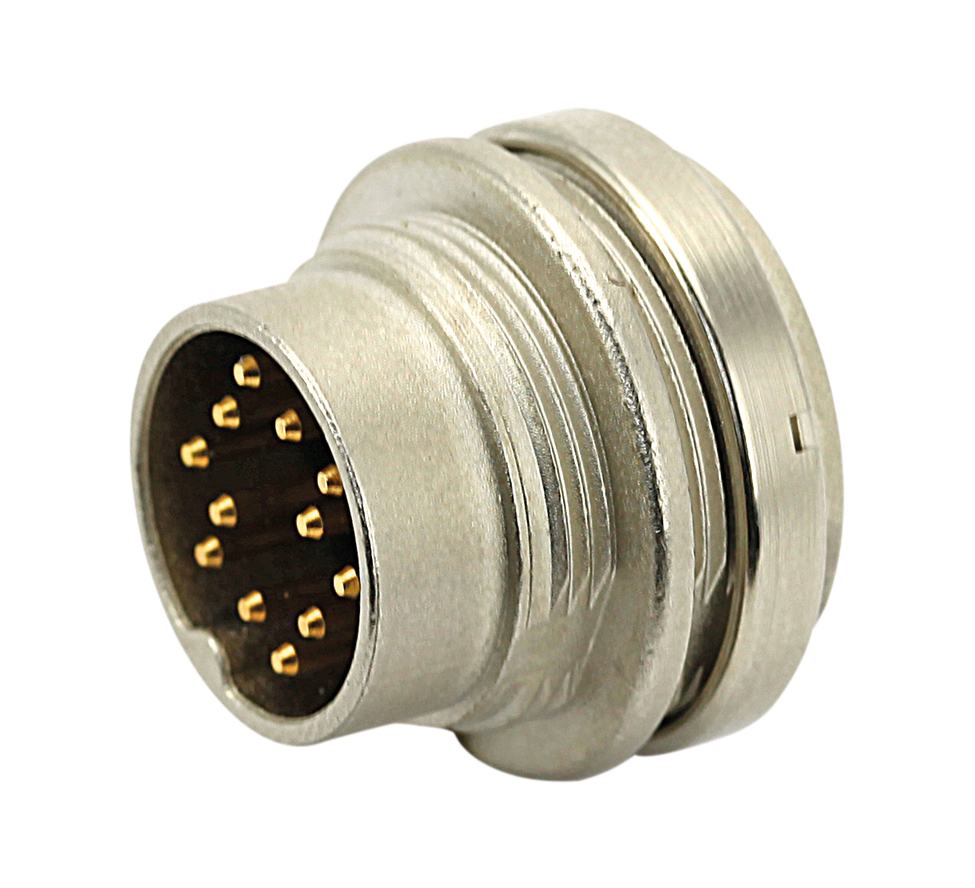

Introducing the T 3652 000, a robust circular DIN connector designed for reliable panel mount installations. Part of the C091 M16-A series, this male connector boasts a durable zinc die-cast housing ensuring longevity even in harsh environments. With 14 gold-plated contacts, it guarantees excellent conductivity and signal transmission. Operating seamlessly between -40°C to 100°C, this connector is suitable for a wide range of applications. Featuring IP40 rating and shielded construction, it offers protection against dust and interference. Solder termination and screw mating make for secure and hassle-free connections, while its compliance with RoHS regulations ensures environmental responsibility. With a current rating of 3A and voltage rating of 150V, the T 3652 000 is a high-performance solution for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
