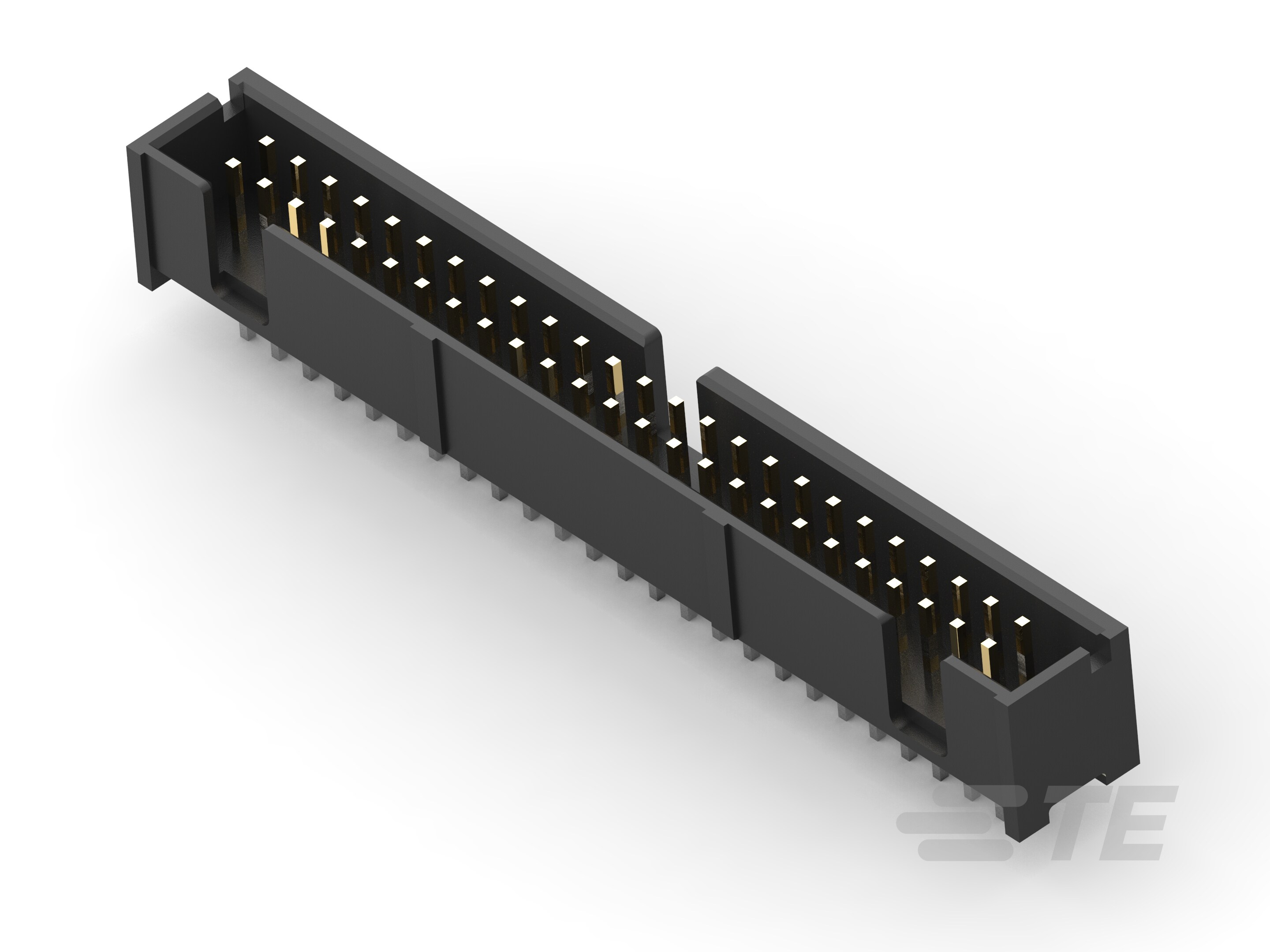

1-103309-0

Heilind Number:	AMP1-103309-0
Manufacturer:	TE Connectivity
Manufacturer Number:	1-103309-0
Datasheet:	Material Declaration
ECAD Model:

Description:

050 LOPRO HDR SP 30DP

More >>

Specifications

Attribute	Value
Product Category:	FFC, FPC, Ribbon & IDT Connectors IDC Ribbon Cable Connectors
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 1-103309-0
Amperage:	1 A
Connector Type:	Header
Gender:	Receptacle
Housing Material:	Thermoplastic
Number of Contacts:	50
Number of Rows:	2
Mount Type:	Board Mount
Termination Method:	Through Hole - Solder
Contact Material:	Copper Alloy
Body Orientation:	Straight
Pitch:	.1 in, 2.54 mm
Row Spacing:	.1 in, 2.54 mm
Polarization:	With
Package Quantity:	35
Contact Amperage:	1 A
Number of Positions:	50
Housing Color:	Black
Mount Orientation:	Vertical
Insulation Resistance:	5000 MΩ
GPL:	040
Profile:	Low
Packaging:	Tube
Operating Temperature Range:	-65 - 105 °C, -85 - 221 °F
Circuit Application:	Signal
Contact Mating Area Plating:	Gold, Gold Flash over Palladium Nickel
Contact Mating Area Plating Thickness:	30 µin
Panel Mount:	Without
PCB Retention:	Without
Contact Termination Plating Thickness:	100 µin
Contact Underplating Material:	Nickel
PCB Contact Termination Area Plating:	Tin-Lead
Connector Height:	.38 in, 9.77 mm
Mating Alignment:	With
Mating Alignment Type:	Center, Dual Polarizing Bar
GPL Description:	Data and Devices
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	5451
Contact Design:	Solder Dip
Contact Transmits:	Signal (Data)
Connector Length:	2.8 mm, 71.12 mm
Connector System:	Board to Board
Contact Termination Plating:	Gold Flash over Palladium Nickel
Connector Product Type:	Connector
Post Size:	.025 in, .64 mm
Contact Shape:	Square
PCB Mount Alignment:	With
Termination Post Length:	.12 in, 3.05 mm
Header Type:	Pin Header
Mating Connector Lock:	Without
Housing Style:	4-Sided
Board Standoff:	Without
Temperature Rating:	Standard
Shrouded End Dimension:	.15 in, 3.81 mm
Daisy Chain:	With
Ejection Latches:	Without
Material Flammability Standard:	UL 94V-0
Part Aliases:	1-103309-0
Replacement Part:	1-5103309-0
SKU:	AMP1-103309-0

Detailed Description

This 50-position, 2-row Header Connector is designed for board-to-board signal transmission in various electronic applications. Featuring a straight orientation and Through Hole - Solder termination method, it ensures secure and reliable connections. With a low-profile housing made of UL 94V-0 rated thermoplastic in a sleek black color, this connector offers durability and safety. The gold-plated contacts provide optimal conductivity, while the 2.54mm pitch and .1-inch row spacing allow for easy mating. Operating within a wide temperature range of -65 to 105°C (-85 to 221°F), it is suitable for diverse environments. The connector's dual polarizing bars and center mating alignment ensure proper connection orientation, while the daisy chain feature enhances efficiency in assembly. Overall, this high-quality connector is ideal for use in data and device applications, meeting standard requirements for performance and reliability.
