1-103310-0

Heilind Number:	AMP1-103310-0
Manufacturer:	TE Connectivity
Manufacturer Number:	1-103310-0
Datasheet:	3D Drawing
ECAD Model:

Description:

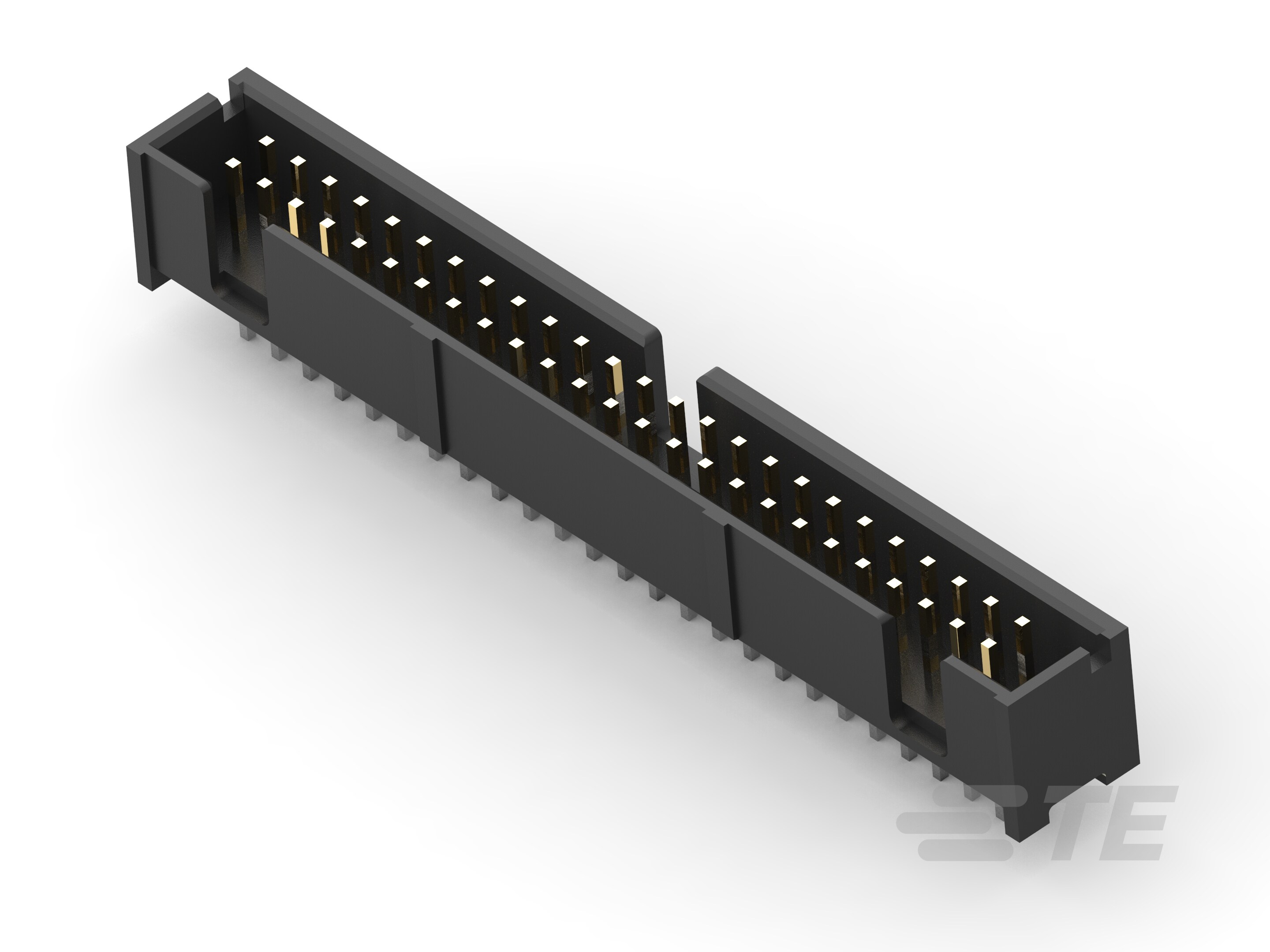

050 LOPRO HDR RA 15DP

More >>

Specifications

Attribute	Value
Product Category:	FFC, FPC, Ribbon & IDT Connectors IDC Ribbon Cable Connectors
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 1-103310-0
Amperage:	1 A
Connector Type:	Header
Gender:	Receptacle
Housing Material:	Thermoplastic
Number of Contacts:	50
Number of Rows:	2
Mount Type:	Board Mount
Termination Method:	Through Hole - Solder
Contact Material:	Copper Alloy
Body Orientation:	Right Angle
Pitch:	.1 in, 2.54 mm
Row Spacing:	.1 in, 2.54 mm
Polarization:	With
Package Quantity:	35
Contact Amperage:	1 A
Number of Positions:	50
Housing Color:	Black
Mount Orientation:	Right Angle
Insulation Resistance:	5000 MΩ
GPL:	040
Profile:	Low
Packaging:	Tube
Operating Temperature Range:	-65 - 105 °C, -85 - 221 °F
Circuit Application:	Signal
Contact Mating Area Plating:	Gold, Gold Flash over Palladium Nickel
Contact Mating Area Plating Thickness:	15 µin
Panel Mount:	Without
PCB Retention:	Without
Contact Underplating Material:	Nickel
PCB Contact Termination Area Plating:	Tin-Lead
Connector Height:	.38 in, 9.77 mm
Mating Alignment:	With
Mating Alignment Type:	Center, Dual Polarizing Bar
GPL Description:	Data and Devices
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	5450
Contact Design:	Solder Dip
Contact Transmits:	Signal (Data)
Connector Length:	71.12 mm
Connector System:	Board to Board
Contact Termination Plating:	Gold Flash over Palladium Nickel
Connector Product Type:	Connector
Post Size:	.025 in, .64 mm
Contact Shape:	Square
PCB Mount Alignment:	With
Termination Post Length:	.135 in, 3.43 mm
Header Type:	Pin Header
Mating Connector Lock:	Without
Housing Style:	4-Sided
Board Standoff:	Without
Temperature Rating:	Standard
Shrouded End Dimension:	.15 in, 3.81 mm
Daisy Chain:	With
Ejection Latches:	Without
Material Flammability Standard:	UL 94V-0
Part Aliases:	1-103310-0
Replacement Part:	1-5103310-0
SKU:	AMP1-103310-0
