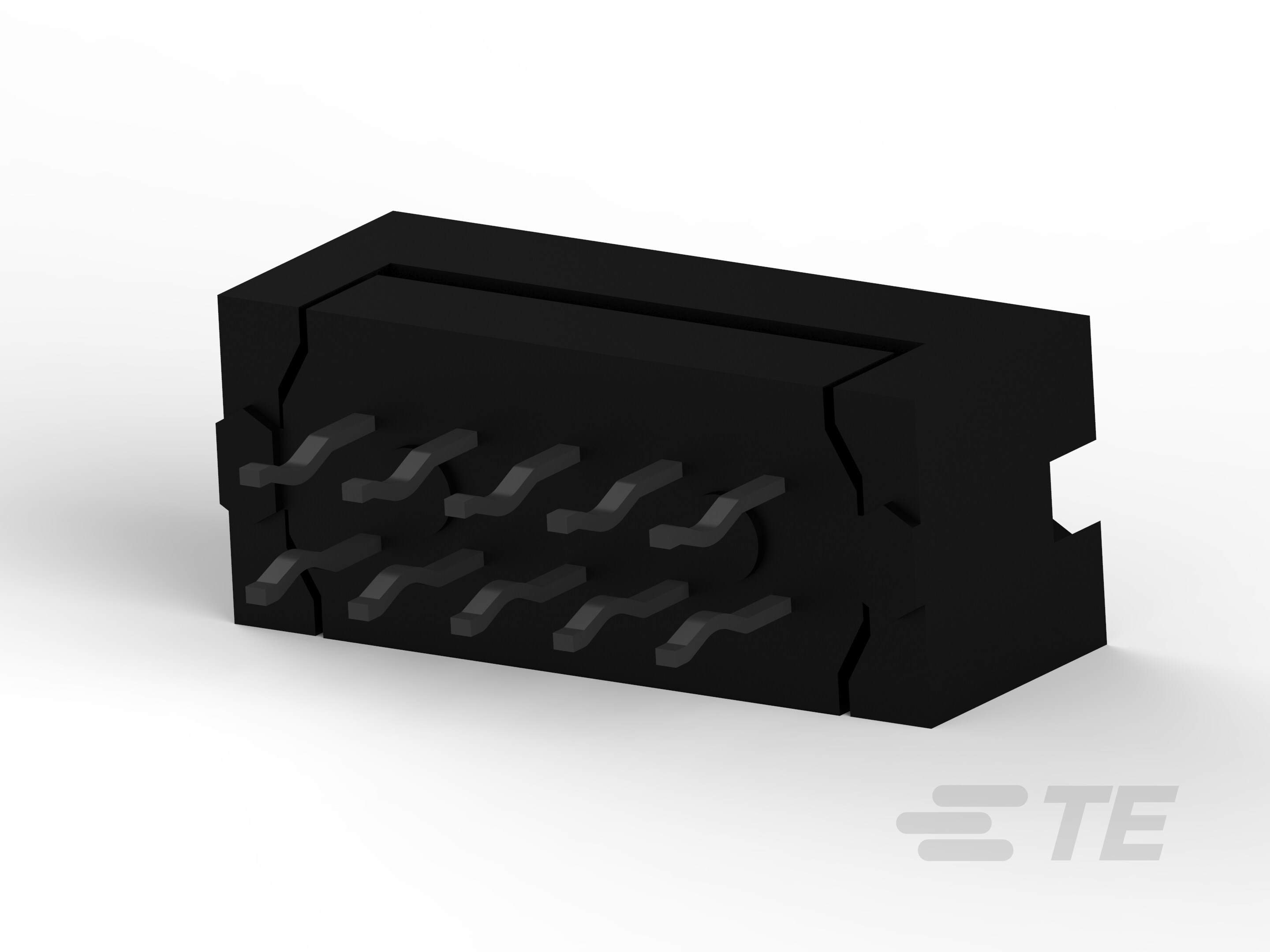

1-111382-4

AMP1-111382-4
Heilind Number:AMP1-111382-4
Manufacturer:TE Connectivity
Manufacturer Number:1-111382-4
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

10 DIP PLUG, LEAD FREE

More >>

Specifications

AttributeValue
Product Category:
FFC, FPC, Ribbon & IDT Connectors IDC Ribbon Cable Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-111382-4
Amperage:1 A
Connector Type:Connector Assembly Kit
Gender:Plug
Number of Contacts:10
Number of Rows:2
Mount Type:Board Mount
Termination Method:Insulation Displacement Crimp (IDC), Through Hole - Solder
Contact Material:Phosphor Bronze
Body Orientation:Straight
Pitch:.1 in, 2.54 mm
Voltage:250 VAC
Row Spacing:.1 in, 2 mm
Polarization:Without
Package Quantity:50
Cable Type:Solid/Stranded
Contact Amperage:1 A
Number of Positions:10
Housing Color:Black
Mount Orientation:Vertical
Insulation Resistance:5000 MΩ
GPL:034
Profile:Low
Tail Length:.156 in, 3.96 mm
Packaging:Box & Tube, Tube
Operating Temperature Range:-65 - 105 °C, -85 - 221 °F
Circuit Application:Signal
Contact Mating Area Plating Thickness:100 µin, 2.54 µm
Panel Mount:Without
PCB Retention:With
Contact Termination Plating Thickness:100 µin
PCB Contact Termination Area Plating:Tin
PCB Thickness (Recommended):.062 - .093 in, 1.57 - 2.36 mm
Connector Height:.253 in, 6.43 mm
PCB Retention Type:Kinked Legs
Mating Alignment:Without
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:5709
Wire Size:.051 - .15 mm², 101 - 296 CMA, 26 - 30 AWG
Contact Design:Tuning Fork
Contact Layout:Inline
Contact Transmits:Signal (Data)
Connector Length:17.27 mm, .68 in
Connector System:Wire to Board
CSA Agency Certification:LR 7189
UL Agency Certification:E28476
Connector Product Type:Connector
Connector Width:.278 in, 7.06 mm
PCB Mount Alignment:Without
Termination Post Length:.156 in, 3.96 mm
Header Type:Shrouded
Mating Connector Lock:Without
Accepts Wire Insulation Diameter:.032 - .042 in, .81 - 1.07 mm
Voltage Rating (UL):250 V AC
Solder Tail Contact Plating Finish:Matte
Board Standoff:With
Daisy Chain:Without
Ejection Latches:Without
Standards Met:CSA UL
Material Flammability Standard:UL 94V-0
Part Aliases:1-111382-4
SKU:AMP1-111382-4
