1-111382-8

AMP1-111382-8
Heilind Number:AMP1-111382-8
Manufacturer:TE Connectivity
Manufacturer Number:1-111382-8
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

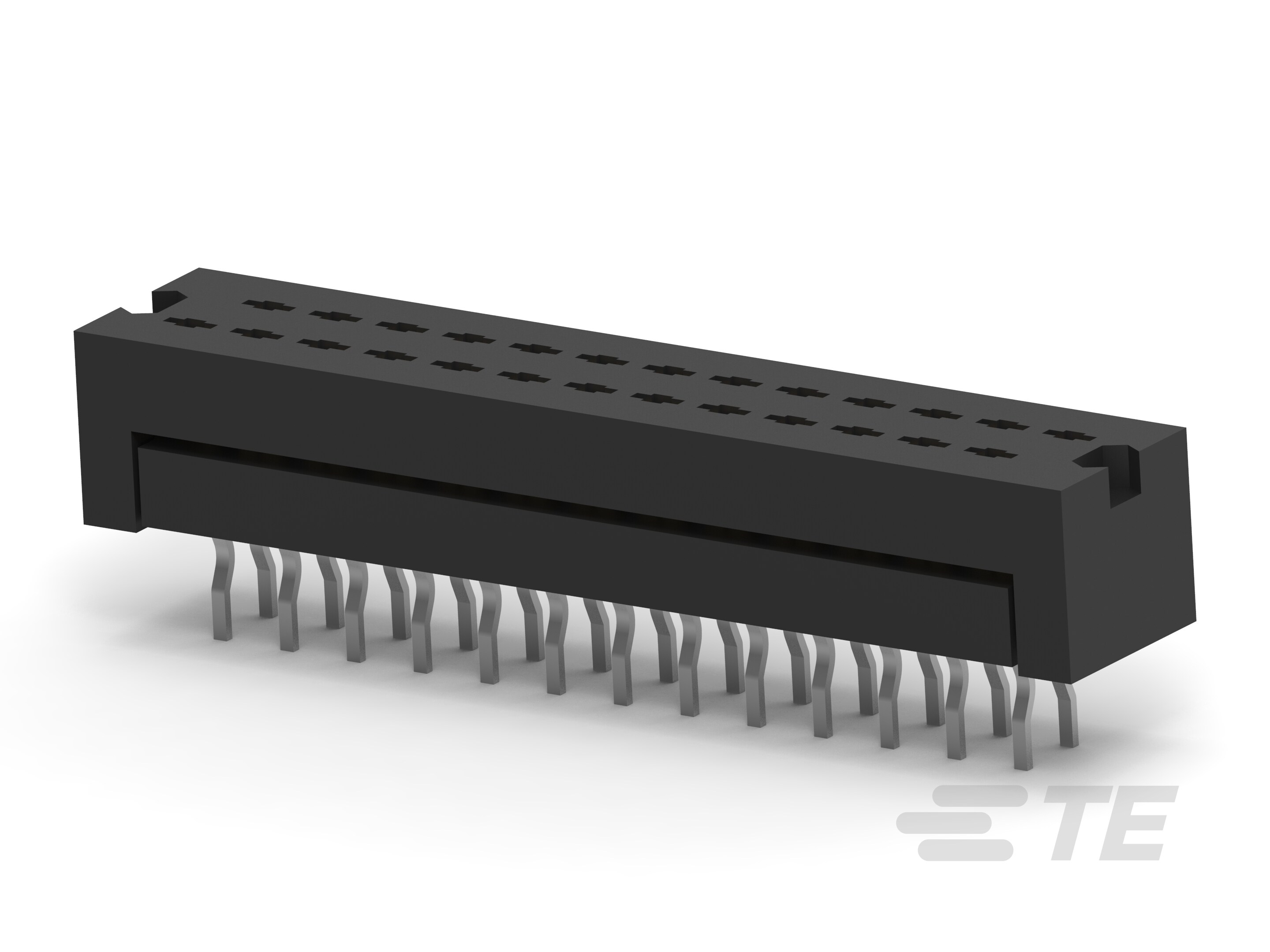

026 DIP PLUG 100CL TIN KK

More >>

Specifications

AttributeValue
Product Category:
FFC, FPC, Ribbon & IDT Connectors IDC Ribbon Cable Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-111382-8
Amperage:1 A
Connector Type:Connector Assembly Kit
Gender:Plug
Number of Contacts:26
Number of Rows:2
Mount Type:Board Mount
Termination Method:Insulation Displacement Crimp (IDC), Through Hole - Solder
Contact Material:Phosphor Bronze
Body Orientation:Straight
Pitch:.1 in, 2.54 mm
Voltage:250 VAC
Row Spacing:.1 in, 2 mm
Polarization:Without
Package Quantity:50
Cable Type:Solid/Stranded
Contact Amperage:1 A
Number of Positions:26
Housing Color:Black
Mount Orientation:Vertical
Insulation Resistance:5000 MΩ
GPL:034
Profile:Low
Tail Length:.156 in, 3.96 mm
Packaging:Box & Tube, Tube
Operating Temperature Range:-65 - 105 °C, -85 - 221 °F
Circuit Application:Signal
Contact Mating Area Plating Thickness:100 µin, 2.54 µm
Panel Mount:Without
PCB Retention:With
Contact Termination Plating Thickness:100 µin
PCB Contact Termination Area Plating:Tin
PCB Thickness (Recommended):.062 - .093 in, 1.57 - 2.36 mm
Connector Height:.253 in, 6.43 mm
PCB Retention Type:Kinked Legs
Mating Alignment:Without
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:5709
Wire Size:.051 - .15 mm², 101 - 296 CMA, 26 - 30 AWG
Contact Design:Tuning Fork
Contact Layout:Inline
Contact Transmits:Signal (Data)
Connector Length:1.48 in, 37.59 mm
Connector System:Wire to Board
CSA Agency Certification:LR 7189
UL Agency Certification:E28476
Connector Product Type:Connector
Connector Width:.278 in, 7.06 mm
PCB Mount Alignment:Without
Termination Post Length:.156 in, 3.96 mm
Header Type:Shrouded
Mating Connector Lock:Without
Accepts Wire Insulation Diameter:.032 - .042 in, .81 - 1.07 mm
Voltage Rating (UL):250 V AC
Solder Tail Contact Plating Finish:Matte
Board Standoff:With
Daisy Chain:Without
Ejection Latches:Without
Standards Met:UL CSA
Material Flammability Standard:UL 94V-0
Part Aliases:1-111382-8
SKU:AMP1-111382-8

Detailed Description

Elevate your connectivity with this high-performance Connector Assembly Kit. Featuring a Plug gender with 26 contacts spread across 2 rows, it offers seamless board mount installation with Through Hole - Solder and Insulation Displacement Crimp (IDC) termination methods. Crafted with durable Phosphor Bronze contacts, it ensures reliable signal transmission at amperage of 1 A and voltage of 250 VAC. Its UL and CSA standards compliance guarantee safety and quality, while its black housing and straight body orientation add to its sleek design. Suitable for both solid and stranded cable types, this kit is ideal for signal circuit applications, with a low profile and vertical mount orientation for efficient PCB integration. Operating smoothly in a wide temperature range from -65 to 105 °C, it meets RoHS compliance standards, making it an environmentally friendly choice. Each package contains 50 units, perfect for various industrial or electronic projects requiring secure and efficient wire-to-board connections. Elevate your connectivity with this high-performance Connector Assembly Kit. Featuring a Plug gender with 26 contacts spread across 2 rows, it offers seamless board mount installation with Through Hole - Solder and Insulation Displacement Crimp (IDC) termination methods. Crafted with durable Phosphor Bronze contacts, it ensures reliable signal transmission at amperage of 1 A and voltage of 250 VAC. Its UL and CSA standards compliance guarantee safety and quality, while its black housing and straight body orientation add to its sleek design. Suitable for both solid and stranded cable types, this kit is ideal for signal circuit applications, with a low profile and vertical mount orientation for efficient PCB integration. Operating smoothly in a wide temperature range from -65 to 105 °C, it meets RoHS compliance standards, making it an environmentally friendly choice. Each package contains 50 units, perfect for various industrial or electronic projects requiring secure and efficient wire-to-board connections.
