1-1337604-0

AMP1-1337604-0
Heilind Number:AMP1-1337604-0
Manufacturer:TE Connectivity
Manufacturer Number:1-1337604-0
Datasheet:Material Declaration
ECAD Model:
3D Model

Description:

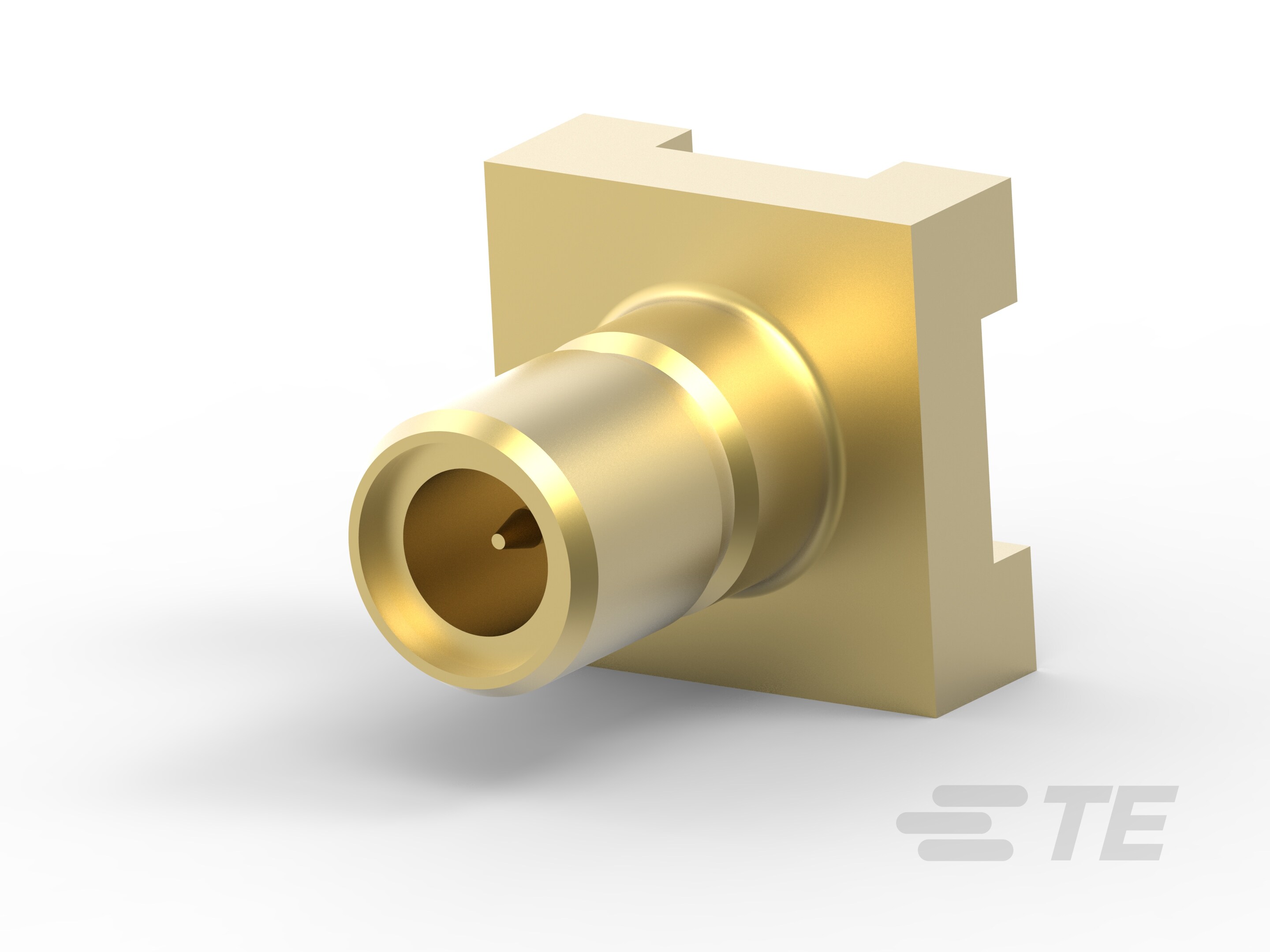

SMB SMT Skt 50Ohm Gold Pltd

More >>

Specifications

AttributeValue
Product Category:
RF Coaxial Connectors & Accessories RF Coaxial Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1337604-0
Gender:Jack
Mount Type:Board Mount
Termination Method:Straddle Mount - Solder
Contact Plating:Gold
Body Orientation:Straight
Mating Type:Snap-Fit
Impedance:50 Ω
Operating Frequency:4 GHz
RF Connector Type:SMB
Body Material:Brass
Body Shape:Square
Package Quantity:100
Number of Positions:1
Mount Orientation:Vertical
Interface:SMB
GPL:K18
Port Configuration:Single Port
Packaging:Tray
Operating Temperature Range:-65 - 165 °C, -85 - 329 °F
Additional Features:Pin Protection
Sealable:No
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:L069
Number of Signal Positions:1
Number of Coaxial Contacts:1
Body Plating Material:Gold
Center Contact Plating Material:Gold
Center Contact Material:Brass
Detent:Without
Dielectric Material:PTFE
Height Above PC Board:.303 in, 7.7 mm
Connector Length:.303 in, 7.7 mm
Contact Captivation Method:Mechanical
Mated Outer Diameter (Approximate):.187 in, 4.75 mm
Product Grade:Professional
Connector System:Cable to Cable
Connector Product Type:Connector Assembly
Part Aliases:1-1337604-0
SKU:AMP1-1337604-0

Detailed Description

Enhance your board mount connectivity with our SMB SMT Skt 50Ohm Gold Plated Jack. Designed for high-performance applications, this straight body orientation connector ensures reliable signal transmission at frequencies up to 4 GHz. With a durable brass construction and gold-plated contact surfaces, it guarantees long-lasting quality and excellent conductivity. Featuring a snap-fit mating type and solder termination method, installation is efficient and secure. The single-port configuration and PTFE dielectric material further optimize signal integrity. With a professional-grade build and RoHS compliance, this connector assembly is ideal for demanding RF coaxial applications. Elevate your connectivity solutions with this premium component.
