1-1546671-0

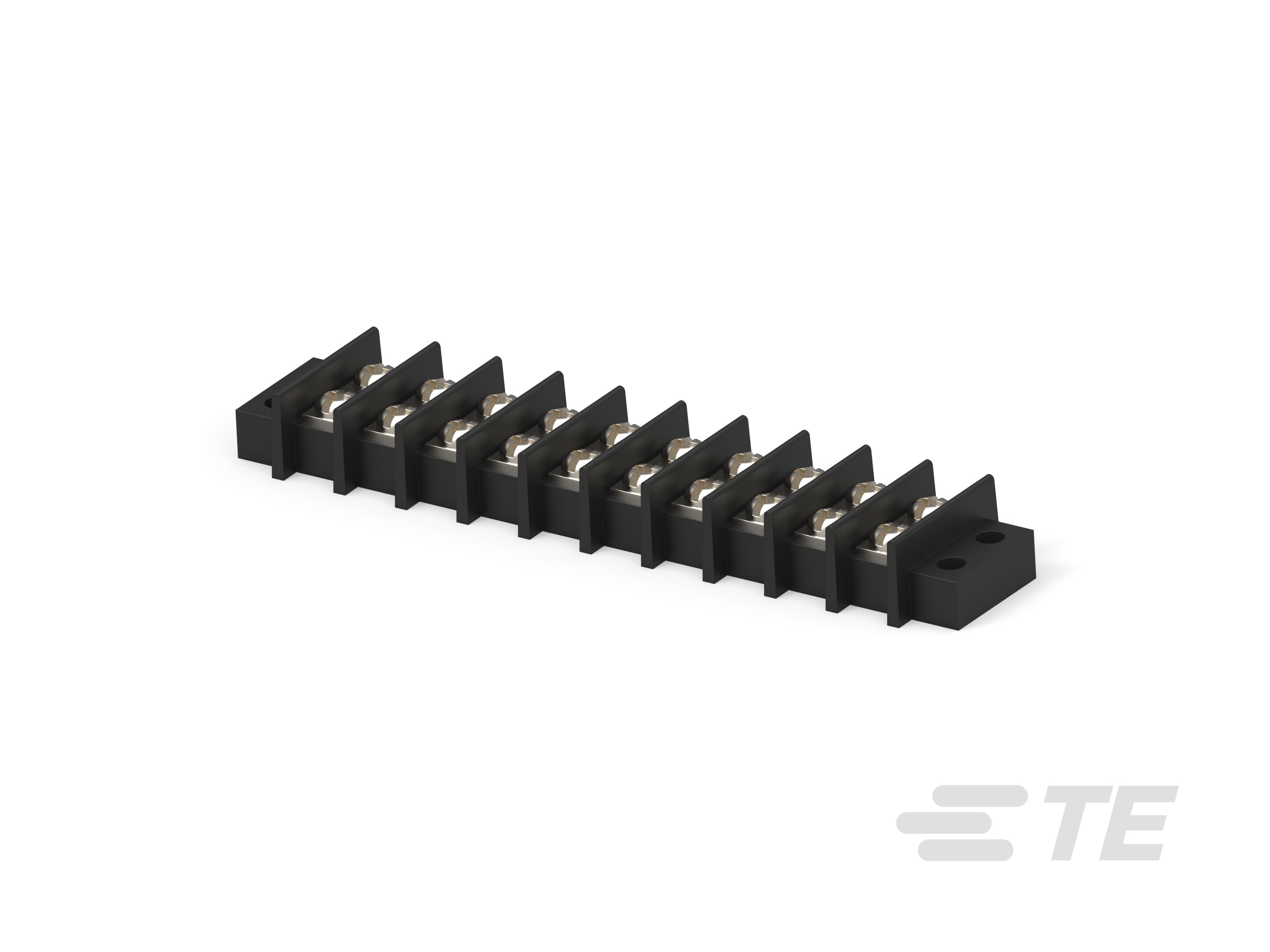

AMP1-1546671-0
Heilind Number:AMP1-1546671-0
Manufacturer:TE Connectivity
Manufacturer Number:1-1546671-0
Datasheet:Packaging Specifications
ECAD Model:
3D Model

Description:

10P.437" DR BARRIER,W/WIR CLMP

More >>

Specifications

AttributeValue
Product Category:
Barrier Terminal Blocks, Strips & Accessories Barrier Terminal Blocks & Strips
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1546671-0
Color:Black
Amperage:25 A
Housing Material:Thermoplastic
Number of Contacts:10
Number of Rows:2
Maximum Operating Temperature:120 °C, 248 °F
Body Orientation:Straight
Pitch:11.1 mm, .438 in
Voltage:300 V
Mount Angle:Vertical
Screw Size:6-32
Package Quantity:50
Number of Levels:1
Number of Positions:10
GPL:A46
Packaging:Carton
Operating Temperature Range:-40 - 120 °C, -40 - 248 °F
Mounting Ears:With
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:H927
Wire Size:22 - 14 AWG, .3 - 2 mm²
Screw Material:Steel
Length:130 mm, 5.12 in
Screw Plating:Nickel
Barrier Strip Style:Dual Barrier
Terminal Plating:Brass
Terminal Plating:Tin
Mounting Insert:Without
Mounting Options:End Mounting Ears
Screw Head Type:Wire Clamp Combo Head
Top Hardware:Wire Clamp Combo Head
Block Style:Flat
Standards Met:UL 94V-0
Material Flammability Standard:UL 94V-0
Part Aliases:1-1546671-0
SKU:AMP1-1546671-0

Detailed Description

Enhance your industrial connectivity with this UL 94V-0 compliant terminal block. Featuring a straight body orientation and vertical mount angle, it ensures efficient power distribution in various applications. With a high amperage rating of 25 A and voltage capacity of 300 V, it guarantees reliable performance. The thermoplastic housing, along with nickel-plated steel screws, offers durability and secure connections. This barrier terminal block, suitable for wire sizes 22-14 AWG, is wave solder capable up to 265°C, making it ideal for harsh operating environments. Its 10 contacts and 11.1mm pitch provide ample space for wire termination, while the tin-plated brass terminals ensure conductivity. RoHS compliant and designed for end mounting with integrated ears, it facilitates easy installation. Trust in this robust terminal block for your critical industrial systems.
