1-1586017-2

AMP1-1586017-2
Heilind Number:AMP1-1586017-2
Manufacturer:TE Connectivity
Manufacturer Number:1-1586017-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

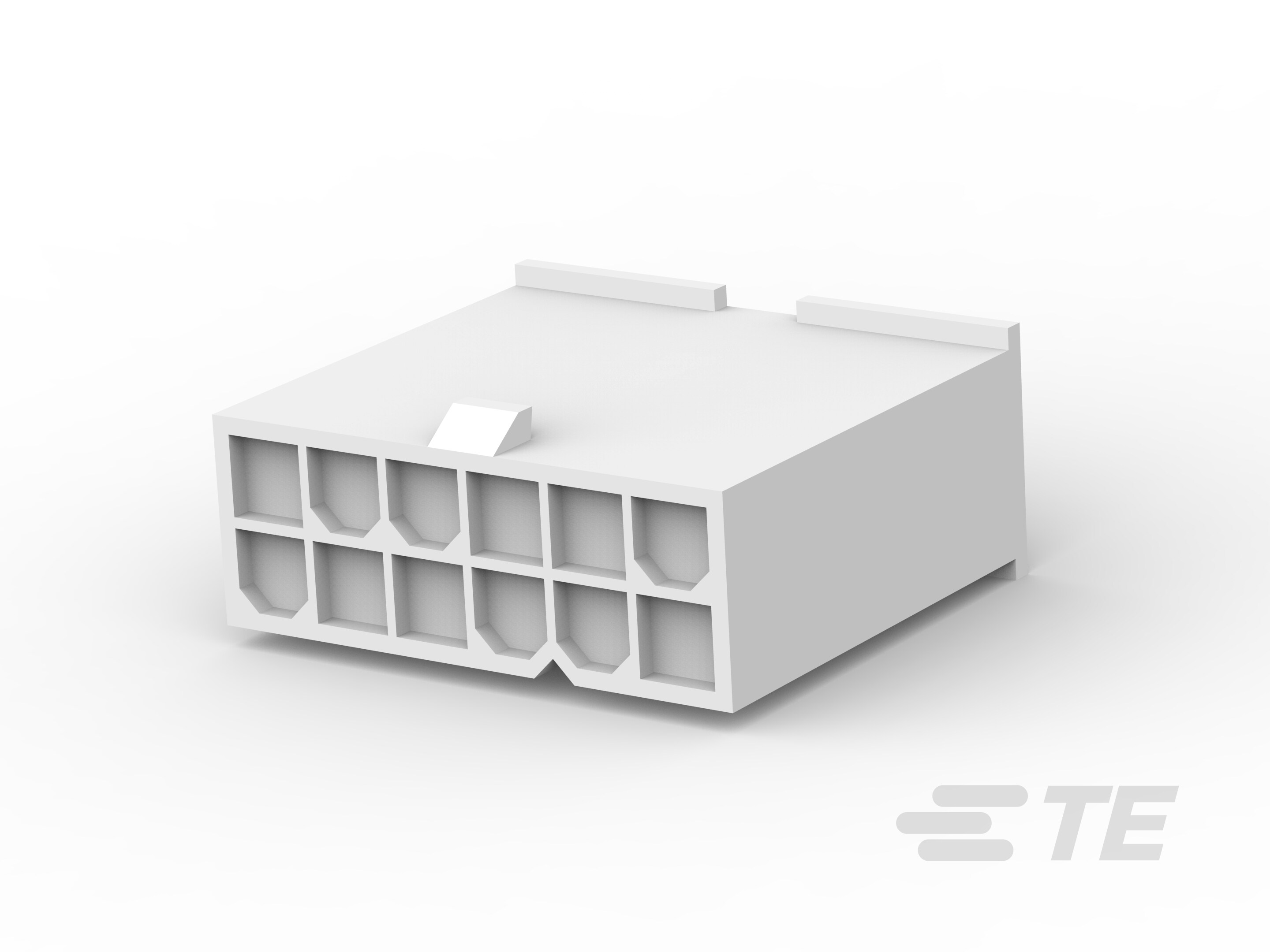

12P FH PLUG VAL-U-LOK V0

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1586017-2
Housing Material:Nylon
Number of Rows:2
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Crimp
Pitch:.165 in, 4.2 mm
Voltage:600 V AC
Contact Type:Pin
Row Spacing:.165 in, 4.2 mm
Package Quantity:500
Cable Type:Discrete Wire
Number of Positions:12
Housing Color:White
GPL:G31
Packaging:Bag
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Connector Height:.378 in, 9.6 mm
Sealable:No
GPL Description:Appliances
Connector and Contact Terminate To:Wire & Cable
Product Code:K924
Contact Layout:Matrix
Connector Length:1.039 in, 26.4 mm
Connector System:Wire to Wire
CSA Agency Certification:208567
Connector Product Type:Housing
ECCN:EAR99
Connector Width:23.8 mm, .937 in
Accepts Wire Insulation Diameter:.047 - .122 in, 1.2 - 3.1 mm
Insertion Force:15 Newton
Contact Retention:Without
Glow Wire Rating:Standard Part - Not Glow Wire
Circuit Identification Feature:With
VDE Tested:No
Connector and Housing Type:Plug
Multiple Contact Types:With
Standards Met:CSA UL
Material Flammability Standard:UL 94V-0
Part Aliases:1-1586017-2
SKU:AMP1-1586017-2

Detailed Description

Enhance power and signal connectivity with this versatile connector housing, designed for a multitude of applications. Featuring two rows with 12 pin contacts, it offers reliable performance in cable mount setups. The durable nylon construction in a sleek white hue meets stringent CSA and UL standards for safety and quality assurance. With a crimp termination method and a pitch of 4.2mm, it ensures secure and stable connections. Operating efficiently in a wide temperature range from -40 to 105°C (-40 to 221°F), it is suitable for various environments. This housing, with a compact design and a height of 9.6mm (.378 in), is perfect for appliances and other electronic devices. With RoHS compliance and packaging in a convenient bag, it is an essential component for your connectivity needs.
