1-1586017-8

AMP1-1586017-8
Heilind Number:AMP1-1586017-8
Manufacturer:TE Connectivity
Manufacturer Number:1-1586017-8
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

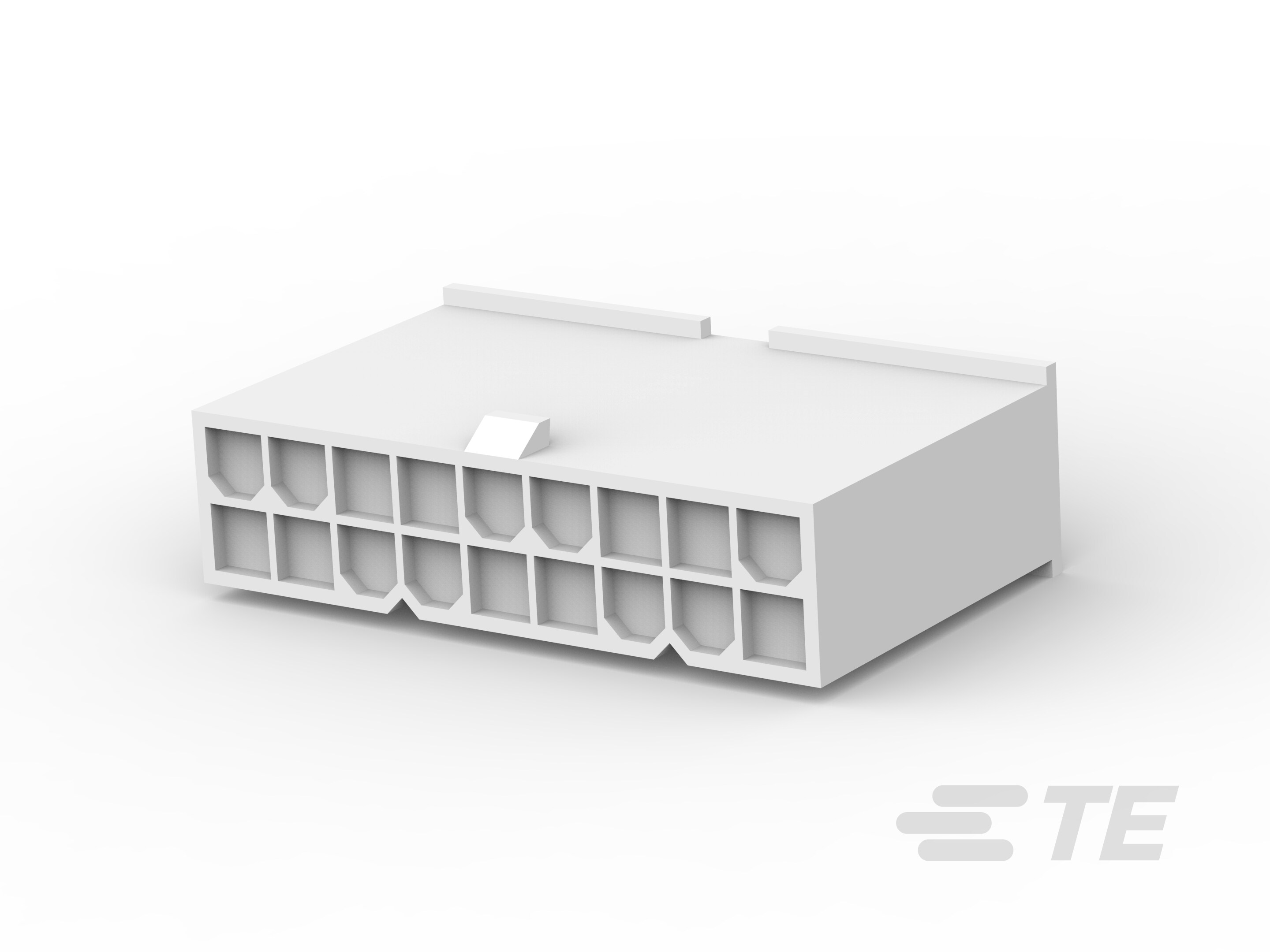

18P FH PLUG VAL-U-LOK V0

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1586017-8
Housing Material:Nylon
Number of Rows:2
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Crimp
Pitch:.165 in, 4.2 mm
Voltage:600 V AC
Contact Type:Pin
Row Spacing:.165 in, 4.2 mm
Package Quantity:500
Cable Type:Discrete Wire
Number of Positions:18
Housing Color:White
GPL:G31
Packaging:Bag
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Connector Height:.378 in, 9.6 mm
Sealable:No
GPL Description:Appliances
Connector and Contact Terminate To:Wire & Cable
Product Code:K924
Contact Layout:Matrix
Connector Length:1.535 in, 39 mm
Connector System:Wire to Wire
CSA Agency Certification:208567
Connector Product Type:Housing
ECCN:EAR99
Connector Width:23.8 mm, .937 in
Accepts Wire Insulation Diameter:.047 - .122 in, 1.2 - 3.1 mm
Insertion Force:15 Newton
Contact Retention:Without
Glow Wire Rating:Standard Part - Not Glow Wire
Circuit Identification Feature:With
VDE Tested:No
Connector and Housing Type:Plug
Multiple Contact Types:With
Standards Met:CSA UL
Material Flammability Standard:UL 94V-0
Part Aliases:1-1586017-8
SKU:AMP1-1586017-8

Detailed Description

Enhance your power and signal connections with our versatile 18-position cable mount connector. Featuring a durable nylon housing in a sleek white finish, this UL and CSA-certified connector ensures safety and reliability. With a pitch of 4.2mm and a voltage rating of 600V AC, it's perfect for a wide range of applications in appliances and beyond. The crimp termination method offers secure connectivity, while the housing's UL 94V-0 flammability standard compliance provides added peace of mind. Operating temperature ranges from -40 to 105°C (-40 to 221°F), making it suitable for various environments. Whether you're working on DIY projects or industrial applications, this connector, with its wire-to-wire system and matrix contact layout, is a must-have component. With RoHS compliance and a package quantity of 500, it's both environmentally friendly and cost-effective. Elevate your wiring setup with this high-quality connector that combines performance, safety, and convenience in one essential component.
