1-1612256-2

AMP1-1612256-2
Heilind Number:AMP1-1612256-2
Manufacturer:TE Connectivity
Manufacturer Number:1-1612256-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

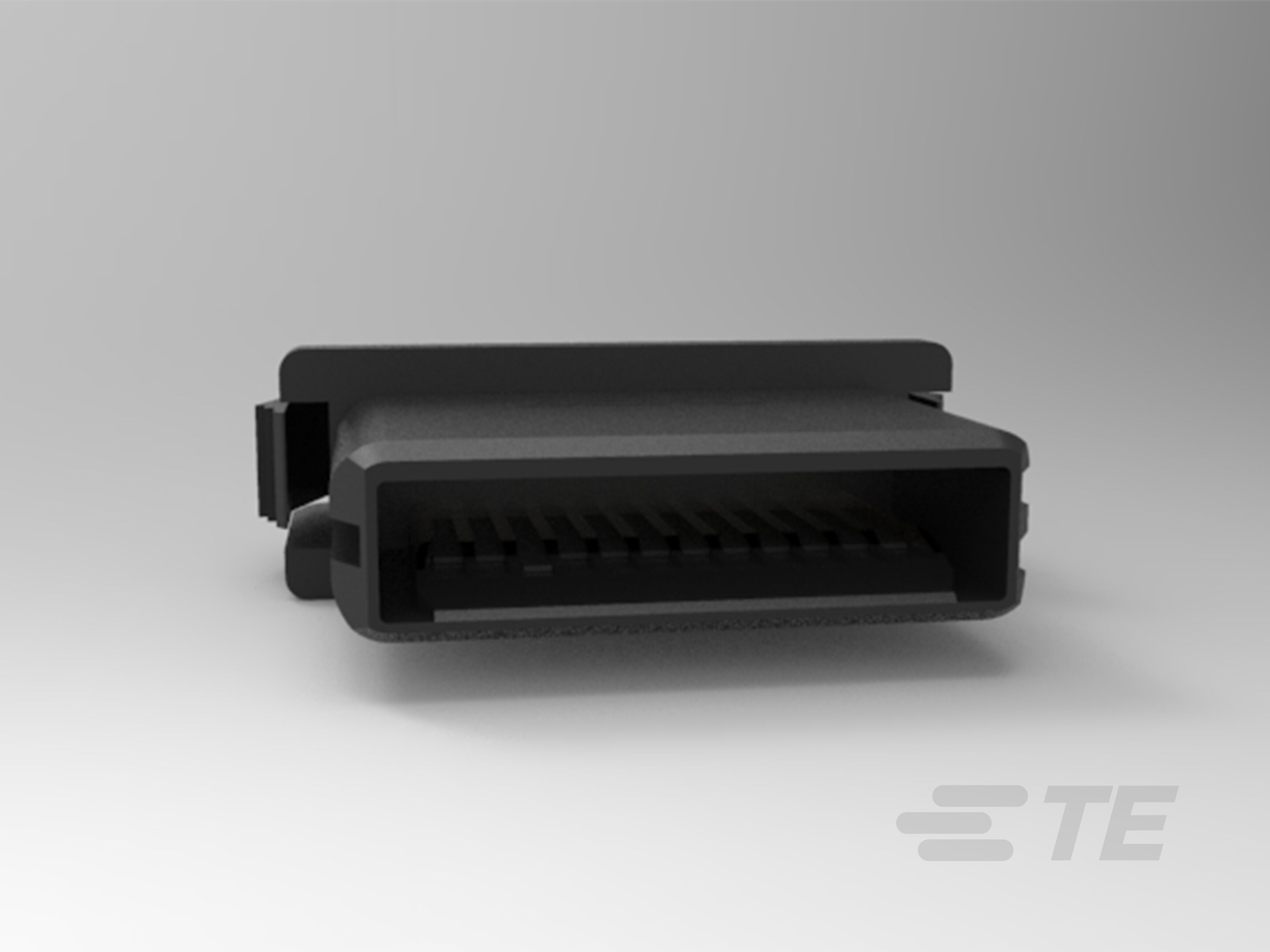

PLUG ASSY 12P ,MINI CT DC DRAW

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Socket Receptacles
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1612256-2
Color:Black
Amperage:1.5 A
Connector Type:Housing
Gender:Plug
Housing Material:Polybutylene Terephthalate - GF
Number of Rows:1
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Crimp/IDC
Contact Material:Copper Alloy
Pitch:.059 in, 1.5 mm
Voltage:50 V AC/DC
Contact Type:Pin
Strain Relief:No Strain Relief
Package Quantity:49
Number of Positions:12
Housing Color:Black
GPL:398
Mating Retention Type:Latch
Packaging:Box & Tray, Tray
Operating Temperature Range:-22 - 221 °F, -30 - 105 °C
Circuit Application:Power & Signal
Panel Mount:Without
PCB Retention:Without
Connector Height:10.6 mm, .417 in
Sealable:No
Mating Alignment:With
Mating Alignment Type:Polarization
GPL Description:Data and Devices
Connector and Contact Terminate To:Wire & Cable
Product Code:1817
Drawer Style:Mini CT, Snap-Fit
Contact Layout:Inline
Connector Length:1.242 in, 31.6 mm
Connector System:Wire to Wire
Connector Product Type:Connector
Mating Retention:With
Mating Connector Lock:Without
Housing Configuration:Both Ends Closed
Material Flammability Standard:UL 94V-0
Part Aliases:1-1612256-2
SKU:AMP1-1612256-2

Detailed Description

Easily assemble power and signal connections with this PLUG ASSY 12P, featuring a compact Mini CT DC DRAW design in sleek black. Ideal for various applications, it offers a durable Polybutylene Terephthalate - GF housing and Copper Alloy contacts for reliable performance. With a 1.5A amperage rating and 50V AC/DC voltage, it ensures efficient power transmission. The Cable Mount (Free-Hanging) installation method with Crimp/IDC termination allows for convenient setup. Meeting UL 94V-0 flammability standards and operating in a wide temperature range from -30 to 105 °C (-22 to 221 °F), this connector guarantees safety and functionality. Its 1.5mm pitch, Pin contact type, and 12 positions make it suitable for various circuit applications. Complete with Latch mating retention, Tray packaging, and RoHS compliance, it offers ease of use and environmental responsibility. Perfect for Wire to Wire connections in electronics and telecommunications, this connector is a versatile solution for your connectivity needs.
