1-1612257-4

AMP1-1612257-4
Heilind Number:AMP1-1612257-4
Manufacturer:TE Connectivity
Manufacturer Number:1-1612257-4
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

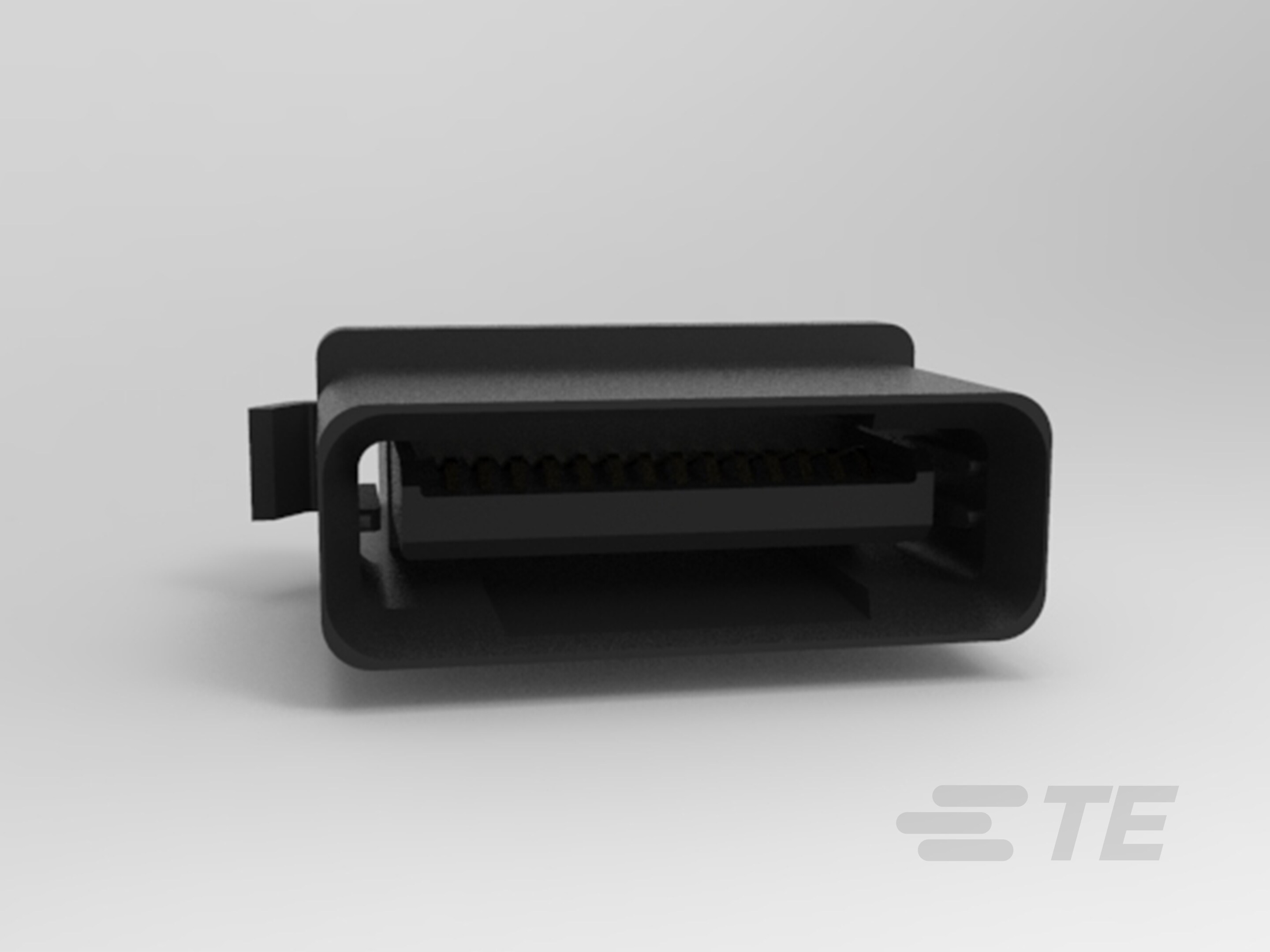

REC ASSY 14P ,MINI CT DC DRAWE

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Socket Receptacles
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1612257-4
Color:Black
Amperage:1.5 A
Connector Type:Housing
Gender:Receptacle
Housing Material:Polybutylene Terephthalate - GF
Number of Contacts:14
Number of Rows:1
Mount Type:Panel
Termination Method:Crimp/IDC
Contact Material:Copper Alloy
Maximum Operating Temperature:105 °C, 221 °F
Overall Height:14.8
Overall Length:1.51698
Pitch:.059 in, 1.5 mm
Voltage:50 V AC/DC
Contact Type:Socket
Strain Relief:No Strain Relief
Package Quantity:49
Number of Positions:14
Housing Color:Black
GPL:398
Mating Retention Type:Latch
Packaging:Box & Tray, Tray
Operating Temperature Range:-22 - 221 °F, -30 - 105 °C
Panel Mount:Without
PCB Retention:Without
Connector Height:14.8 mm, .582 in
Sealable:No
Mating Alignment:With
Mating Alignment Type:Polarization
GPL Description:Data and Devices
Product Code:1817
Drawer Style:Mini CT, Snap-Fit
Contact Layout:Inline
Connector Length:1.517 in, 38.6 mm
Connector System:Wire to Panel
Connector Product Type:Connector
Mating Retention:With
Mating Connector Lock:Without
Housing Configuration:Both Ends Closed
Material Flammability Standard:UL 94V-0
Part Aliases:1-1612257-4
SKU:AMP1-1612257-4

Detailed Description

Introducing the REC ASSY 14P Mini CT DC DRAWER, a compact and efficient solution for your connectivity needs. This black receptacle assembly features 14 contacts in a single row, making it ideal for space-saving applications. Constructed with durable Polybutylene Terephthalate housing material, it ensures reliable performance in various environments. With a crimp/IDC termination method and a maximum operating temperature of 105°C, this connector guarantees secure and stable connections. Its socket contact type and Latch mating retention offer convenience and ease of use. Whether you're working on a panel or PCB installation, this connector, compliant with UL 94V-0 standards, is a versatile choice. Perfect for data and device applications, it's a reliable component for your projects.
