| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1-1617110-0 |
| Mount Type: | Printed Circuit Board |
| Coil Resistance: | 800 Ω |
| Coil Voltage: | 12 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | PC Pin(s) |
| Contact Current Rating: | 1 A |
| Part Aliases: | M28776/7-004M |
| SKU: | AMP1-1617110-0 |
1-1617110-0
| Heilind Number: | AMP1-1617110-0 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1-1617110-0 |
| ECAD Model: | |
Specifications
Detailed Description

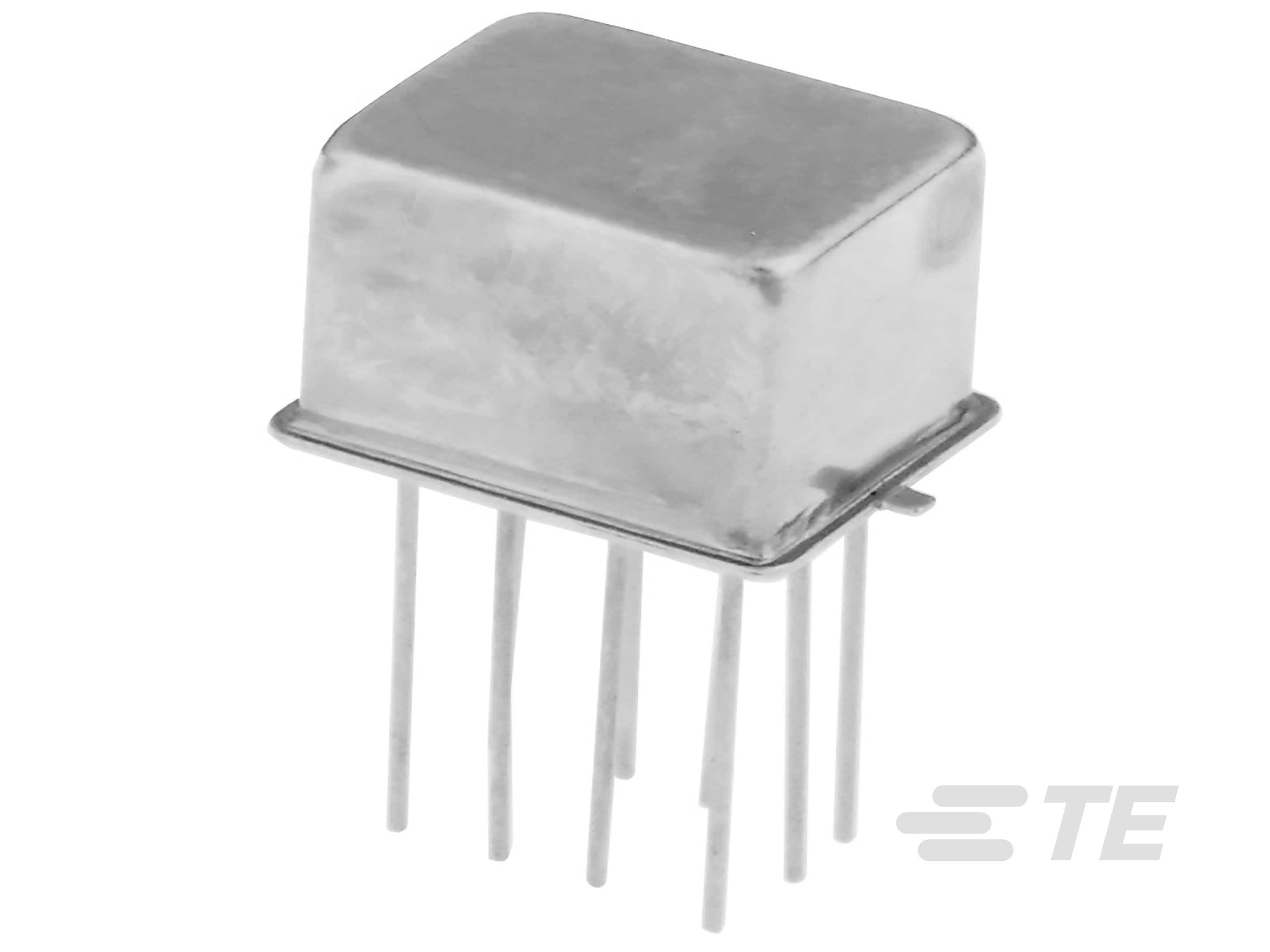

Elevate your circuit board performance with the JMGST-12M relay, also known as the M28776/7-004M. Designed for precision and reliability, this DPDT relay features 2 Form C, 2 C/O contact configuration, making it ideal for advanced signal and communication applications. With a coil resistance of 800 Ω and a coil voltage of 12 VDC, it ensures efficient operation. The termination type of PC Pin(s) simplifies installation, while the maximum switching voltage of 28 VDC and contact current rating of 1 A guarantee optimal functionality. This high-quality relay is a must-have for any project requiring seamless relay operation. Please note that this product is not RoHS compliant.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 1-1617110-0 |
| Other Names: | M28776/7-004M |
