| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1-1617110-2 |
| Mount Type: | Printed Circuit Board |
| Coil Resistance: | 1600 Ω |
| Coil Voltage: | 18 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Termination Type: | Long Leads |
| Contact Current Rating: | 1 A |
| Part Aliases: | M28776/7-005M |
| SKU: | AMP1-1617110-2 |
1-1617110-2
| Heilind Number: | AMP1-1617110-2 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1-1617110-2 |
| ECAD Model: | |
Specifications
Detailed Description

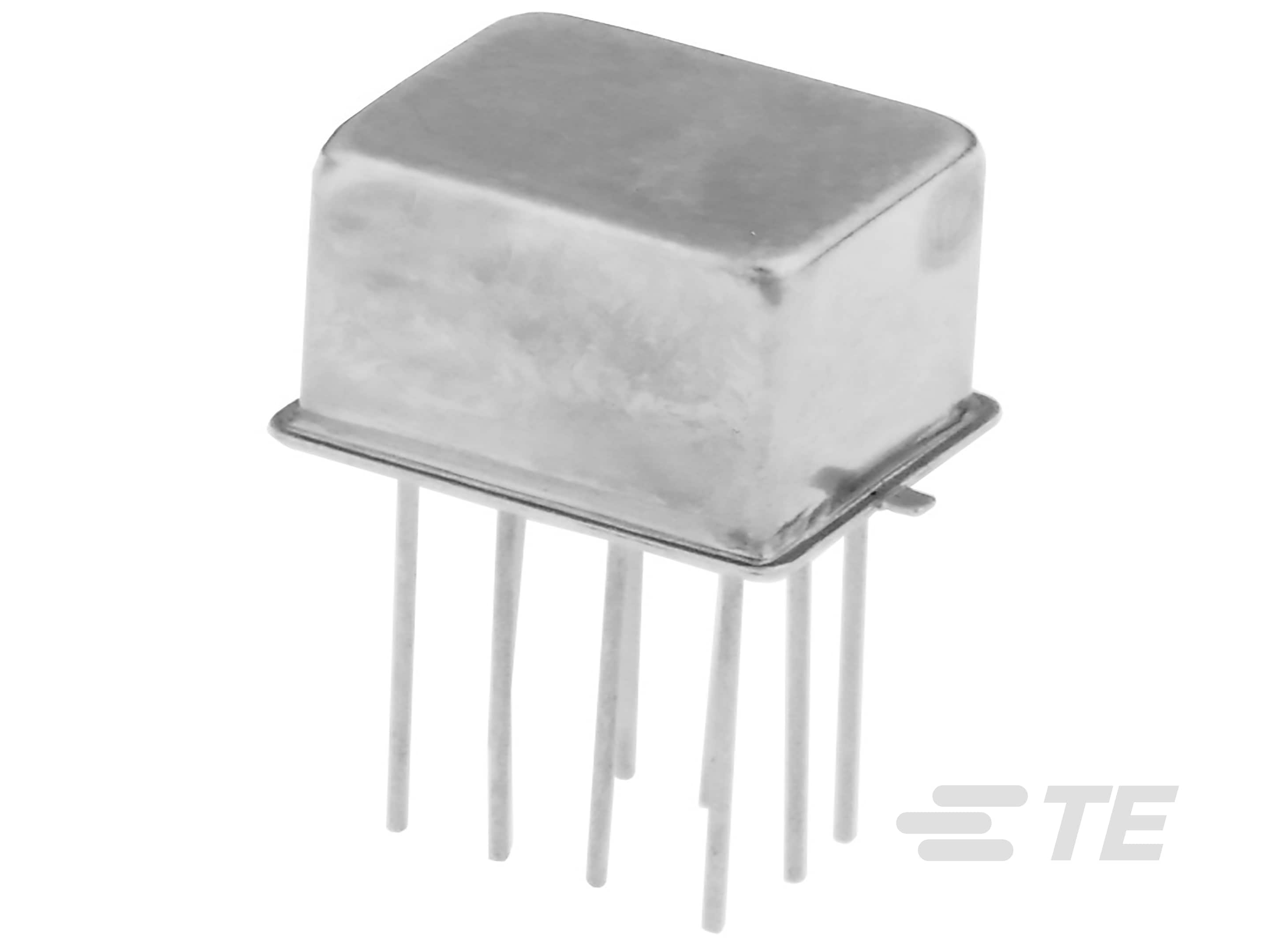

The JMGST-18M Signal Relay, also known as M28776/7-005M, is a high-performance component designed for printed circuit board applications. With a coil resistance of 1600 Ω and a coil voltage of 18 VDC, it offers reliable operation in various electronic systems. Featuring a 2 Form C contact configuration (DPDT, 2 C/O), this relay provides versatile switching capabilities. Equipped with long leads for easy termination, it ensures secure connectivity in assemblies. With a contact current rating of 1 A, it is suitable for signal and communication relay applications. While not RoHS compliant, its performance and durability make it a valuable component in electronic projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 1-1617110-2 |
| Other Names: | M28776/7-005M |
