| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1-1617110-8 |
| Mount Type: | Printed Circuit Board |
| Coil Resistance: | 100 Ω |
| Coil Voltage: | 5 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | PC Pin(s) |
| Contact Current Rating: | 1 A |
| Part Aliases: | M28776/7-001M |
| SKU: | AMP1-1617110-8 |
1-1617110-8
| Heilind Number: | AMP1-1617110-8 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1-1617110-8 |
| ECAD Model: | |
Specifications
Detailed Description

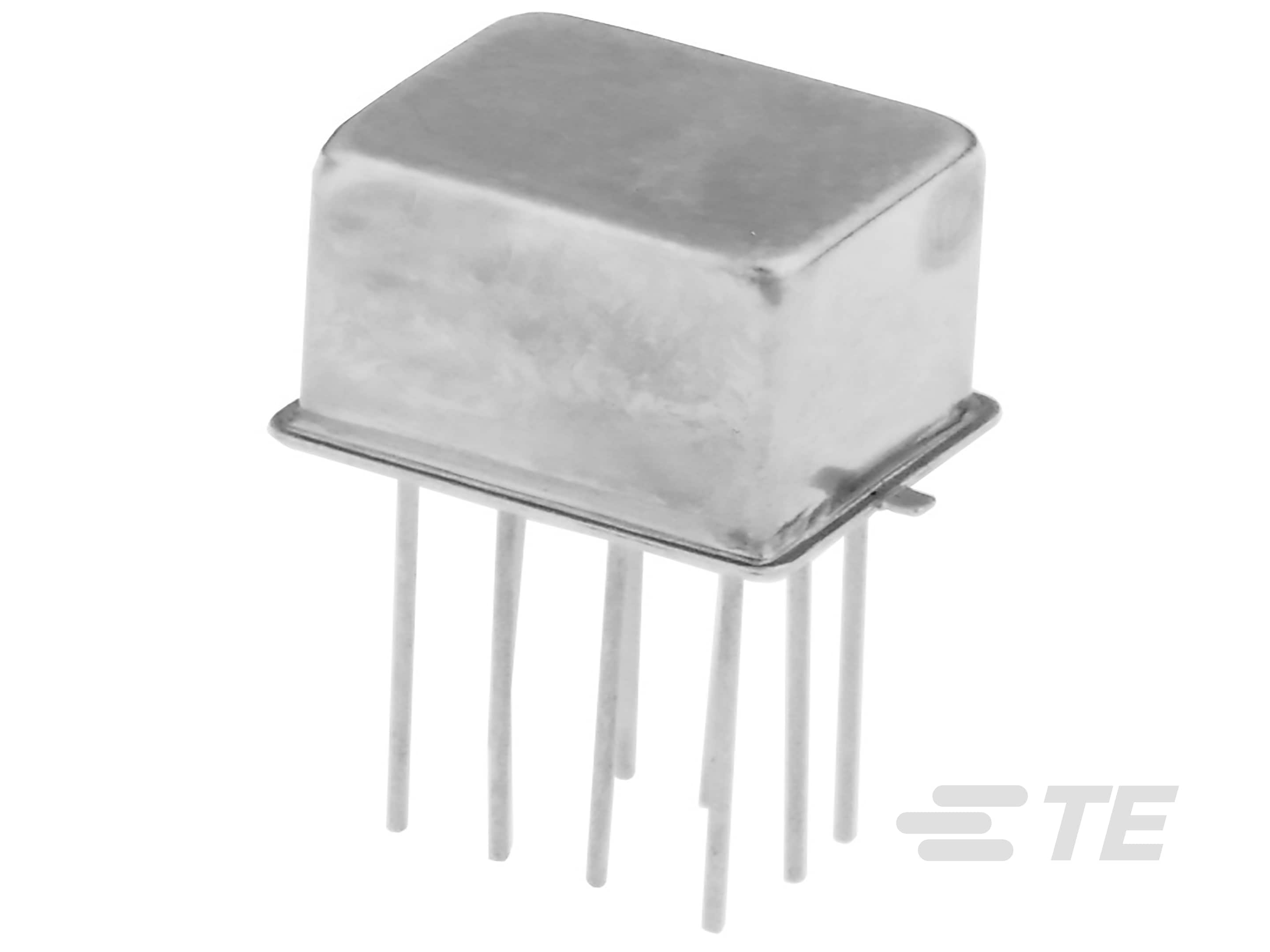

Elevate your circuit board's capabilities with the JMGST-5M, a high-performance relay designed for seamless signal and communication relay applications. Featuring a coil resistance of 100 Ω and a low coil voltage of 5 VDC, this relay offers efficient power management. Its 2 Form C, DPDT contact configuration with 2 C/O contacts ensures reliable connectivity, while the maximum switching voltage of 28 VDC guarantees optimal performance. With PC Pin termination and a contact current rating of 1 A, installation and operation are a breeze. Crafted for durability and functionality, the JMGST-5M is the ideal choice for your electronic relay needs. Please note, this product is not RoHS compliant.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 1-1617110-8 |
| Other Names: | M28776/7-001M |
