| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1-1617534-6 |
| Mount Type: | Plain Case |
| Coil Resistance: | 40 Ω |
| Coil Voltage: | 6 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | Socket Pins |
| Contact Current Rating: | 2 A |
| Input Voltage: | 6 VDC |
| Part Aliases: | M39016/6-246L |
| SKU: | AMP1-1617534-6 |
1-1617534-6
| Heilind Number: | AMP1-1617534-6 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1-1617534-6 |
| ECAD Model: | |
Specifications
Detailed Description

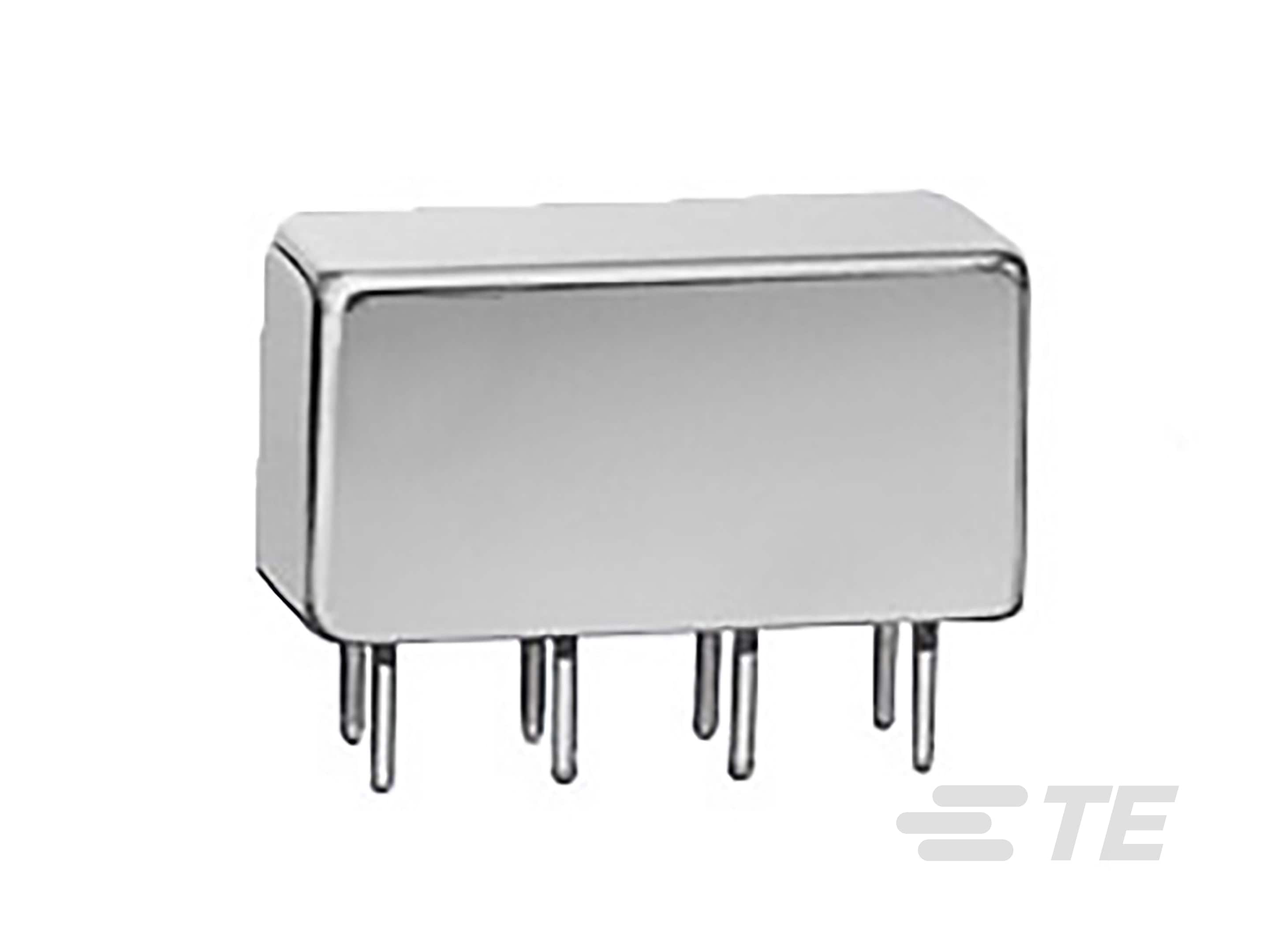

The HFW1201F16 relay, equivalent to the M39016/6-246L model, offers reliable switching performance in a plain case design. Featuring a DPDT contact configuration with 2 C/O contacts, it is capable of handling up to 2 A of current at a maximum switching voltage of 28 VDC. With a coil resistance of 40 Ω and a coil voltage requirement of 6 VDC, this relay is suitable for signal and communication applications. Terminated with socket pins for easy installation, it ensures efficient connectivity in electronic circuits. While not RoHS compliant, it remains a dependable choice for various relay needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 1-1617534-6 |
| Other Names: | M39016/6-246L |
