1-1971817-7

AMP1-1971817-7
Heilind Number:AMP1-1971817-7
Manufacturer:TE Connectivity
Manufacturer Number:1-1971817-7
Datasheet:VDE Agency Approval Document
ECAD Model:
3D Model

Description:

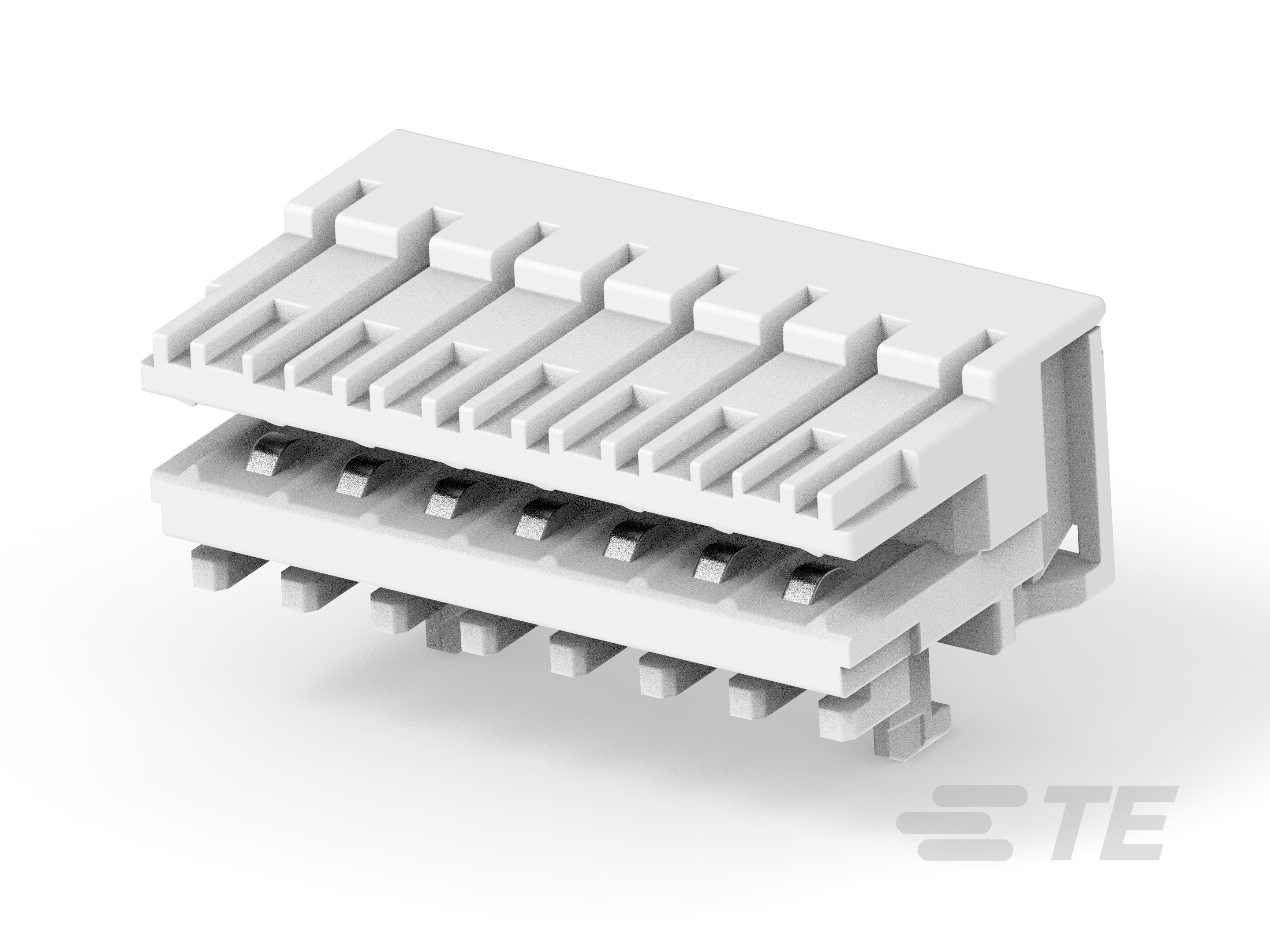

7P,RAST 2.5 Tab Header,Ex- Locking,THV

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1971817-7
Amperage:6 A
Housing Material:6/6 Nylon GF, Nylon
Number of Contacts:7
Number of Rows:1
Mount Type:Board Mount
Termination Method:Through Hole - Solder
Contact Material:Copper Alloy
Body Orientation:Straight
Pitch:.098 in, 2.5 mm
Voltage:50 V AC
Contact Type:Tab
Package Quantity:135
Contact Amperage:2 A
Number of Positions:7
Housing Color:Natural
Mount Orientation:Vertical
GPL:405
Packaging:Box & Carton
Operating Temperature Range:-40 - 120 °C, -40 - 248 °F
Circuit Application:Signal
Contact Mating Area Plating:Tin
Contact Mating Area Plating Thickness:1.27 µm, 50.8 µin
PCB Retention:Without
PCB Contact Termination Area Plating:Tin
Connector Height:15.5 mm, .61 in
Sealable:No
GPL Description:Appliances
Connector and Contact Terminate To:Printed Circuit Board
Product Code:J567
Connector Length:20.1 mm, .79 in
Connector System:Wire to Board
ECCN:EAR99
Contact Mating Area Plating Finish:Matte
Contact Shape:Square
PCB Contact Termination Area Plating Finish:Matte
Mating Retention:With
PCB Mount Alignment:With
Termination Post Tail Length:.11 in, 2.9 mm
Header Type:Standard
Connector Assembly Type:PCB Mount Header
PCB Contact Termination Area Plating Thickness:149.6 µin, 3.8 µm
Contact Retention:Without
Material Flammability Standard:UL 94V-0
Part Aliases:1-1971817-7
SKU:AMP1-1971817-7

Detailed Description

Enhance your circuit connections with this 6A nylon board mount header, featuring seven contacts in a single row. Crafted with durable 6/6 Nylon GF housing, it ensures reliable performance in diverse applications. The through-hole solder termination method guarantees secure attachment to your PCB, while the straight body orientation and vertical mount orientation offer flexibility in assembly. With a pitch of 2.5mm and a voltage rating of 50V AC, this header is suitable for signal transmission in various electronic devices. Its UL 94V-0 flammability standard compliance ensures safety, while the tin plating on the contact mating area provides efficient conductivity. RoHS compliant and suitable for appliances, this PCB connector is a dependable choice for your projects.
