1-284042-0

AMP1-284042-0
Heilind Number:AMP1-284042-0
Manufacturer:TE Connectivity
Manufacturer Number:1-284042-0
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

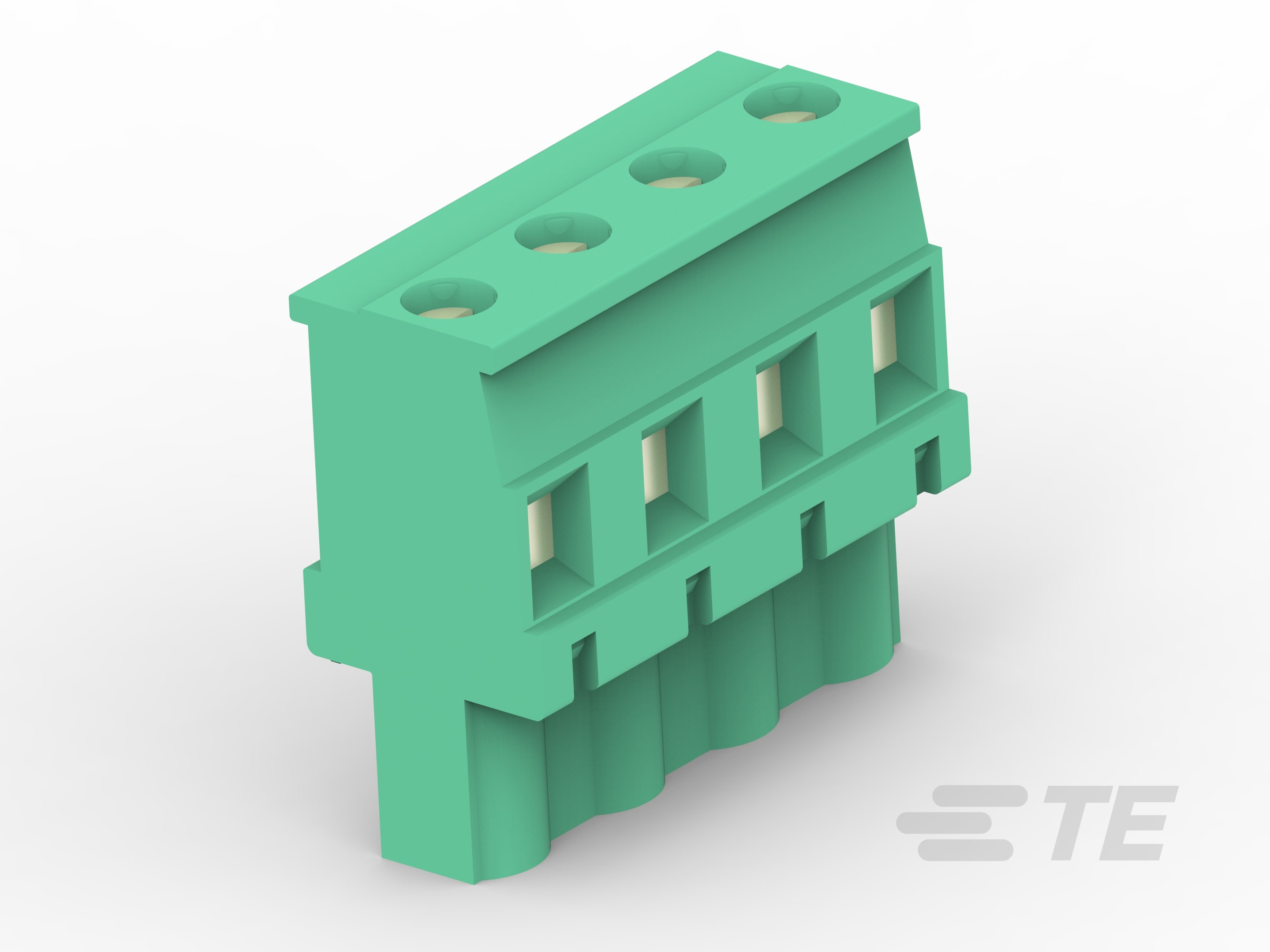

TERMI-BLOK VERTICAL PLUG STACK

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-284042-0
Amperage:15 A
Gender:Plug
Housing Material:PA 6/6
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.295 in, 7.5 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:Stacking Plug
Screw Size:M3
Contact Amperage:15 A
Number of Positions:10
Housing Color:Green
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
Connector and Contact Terminate To:Wire & Cable
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
Screw Plating:Nickel
Entry Angle:Side
Interlock:Without
Stacked Levels:Without
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:1-284042-0
SKU:AMP1-284042-0

Detailed Description

Easily connect power and signal wires with our TERMI-BLOK VERTICAL PLUG STACK. This plug, suitable for industrial settings, features a stacking design, allowing for efficient side stackable configuration. With a housing made of durable PA 6/6 material in a vibrant green color, it offers reliable performance in a wide operating temperature range. Each package contains 50 units, each with 10 positions for wires ranging from 12 to 30 AWG. The phosphor bronze contacts with tin plating ensure secure connections, while the M3 brass screws with nickel plating provide sturdy mounting. RoHS compliant and suitable for wire-to-board applications, this connector is a versatile solution for various projects.
