1-284391-8

AMP1-284391-8
Heilind Number:AMP1-284391-8
Manufacturer:TE Connectivity
Manufacturer Number:1-284391-8
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

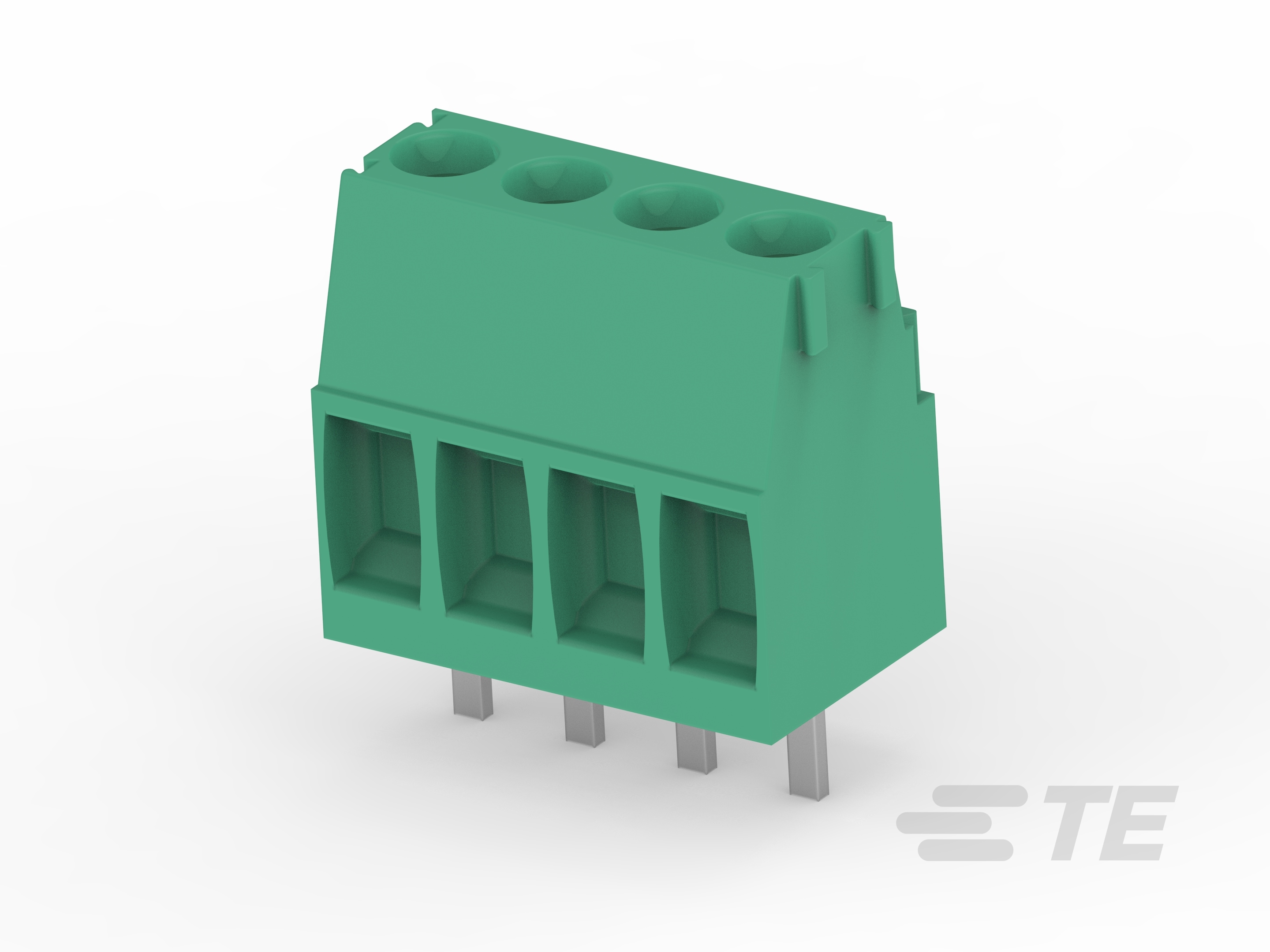

TERMI-BLOK PCB SIDE ENTRY STAC

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-284391-8
Amperage:12 A
Gender:Header
Housing Material:PA 6/6
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.138 in, 3.5 mm
Voltage:300 V AC
Mount Angle:Straight
Block Type:Stacking w/interlock
Screw Size:M3
Package Quantity:50
Contact Amperage:12 A
Number of Positions:18
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Packaging:Box
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Without
Threaded Flange:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:1-284391-8
SKU:AMP1-284391-8

Detailed Description

Introducing the TERMI-BLOK PCB SIDE ENTRY STAC, a high-performance connector designed for power and signal applications. With a straight mount angle and a housing made of durable PA 6/6 material in a sleek green color, this connector offers reliability in various operating environments, with an impressive operating temperature range from -40 to 110°C (-40 to 230°F). Featuring a single row design with 18 positions, it facilitates efficient board mount assembly with a 3.5mm pitch. The contact material is brass with tin plating, ensuring excellent conductivity, while the screw size is M3 for secure installation. This connector is ideal for wire-to-board connections, accommodating wire sizes ranging from 0.05 to 2mm² (14-30 AWG). Each package contains 50 units, making it a cost-effective solution for industrial applications. With RoHS compliance, you can trust in the sustainability and quality of this product. Elevate your connectivity with the TERMI-BLOK PCB SIDE ENTRY STAC.
