1-796645-1

AMP1-796645-1
Heilind Number:AMP1-796645-1
Manufacturer:TE Connectivity
Manufacturer Number:1-796645-1
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

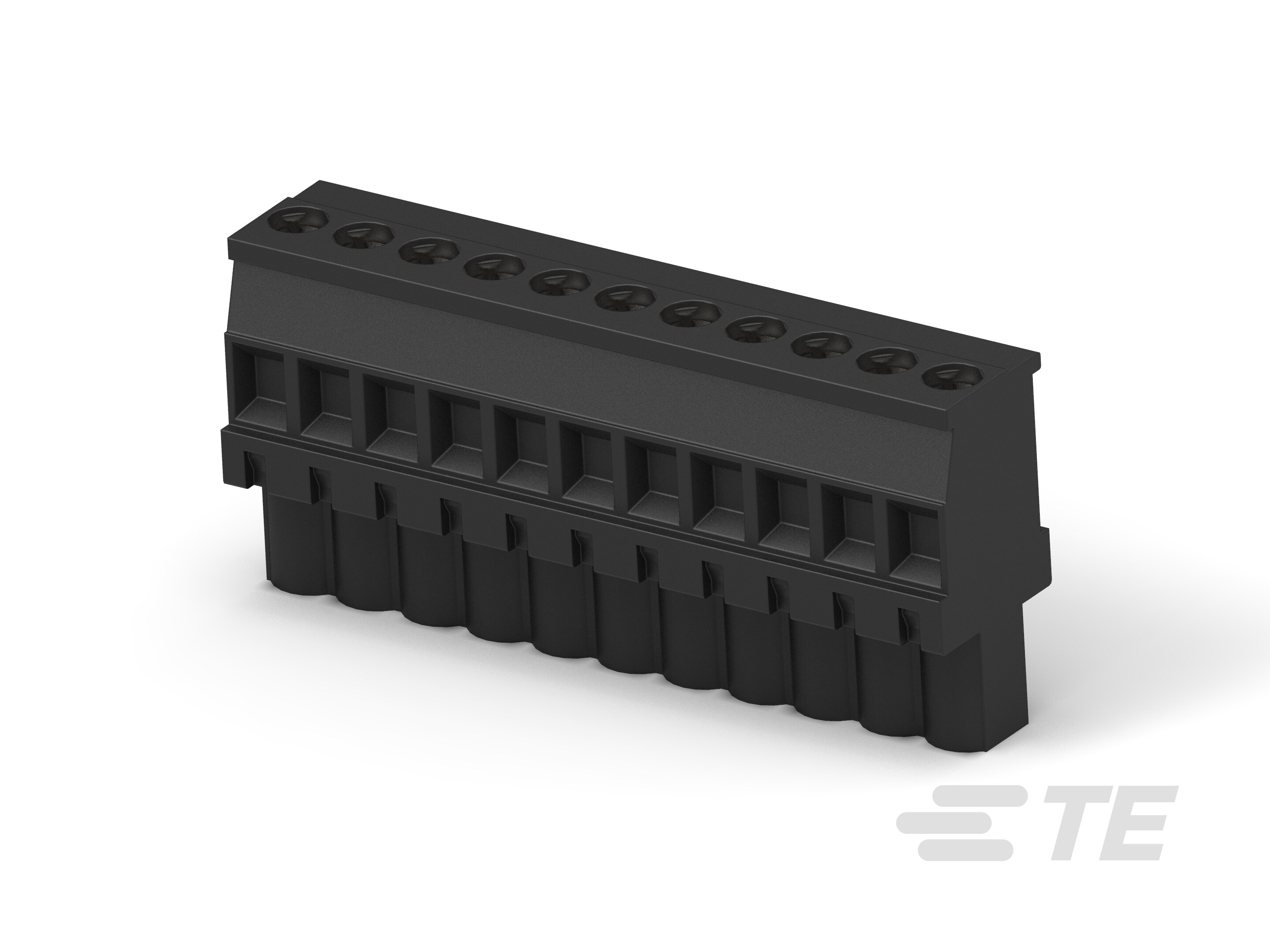

11POS 5.0MM CE R/A HDR,TRM BLK

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-796645-1
Amperage:15 A
Gender:Header
Housing Material:PA 6/6
Number of Rows:1
Mount Type:Board Mount
Contact Material:Copper Alloy
Pitch:.197 in, 5 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:PCB Mount
Package Quantity:100
Contact Amperage:15 A
Number of Positions:11
Housing Color:Black
GPL:124
Tail Length:.138 in, 3.5 mm
Packaging:Box
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
ECCN:EAR99
Header Type:Shrouded
Interlock:Without
Closed End:With
Threaded Flange:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:1-796645-1
SKU:AMP1-796645-1

Detailed Description

Easily integrate power and signal connections with this 15 A right angle header. Designed for board mount installation, it features a durable PA 6/6 housing in black, ideal for industrial applications. With 11 positions and a pitch of 5mm, it offers reliable connectivity for a range of wire sizes (12-30 AWG). Operating in temperatures from -40 to 105°C, this header is RoHS compliant and suitable for various environments. Each package includes 100 units, making it a convenient choice for assembly projects.
