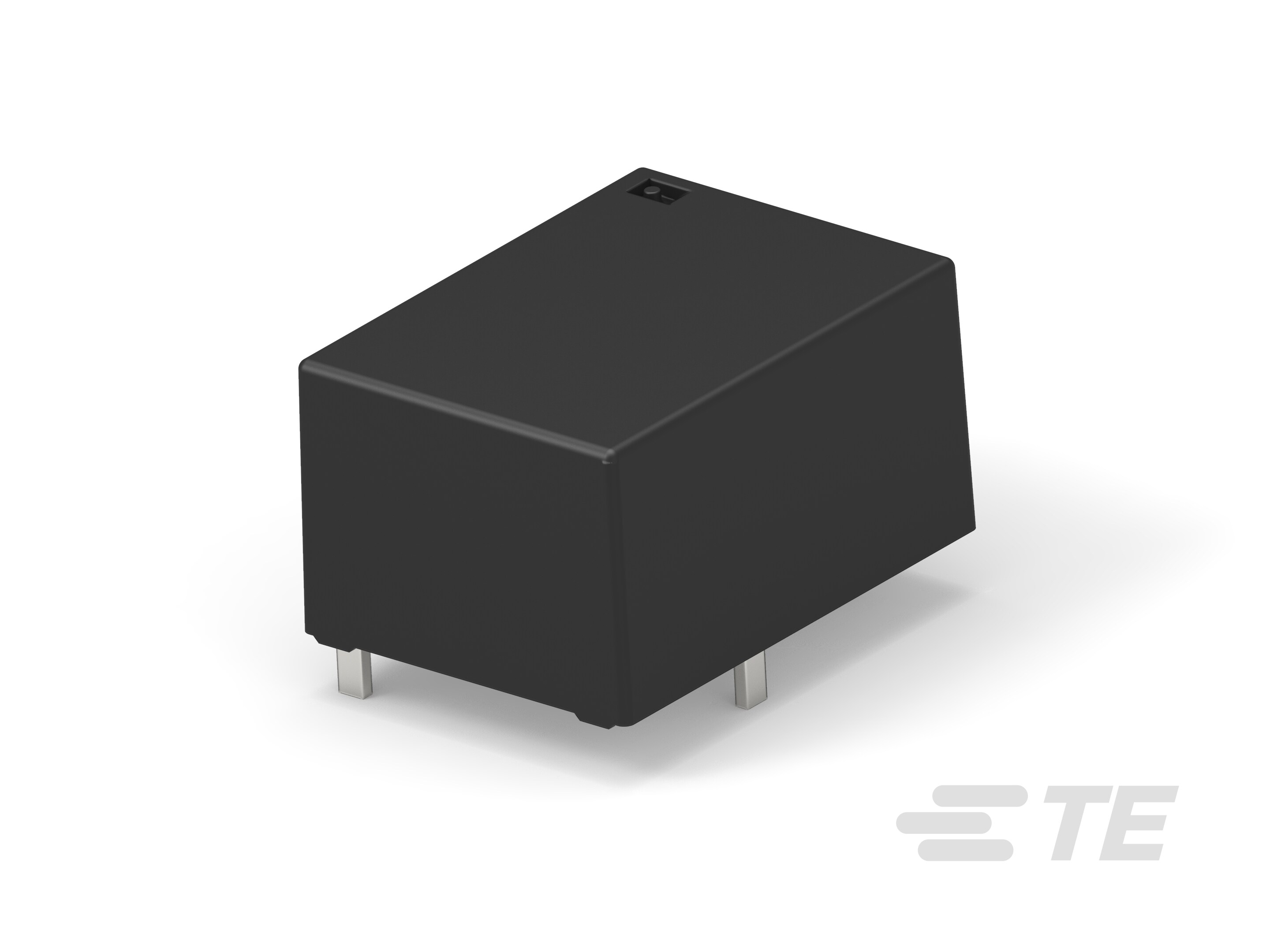

1558660-7

Heilind Number:	AMP1558660-7
Manufacturer:	TE Connectivity
Manufacturer Number:	1558660-7
Datasheet:	Agency Approval Document (CQC)
ECAD Model:

Description:

T9GV5L14-24

More >>

Specifications

Attribute	Value
Product Category:	Relays Power Relays
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 1558660-7
Amperage:	20 A
Mount Type:	Printed Circuit Board
Contact Material:	Silver Tin Oxide (AgSnO)
Number of Poles:	1
Coil Resistance:	640 Ω
Coil Voltage:	24 VDC
Maximum Switching Voltage:	480 VAC
Termination Type:	Printed Circuit Terminals
Contact Voltage:	250 VAC
Operating Temperature Range:	-40 - 105 °C
Contact Arrangement:	1 Form C (CO)
SKU:	AMP1558660-7

Detailed Description

Enhance your circuit board's functionality with this high-performance power relay. With a durable silver tin oxide contact material and a maximum switching voltage of 480 VAC, it ensures reliable operation even in high-power applications. The 20A amperage rating and 24VDC coil voltage make it suitable for a wide range of industrial and HVAC systems. Featuring a compact design and printed circuit terminals for easy installation, this relay is a versatile solution for your power control needs. From its wide operating temperature range of -40 to 105 °C to its RoHS compliance, it's designed to meet the highest quality standards. Trust in this relay for efficient and dependable performance in your electronic projects.
